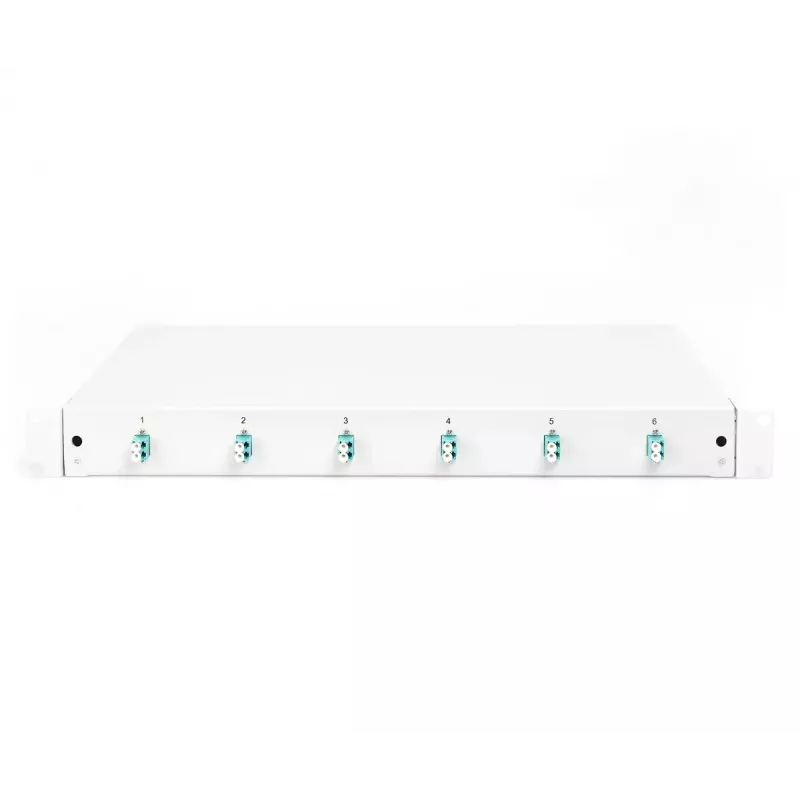

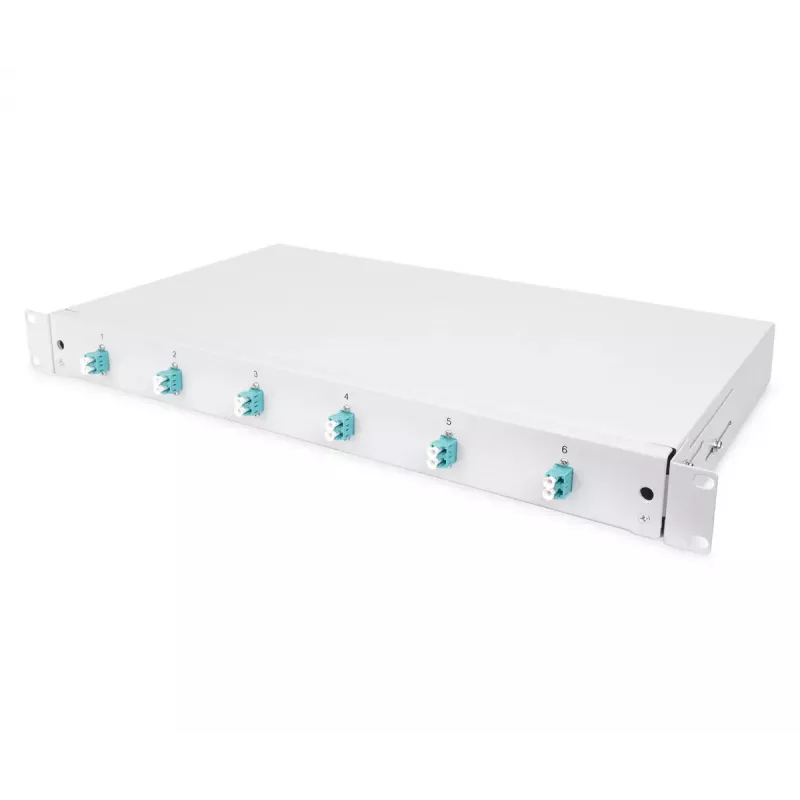

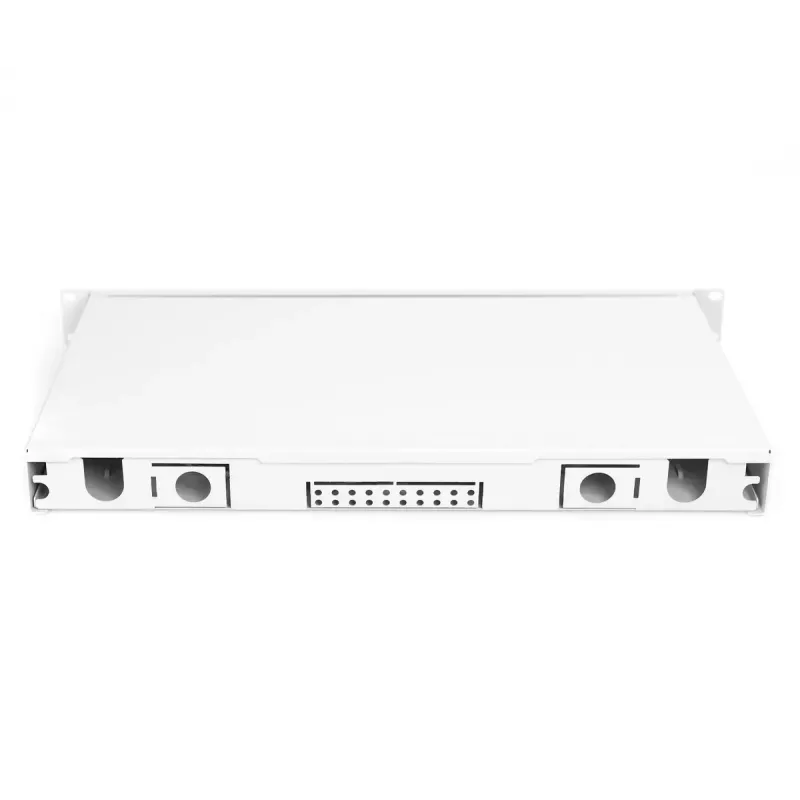

Caja de empalme de fibra óptica Digitus DN-96330/3

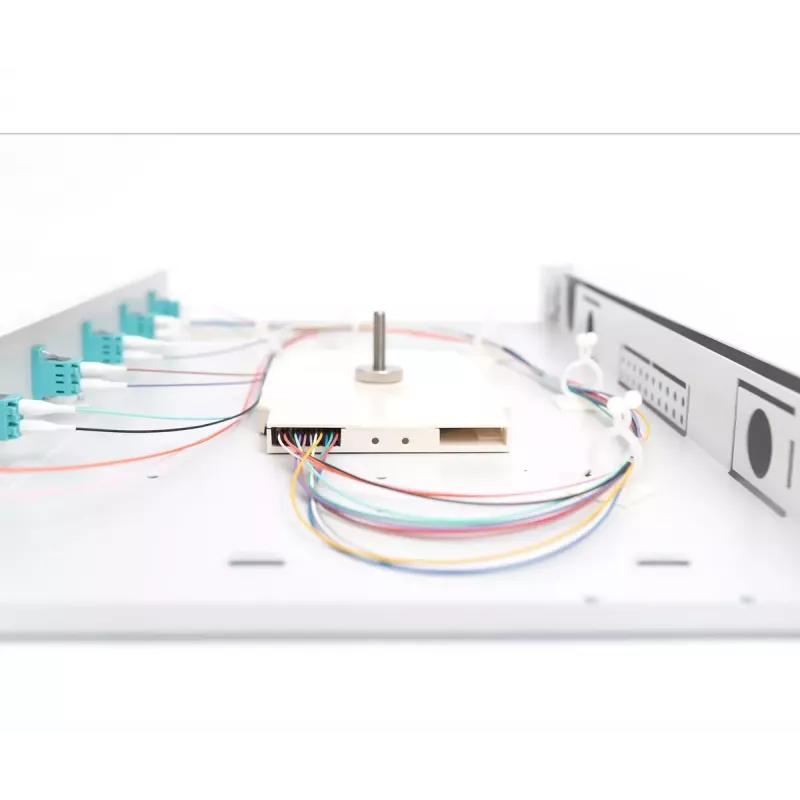

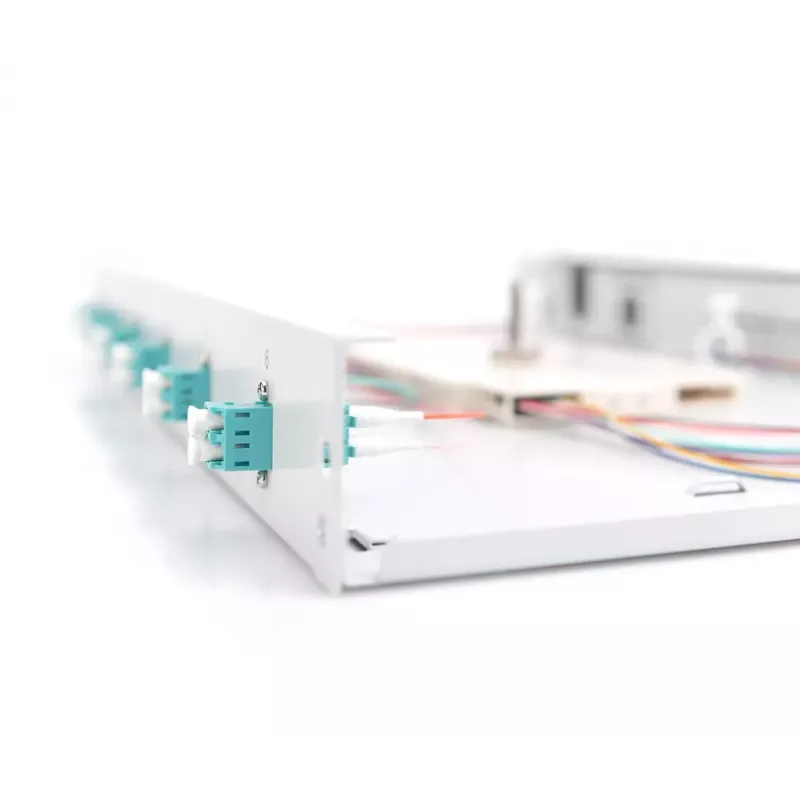

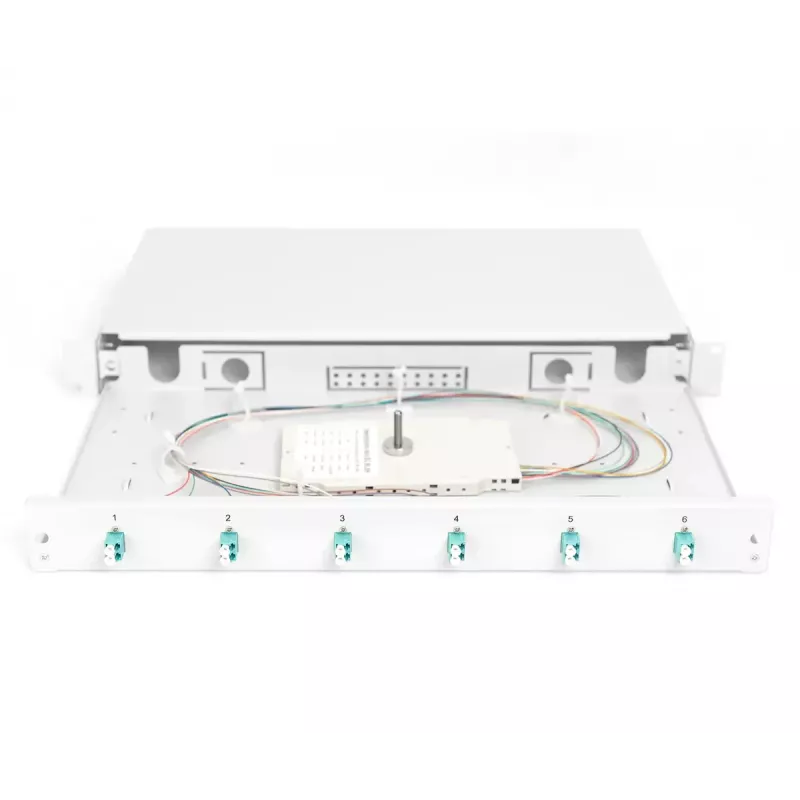

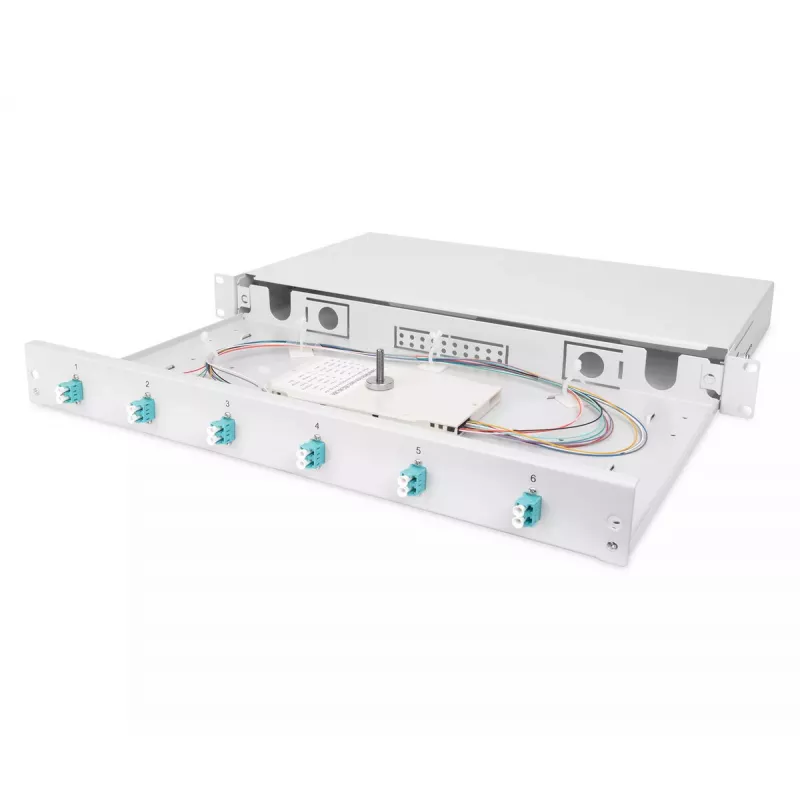

1U FO splice box designed for fiber optic cable termination and management. The unit is equipped with a splice cassette, six LC duplex adapters supporting OM3 multimode fiber, and comes with colored pigtails and couplers for straightforward connection and identification.

Advantages

The splice box provides organized fiber routing and secure splice protection in a standard 1U rack space. Preinstalled colored pigtails simplify connector identification and reduce installation time. Included LC duplex couplers ensure compatibility with commonly used LC connectors and the OM3 rating supports multimode applications with enhanced bandwidth.

Key specifications

• Form factor: 1U rack-mount
• Adapter type: 6 × LC duplex (6x LC DX)
• Fiber type: OM3 multimode
• Includes: splice cassette, colored pigtails, couplers
• Function: splice box for termination and management

How to use

Mount the 1U splice box in a standard rack and route incoming fibers to the splice cassette. Perform splicing inside the cassette and secure splices according to the cassette instructions. Connect the precolored pigtails to the spliced fibers and insert LC duplex connectors into the front couplers to establish connections.

Recommendations

For best results, use compatible OM3 multimode patch cords and maintain bend radii recommended for multimode fiber. Label connections according to your site scheme and follow safety procedures during splicing.
