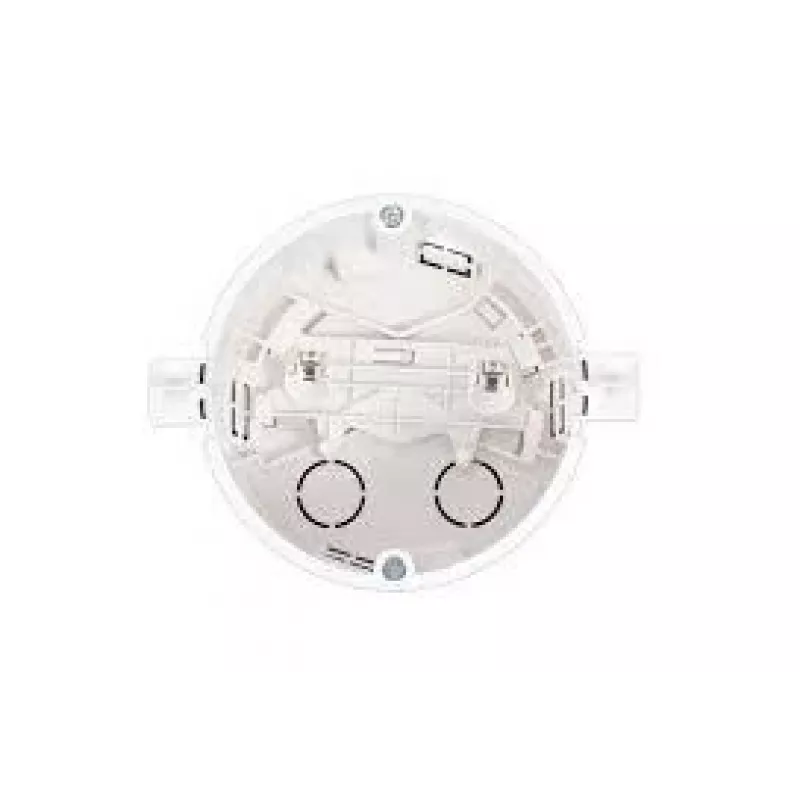

Caja de instalación eléctrica 2N 91378800 blanca ancho 103 mm fondo 50 mm

An installation box for 2N answering units that allows precise rotation of the unit to achieve a perfectly horizontal position after fitting. Designed for mounting into a round opening with a required diameter of 103 mm and a depth of 50 mm, the box provides stable support and alignment for the answering unit.

Advantages

The installation box enables fine rotational adjustment of 2N answering units so the front panel can be aligned precisely. It fits a round mounting hole with 103 mm width and 50 mm depth, ensuring compatibility with installations that meet these dimensions. The design offers stable mechanical support and simplifies achieving level installation without additional shims or modifications.

Key specifications

• Compatible with: 2N answering units
• Required opening diameter: 103 mm
• Required opening depth: 50 mm
• Function: allows gentle rotation for horizontal alignment

How to use

Cut a round opening in the mounting surface with a diameter of 103 mm and a depth of 50 mm. Insert the installation box into the opening, place the 2N answering unit into the box, then gently rotate the unit until the front panel is perfectly horizontal. Secure the answering unit according to the manufacturer's mounting instructions.

Recommendations

Verify that the mounting surface can accommodate a 103 mm × 50 mm circular recess and follow the 2N answering unit installation guide for fastening torque and sealing requirements to ensure a stable and weatherproof installation.
