Caja de PC MSI MAG PANO 100R PZ Midi-Tower blanca — ATX, GPU 380 mm, disipador de CPU 166 mm, 8 ranuras de expansión, 3×2,5 inch + 2×3,5 inch, USB-A×2, USB-C×1

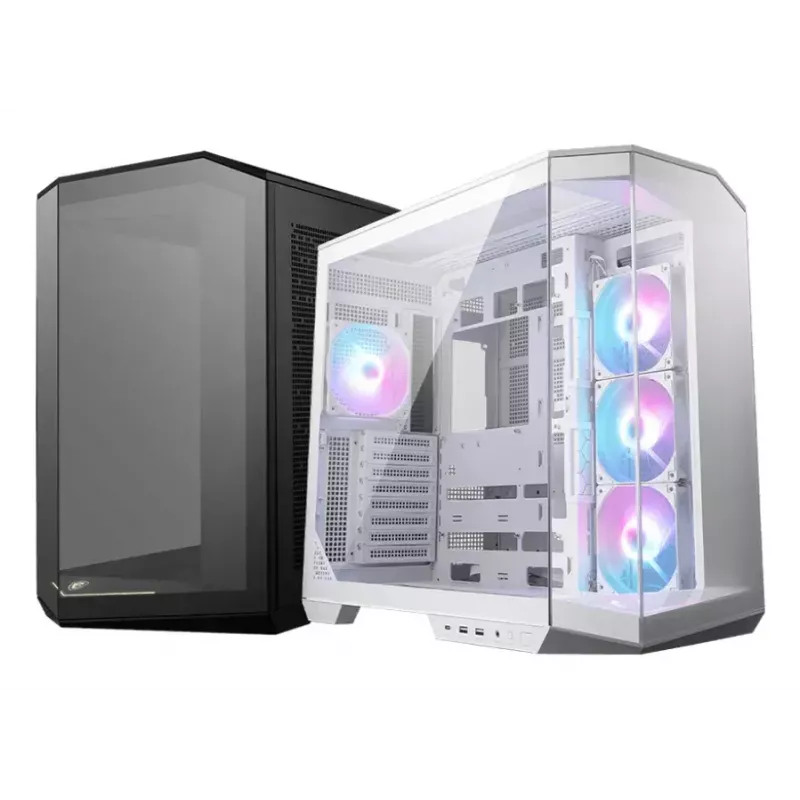

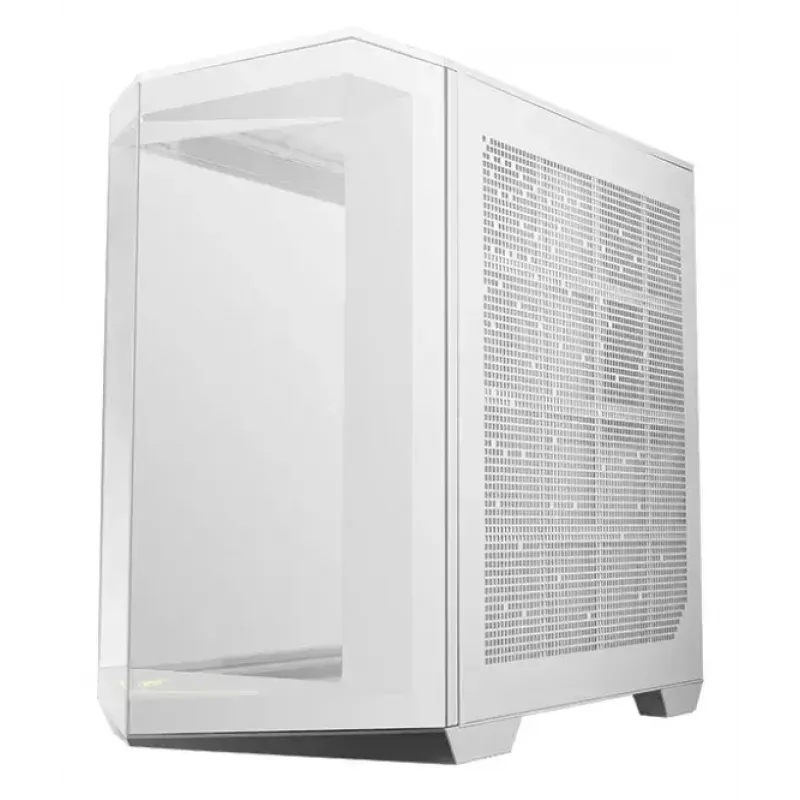

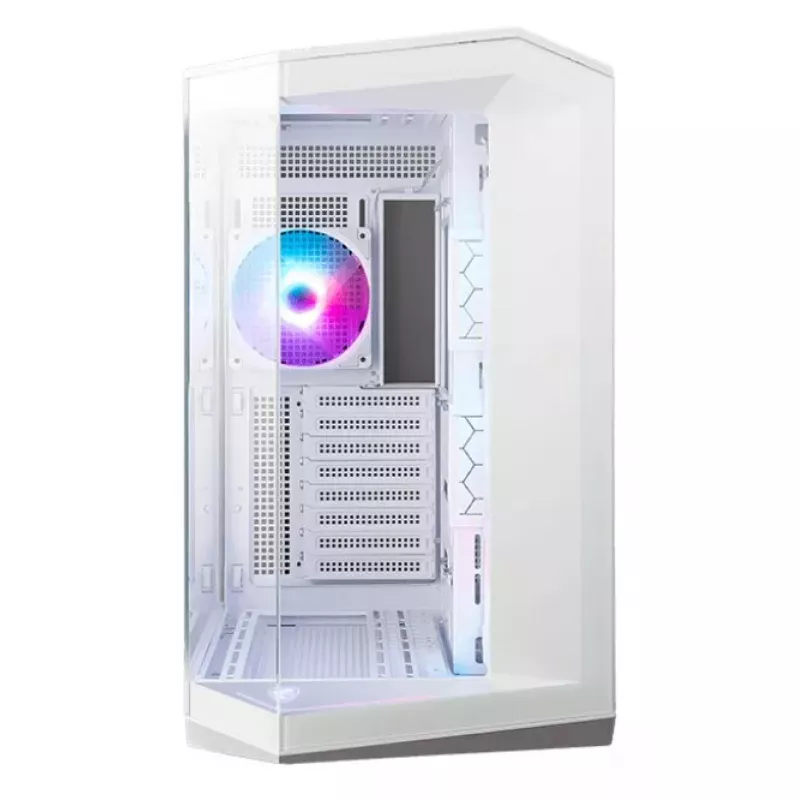

The MSI MAG PANO 100R PZ Midi Tower in white is a PC case designed to showcase ARGB builds and provide flexible hardware installation. The chassis uses design lines inspired by the MAG series and features a 270-degree panoramic display with 4 mm chamfered tempered glass to reduce visible edge gaps. The case supports multiple cooling configurations including three 120 mm side fans and one 120 mm rear fan, with room for push-pull or thicker radiators at the side. Internal layout accommodates 2.5" and 3.5" drives and places the power supply at the bottom for organized cable management.

Advantages

The case combines a rugged MAG design language with practical features: a wide panoramic tempered-glass view for aesthetics, chamfered glass edges for a refined appearance, extensive hardware compatibility for Mini-ITX, Micro-ATX and ATX motherboards, and multiple fan mounts for optimized airflow. Tool-free removable front, side and top panels simplify component installation and maintenance.

Suitable for

• Building a mid-tower gaming PC focused on ARGB presentation
• Systems requiring multiple storage drives (2.5" and 3.5")
• Configurations using push-pull or thicker side radiators for liquid cooling
• Users who need easy access during assembly thanks to tool-free panels

Key specifications

• Type: PC case, Midi Tower
• Colour: White
• Dimensions (W×D×H): 290 mm × 518.7 mm × 482 mm
• Motherboard support: Mini-ITX, Micro-ATX, ATX
• Drive bays: 2 × 3.5" and 3 × 2.5"
• Cooling: 3 × 120 mm side fans (included), 1 × 120 mm rear fan (included); side support for push-pull or thicker radiators
• Side window: 270° panoramic tempered glass (4 mm, chamfered)
• Front/side/top panels: removable, tool-free
• I/O ports: 2 × USB 3.2 Gen 1 Type-A
• Power supply location: bottom

How to use

Remove the front, side or top panels using the tool-free mechanism to access the interior. Install the motherboard (Mini-ITX, Micro-ATX or ATX) onto the standoffs, mount storage drives into the provided 2.5" or 3.5" bays, and place the power supply in the bottom compartment. Install fans or radiators at the side in standard or push-pull configurations as required, and connect included fans to the motherboard fan headers and power connectors. Reattach panels after routing cables and securing components.

Recommendations

For best thermal performance and a clean appearance, use the included side fans in combination with an appropriately sized radiator in push-pull if you plan on liquid cooling, and route cables through the available openings to keep airflow unobstructed.
