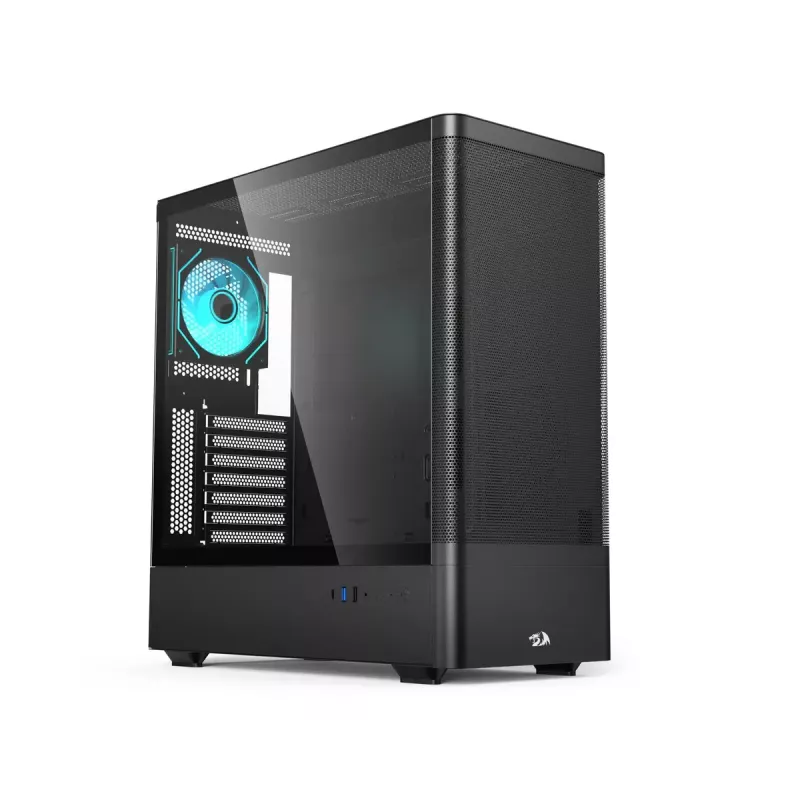

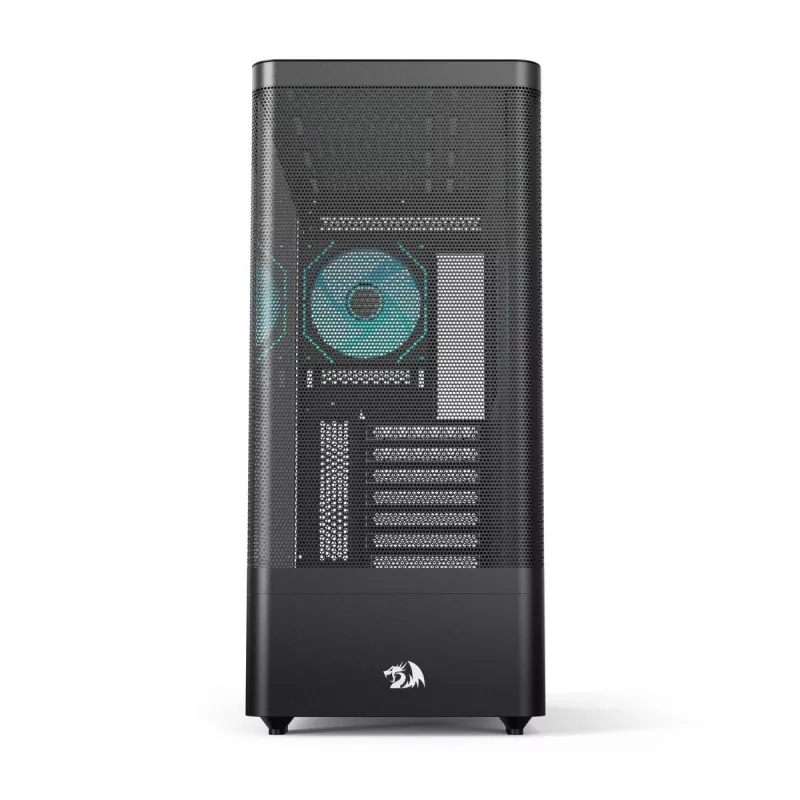

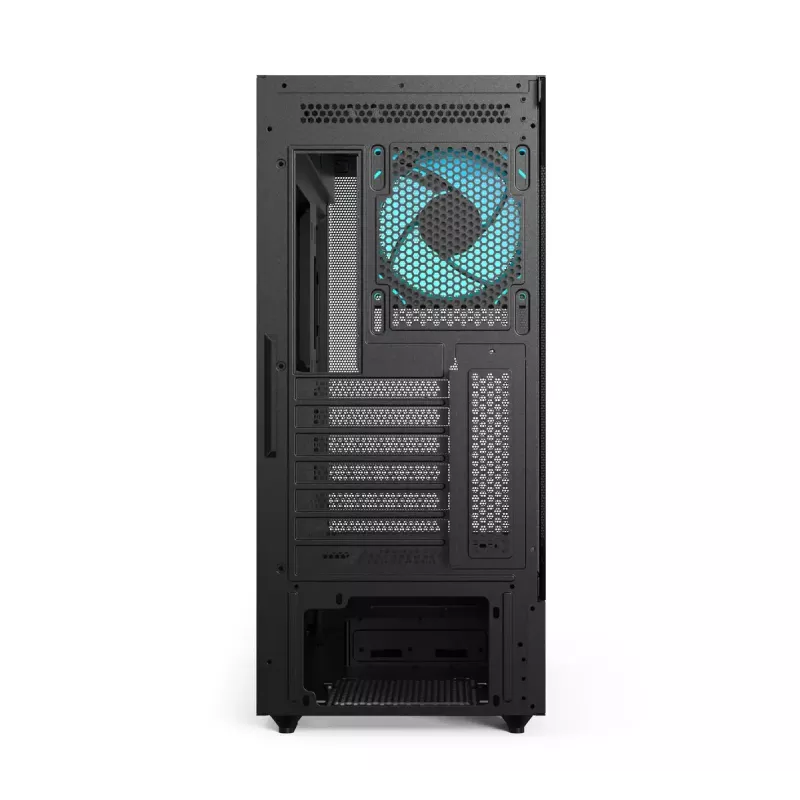

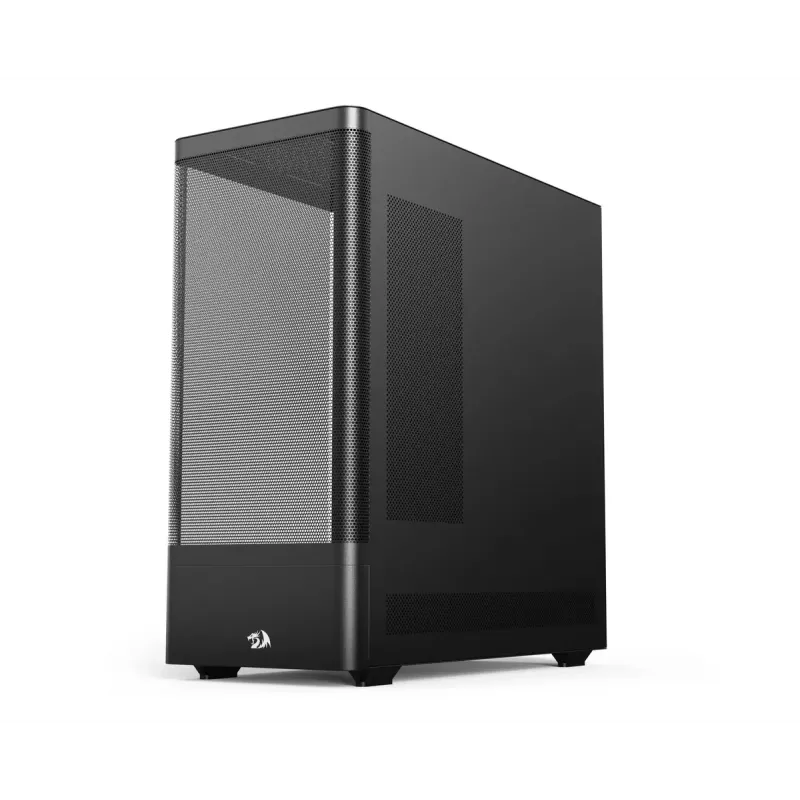

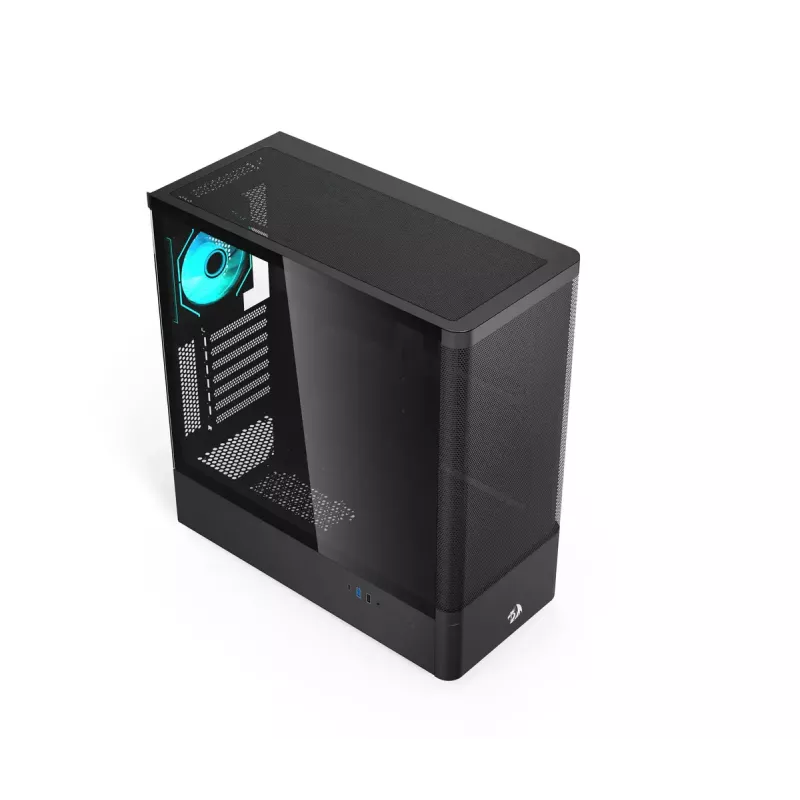

Caja de PC REDRAGON GC-627 ATX micro ATX ITX disipador de CPU de 16,5 cm GPU de 41 cm

Redragon GC-627 is a slim mid-tower ATX gaming case combining a compact footprint with support for full-size components. Compatible with ITX, Micro-ATX and ATX motherboards, it accepts graphics cards up to 410 mm long, CPU coolers up to 165 mm tall and standard ATX power supplies. Perforated mesh on the front and top panels and a tempered glass side window provide airflow and allow the interior to be visible. The front I/O includes USB-C, USB 3.0 and audio ports for convenient access.

Advantages

The case is engineered for efficient ventilation and flexible cooling configurations while remaining only 210 mm wide. It supports both air and liquid cooling setups, offers a tempered glass side panel to showcase components, and provides front I/O connectivity with modern ports. Despite its compact dimensions, it still accommodates long graphics cards and provides multiple drive bays and expansion slots for upgrades.

Key specifications

• Motherboard compatibility: ATX, Micro-ATX, ITX
• Maximum GPU length: 410 mm
• Maximum CPU cooler height: 165 mm
• Power supply: ATX standard support
• Drive bays: 3× 2.5" bays, 1× 3.5" bay
• Side panel: Tempered glass
• Fan/radiator support: Front 2×120 mm; Top 3×120 mm or 2×140 mm or up to 360 mm radiator; PSU shroud 3×120 mm; Bottom 1×120 mm or 120 mm radiator
• Expansion slots: 7
• Case width: 210 mm

How to use

Install the chosen motherboard (ITX/Micro-ATX/ATX) on the standoffs, mount the power supply in the ATX compartment and route cables through the provided openings. Fit the graphics card (up to 410 mm) into the PCIe slots and secure it. Install the CPU cooler (up to 165 mm) and connect fans or radiators according to the planned cooling layout: use the front for intake, the top for exhaust or a radiator up to 360 mm, and the PSU shroud or bottom for additional fans. Close the tempered glass side panel after checking cable management and fan connections. Use the front I/O USB-C, USB 3.0 and audio ports for peripherals and external devices.

Recommendations

For optimal cooling, combine front intake fans with a top exhaust radiator or fans and ensure unobstructed airflow by tidy cable routing; verify GPU and cooler dimensions before purchase to confirm fit inside the 210 mm-wide chassis.
