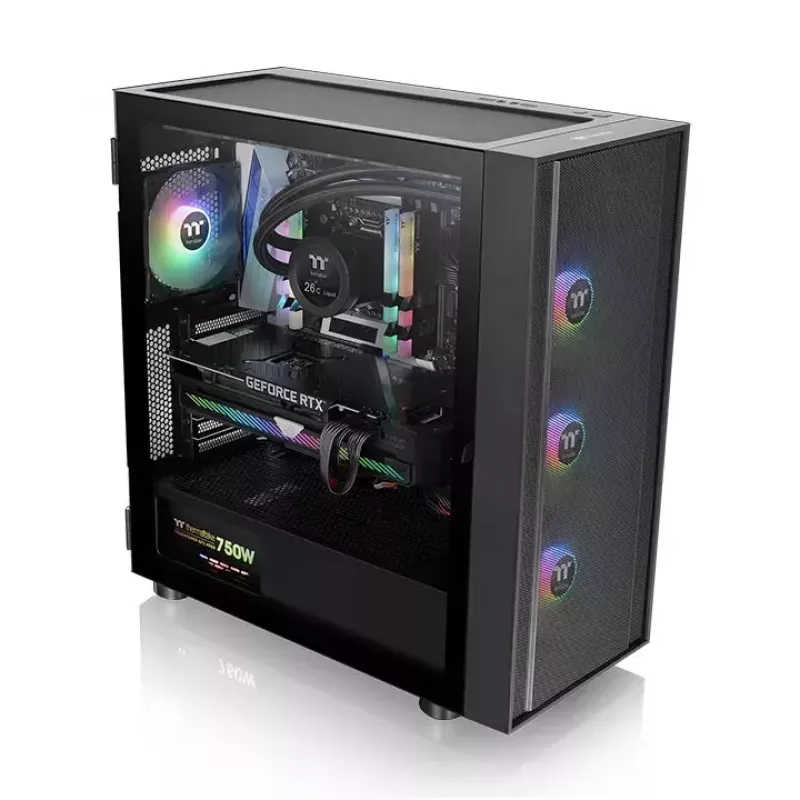

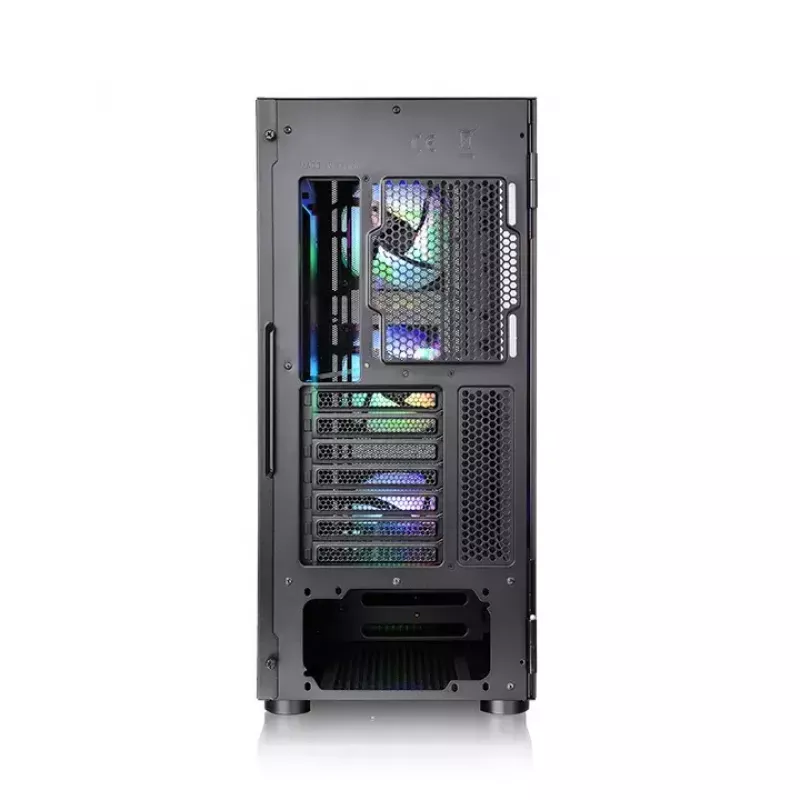

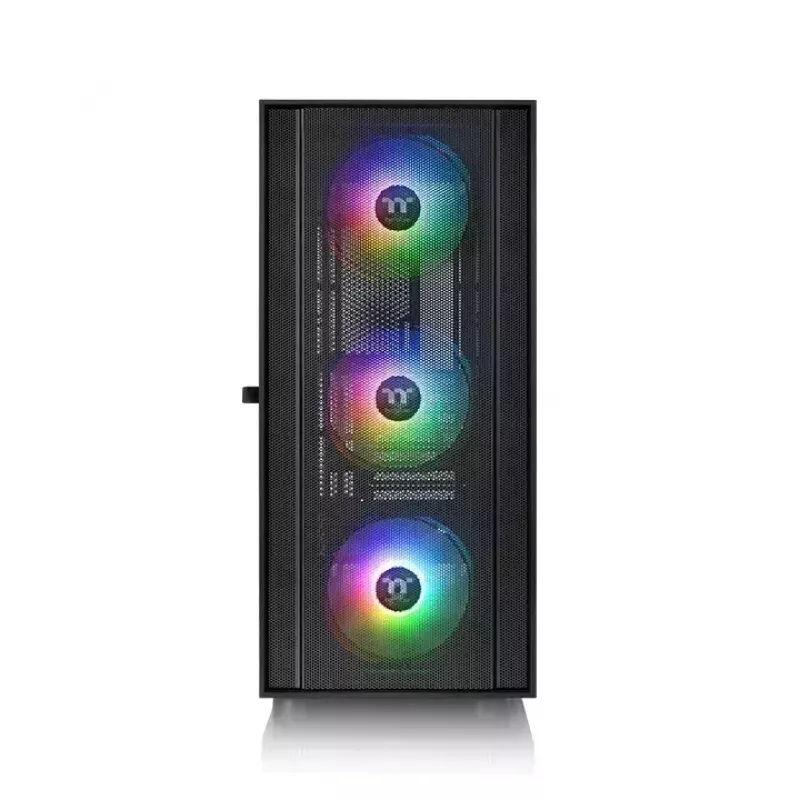

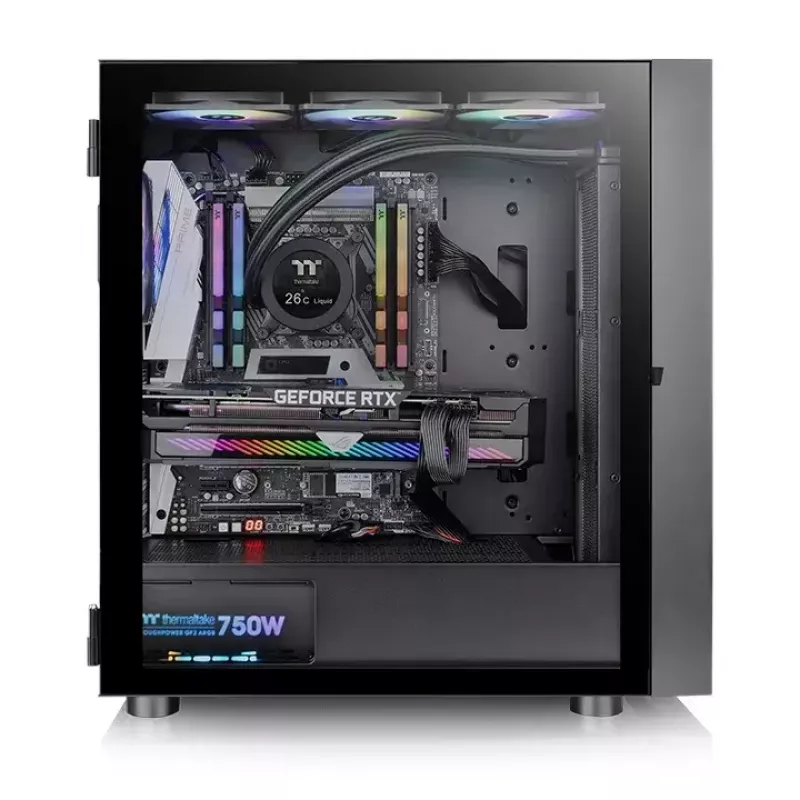

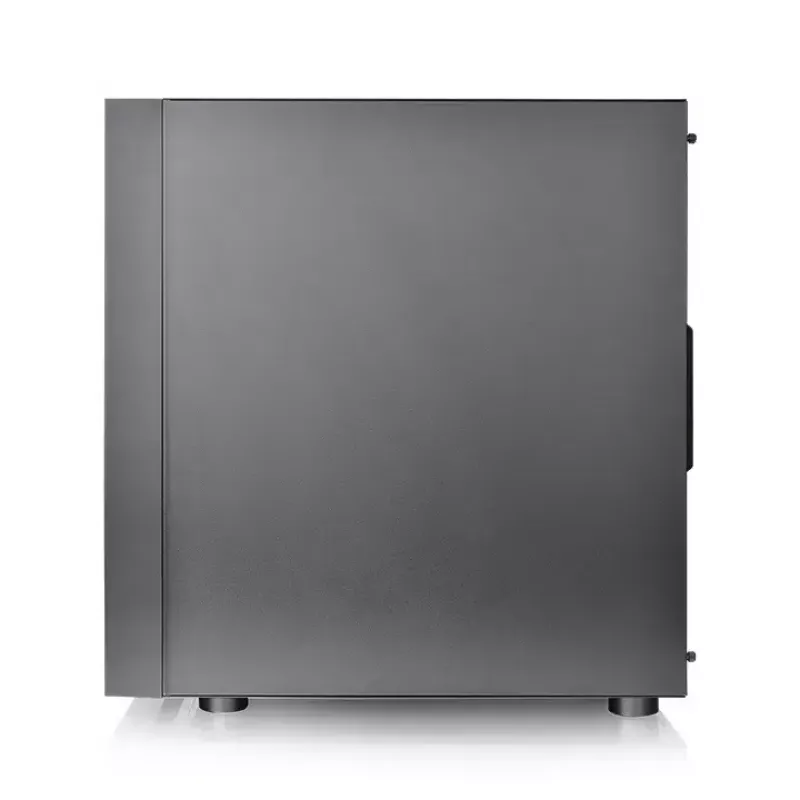

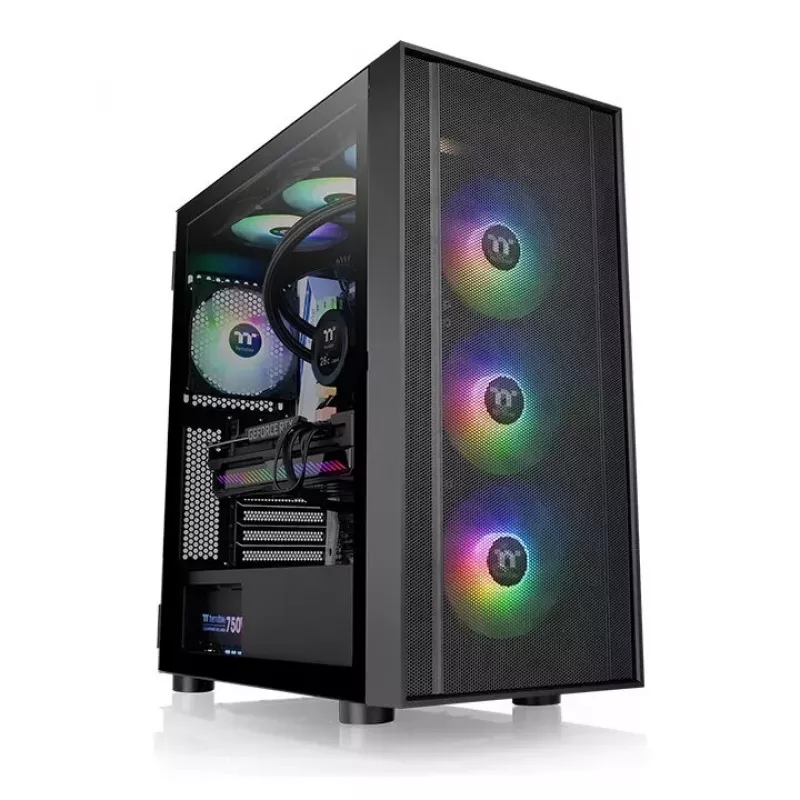

Caja de PC Thermaltake H570 TG ARGB semitorre negra

The Thermaltake H570 TG ARGB Midi Tower is a black mid-tower PC chassis designed for optimized airflow and flexible cooling options. It supports motherboards up to E-ATX (12" x 13") and includes three pre-installed 120 mm hydraulic-bearing ARGB Lite front fans compatible with ASUS, GIGABYTE, MSI and ASRock 5V addressable RGB headers. The case features a mesh front panel, a full-length PSU cover, a 4 mm hinged tempered glass side panel and room for multiple storage drives and large cooling components.

Advantages

The chassis provides strong airflow through a large mesh front panel and comes with three ARGB Lite front fans for immediate cooling and lighting. The hinged 4 mm tempered glass panel offers a durable, scratch-resistant viewing window. A full-length PSU cover helps tidy cables while preserving airflow for drives and the power supply. The design supports a wide range of cooling configurations including up to seven 120 mm fans or large radiators up to 360 mm at the front or top.

Suitable for

• Compact to high-performance gaming or workstation builds requiring E-ATX or ATX motherboards
• Systems prioritizing airflow and custom or AIO liquid cooling (supports up to 360 mm radiators)
• Builders who want ARGB lighting synchronized with ASUS Aura, GIGABYTE RGB Fusion, MSI Mystic Light or ASRock Polychrome
• Users who need multiple drive bays (2 × 3.5" and 4 × 2.5") and internal expansion

Key specifications

• Form factor: Midi Tower
• Supported motherboards: Mini-ITX, Micro ATX, ATX, E-ATX (12" x 13")
• Pre-installed fans: 3 × 120 mm hydraulic-bearing ARGB Lite (front)
• Fan support: up to seven 120 mm fans; supports up to two 140 mm or two 200 mm at front in some configurations
• Radiator support: up to 360 mm at front and top
• Max CPU cooler height: 160 mm
• Max VGA length: 375 mm
• Max PSU length: 180 mm (without HDD rack)
• Drive bays: 2 × 3.5", 4 × 2.5"
• I/O: 2 × USB 3.2 Gen 1 Type-A, 1 × HD Audio
• Materials: SPCC and 4 mm tempered glass side panel
• Dimensions (W × D × H): 216 mm × 463.6 mm × 487 mm
• Weight: 7.5 kg
• Colour: Black

How to use

Install a compatible motherboard (Mini-ITX, Micro ATX, ATX or E-ATX) and mount drives in the dedicated 3.5" and 2.5" bays. Connect the three pre-installed 120 mm ARGB Lite front fans to a 5V addressable RGB header on a supported motherboard to control lighting via ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light or ASRock Polychrome. Configure additional fans or radiators as needed—the top and front support up to 360 mm radiators. Route cables beneath the full-length PSU cover to improve airflow and keep the interior tidy. Use the hinged tempered glass panel to access components and view internal hardware.

Recommendations

For best cooling performance, maintain clear airflow paths by organizing cables under the PSU cover and leave space between intake fans and obstructing drive cages. When using large radiators or long graphics cards, verify component lengths (GPU up to 375 mm, PSU up to 180 mm without HDD rack) before final installation. To control ARGB lighting, connect the fans to a 5V addressable RGB header on a compatible motherboard and use the manufacturer RGB software.
