Fuente de alimentación Thermaltake Smart W3 700 W

The Thermaltake Smart W3 700 W power supply unit provides 700 W of continuous power through a 24-pin ATX connector and multiple peripheral cables. Designed for desktop systems, it accepts AC input voltage ranging from 100 to 240 V at 50/60 Hz and delivers stable output with an 80 PLUS efficiency rating. The unit is finished in black and incorporates a 120 mm cooling fan to maintain safe operating temperatures. Certification marks include CB, FCC, cTUVus and ICES, confirming compliance with relevant safety and electromagnetic standards.

Advantages

The Smart W3 700 W balances performance and efficiency with its 80 PLUS certification, helping reduce wasted energy and heat. A 120 mm fan provides quiet, effective cooling under typical loads. Multiple cable lengths, including a 60 cm motherboard power cable and SATA power leads at 500, 650, 800 and 950 mm, allow flexible cable management in a variety of PC cases. Industry certifications indicate adherence to safety and emission standards.

Suitable for

• Mid-range desktop gaming systems requiring up to 700 W total power
• Home and office PCs that need stable, efficient power delivery
• System builders who need flexible cable lengths for improved cable routing
• Upgrades where 24-pin ATX compatibility is required

Key specifications

• Total power: 700 W
• Motherboard power connector: 24-pin ATX
• AC input voltage: 100 - 240 V, 50/60 Hz
• 80 PLUS certification

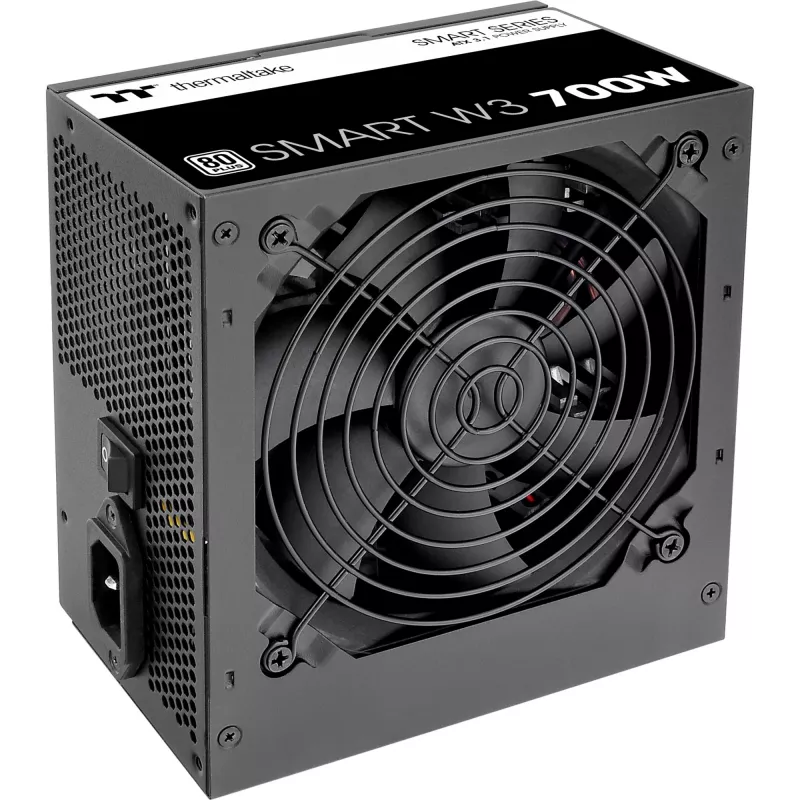

• Fan diameter: 120 mm
• Product colour: Black
• Included cable lengths: motherboard 600 mm; SATA 500 / 650 / 800 / 950 mm
• Certifications: CB, FCC, cTUVus, ICES

How to use

Install the Thermaltake Smart W3 700 W into a compatible PC case aligning the 24-pin ATX connector with the motherboard socket and securing the PSU with the case mounting screws. Connect the SATA power cables and any required peripheral connectors to drives and accessories. Ensure the AC mains cable is rated for your region and connect it to a properly grounded outlet. Configure cable routing to avoid airflow obstruction around the 120 mm fan and other components.

Recommendations

For reliable operation, ensure your total system power draw remains within the PSU’s rated 700 W capacity and allow adequate ventilation around the unit. Periodically check cable connections and keep the fan and ventilation openings free of dust. Use surge protection or an uninterruptible power supply (UPS) where necessary to protect against voltage spikes.
