Caja de PC Zalman N5 TF ATX negro

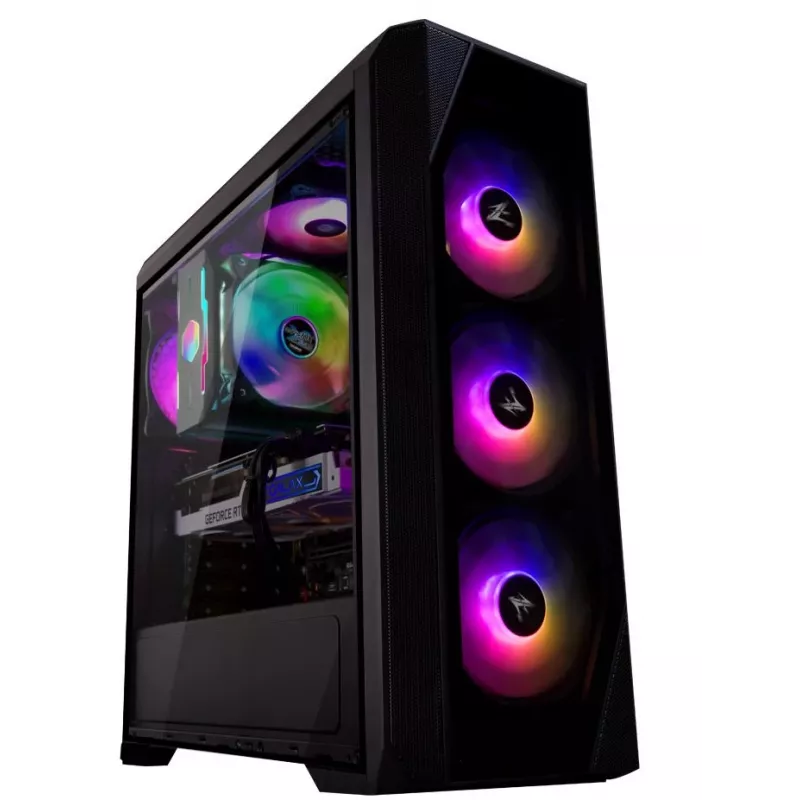

The Zalman N5 TF ATX black is a mid-tower computer case compatible with ATX, Micro-ATX and Mini-ITX motherboards. Constructed from steel, plastic and tempered glass, the case measures 432 x 200 x 450 mm (H) and weighs 3.8 kg. It includes four preinstalled Spectrum RGB fans and supports graphics cards up to 365 mm and CPU coolers up to 158 mm, offering space for common gaming and workstation builds.

Advantages

The case provides versatile cooling options with multiple fan mounting positions and preinstalled RGB fans for immediate airflow and lighting. Front I/O includes USB 3.0 and USB 2.0 ports plus audio jacks, while integrated fan and LED controllers simplify speed and lighting adjustments. The design supports standard ATX layouts, has a built-in PSU compartment and several drive bay options for 3.5" or 2.5" drives.

Suitable for

• Gaming desktop builds with mid-sized GPUs
• Home or office workstations using ATX/mATX/Mini-ITX motherboards
• Compact custom builds requiring RGB lighting and multiple fan mounts

Key specifications

• Model: N5 TF
• Form factor: ATX Mid Tower
• Dimensions (H x W x D): 432 x 200 x 450 mm
• Weight: 3.8 kg
• Materials: Steel, Plastic, Tempered Glass
• Motherboard support: ATX / mATX / Mini-ITX

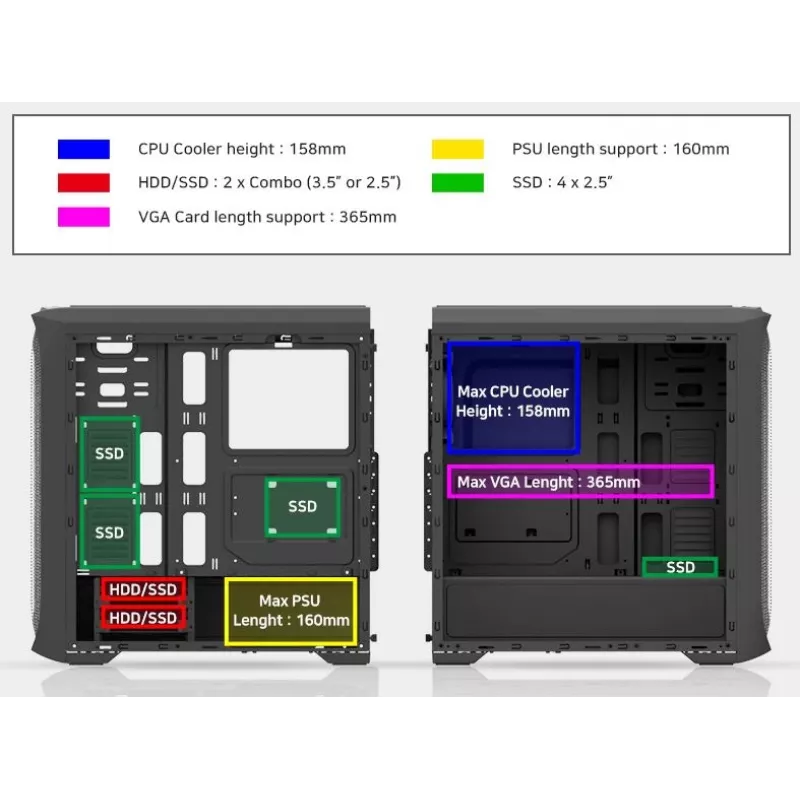

• Maximum VGA length: 365 mm
• Maximum CPU cooler height: 158 mm
• Maximum PSU length: 160 mm

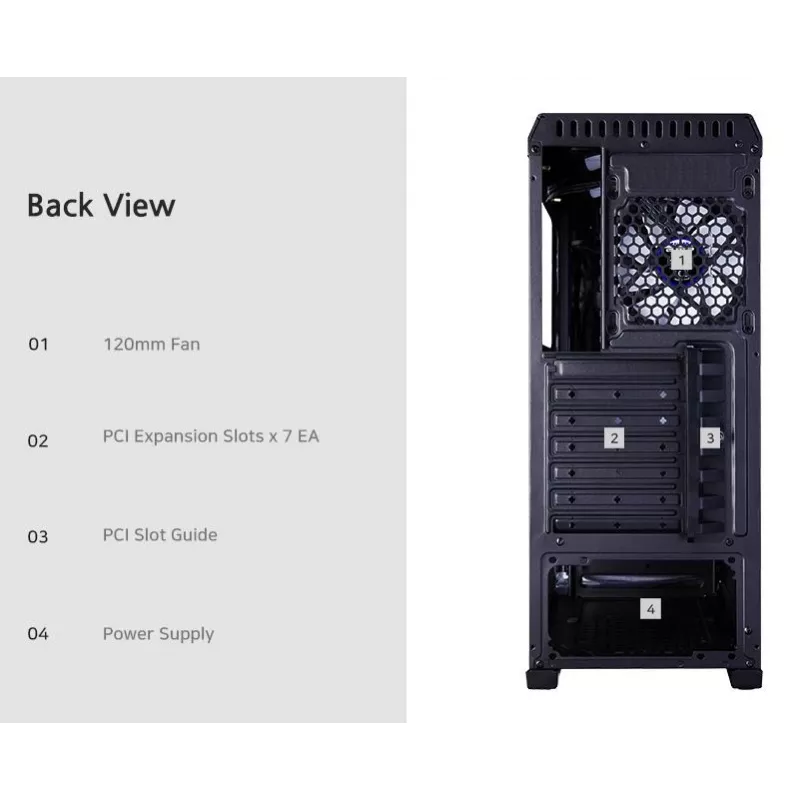

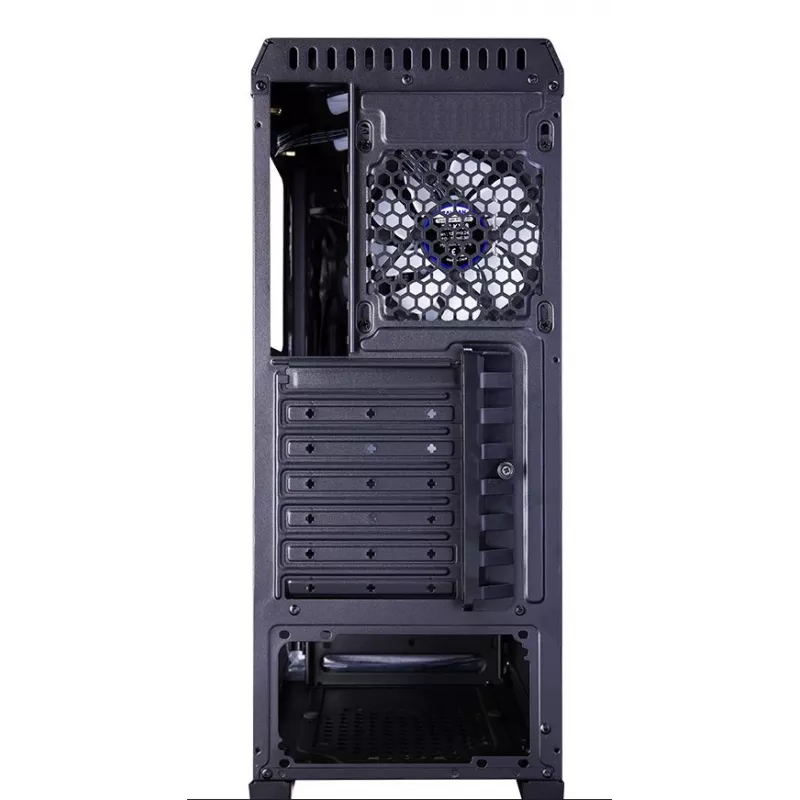

• PCI expansion slots: 7
• Drive bays: 2 x Combo (3.5" or 2.5"), 4 x 2.5"
• Fan support: Front 3 x 120 mm, Top 3 x 120 mm, Rear 1 x 120 mm, Bottom 2 x 120 mm

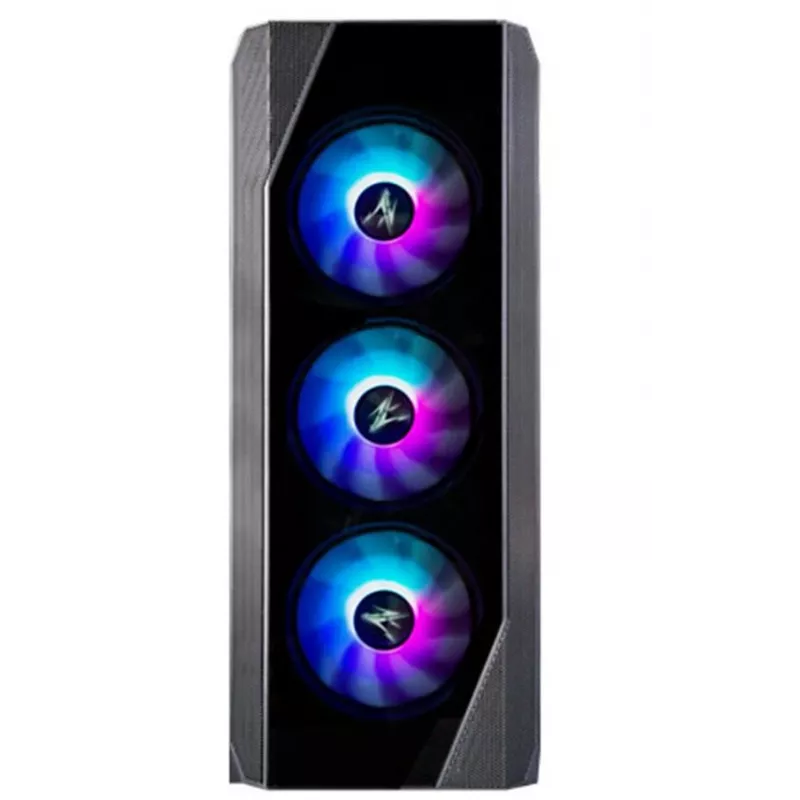

• Included fans: Front 3 x 120 mm (Spectrum RGB), Rear 1 x 120 mm (Spectrum RGB)
• Radiator support: Front 120/240/360 mm, Rear 120 mm

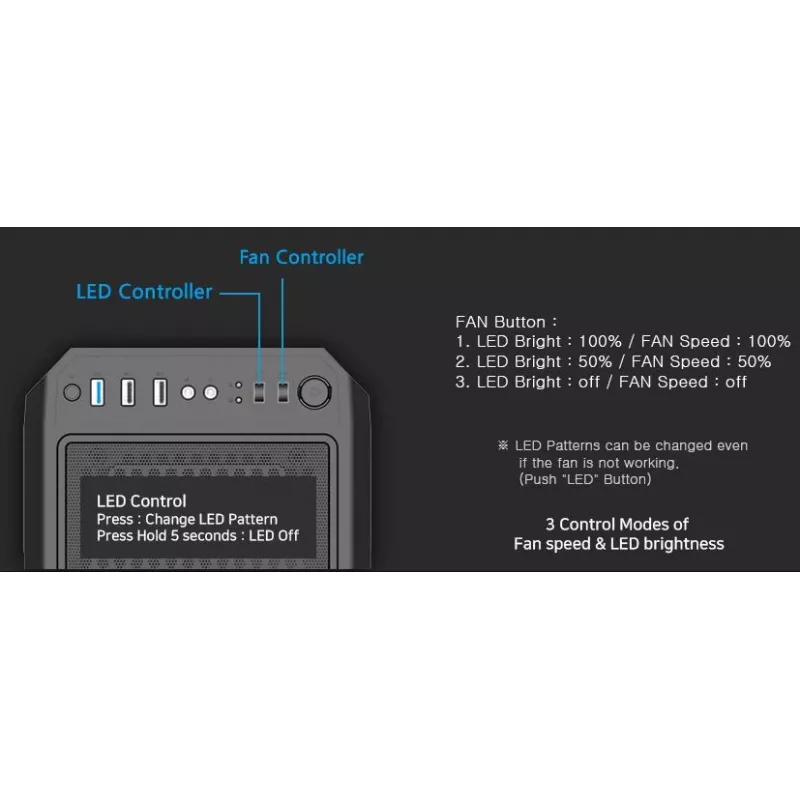

• I/O ports: USB 3.0 x1, USB 2.0 x2, Power, Reset, Headphone, Microphone, Fan controller, LED controller

How to use

Install a compatible motherboard (ATX, mATX or Mini-ITX) on the dedicated standoffs and secure it with screws. Mount the PSU into the built-in compartment and route cables using the case’s cable management openings. Install drives in the provided combo and 2.5" bays. Fit the GPU within the 365 mm clearance and the CPU cooler within the 158 mm height limit. Connect the preinstalled fans and front-panel cables to the motherboard or the included fan/LED controllers, then adjust fan speeds and LED patterns via the onboard controllers.

Recommendations

For optimal airflow, configure intake fans at the front and bottom and exhaust fans at the rear and top. Verify radiator size compatibility before installing an AIO cooler in the front (supports up to 360 mm) or rear (120 mm). Use the fan controller to balance noise and cooling performance according to system load.
