Caja de superficie Equip 2 puertos Cat.6 235214

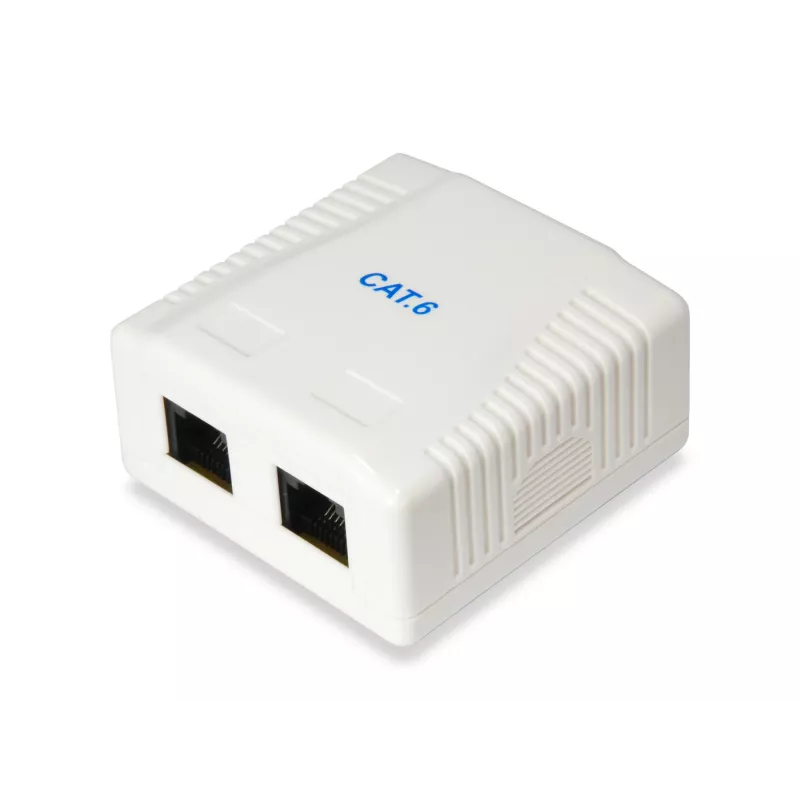

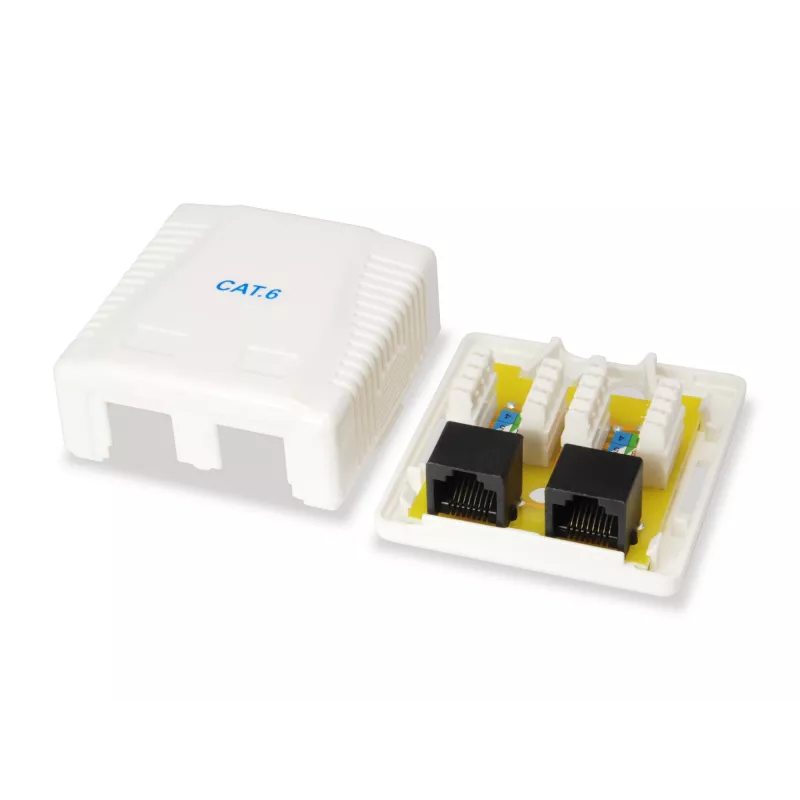

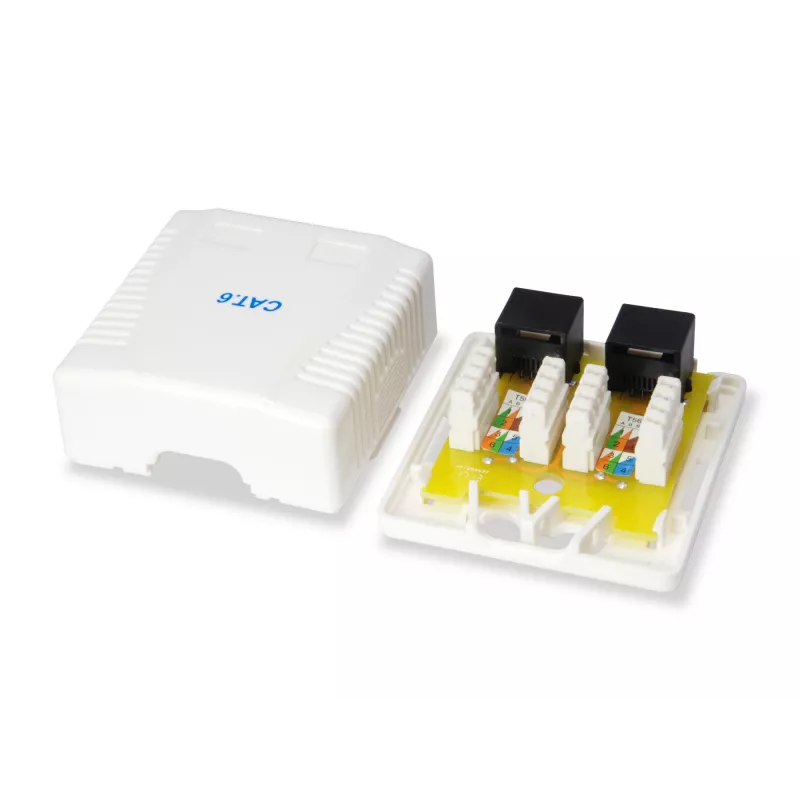

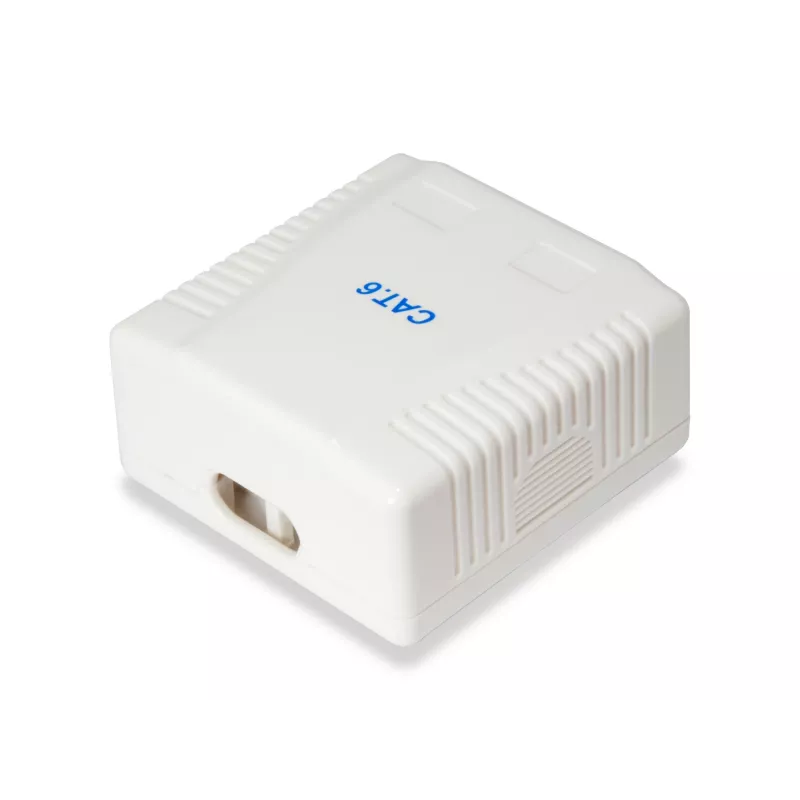

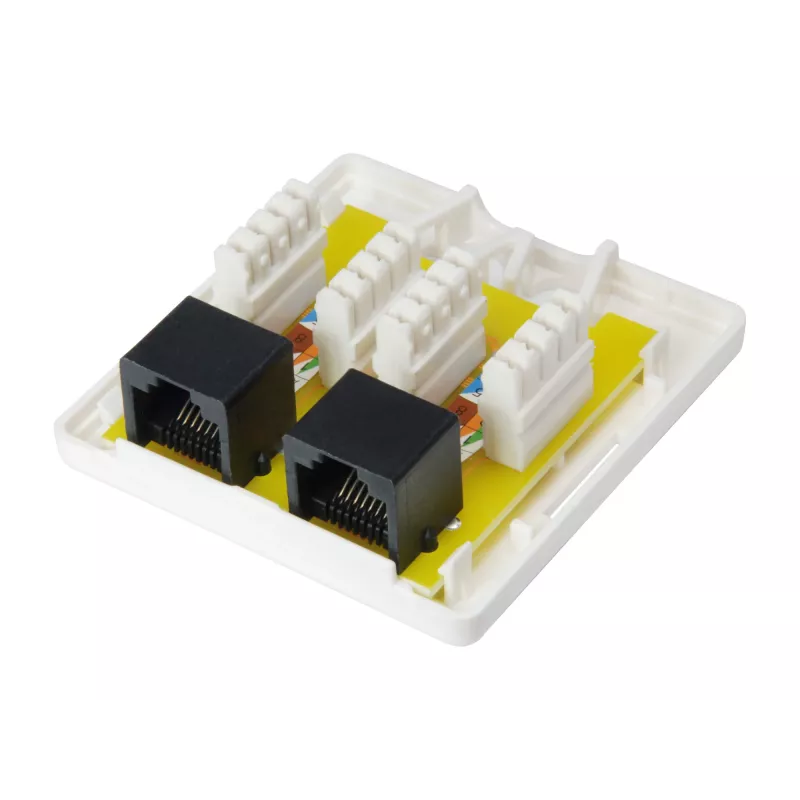

The equip® Surface Mounted Box with two RJ45 ports supports two Cat.6 connections and is designed for neat, reliable network terminations. The compact white housing (61 mm × 29.6 mm × 59.1 mm) is suitable for wall mounting in residential and commercial environments and includes one piece of adhesive tape for tool-free installation.

Advantages

The surface mount box offers a compact and unobtrusive solution for organizing network cables. It supports Cat.6 performance on two RJ45 ports, comes in a white finish to match most interiors, and includes adhesive tape for quick, tool-free mounting. Its lightweight construction (0.047 kg) simplifies handling and installation.

Suitable for

• Home network outlets for computers, smart TVs, and game consoles
• Small office network points and hot desk connections
• Retrofit or new installations where wall-mounted patch points are needed

Key specifications

• Brand: EQUIP
• Model / MPN: 235214
• EAN: 4015867206928
• Ports: 2 × RJ45 (Cat.6)
• Material colour: White
• Dimensions (W × H × D): 61 mm × 29.6 mm × 59.1 mm
• Weight: 0.047 kg

How to use

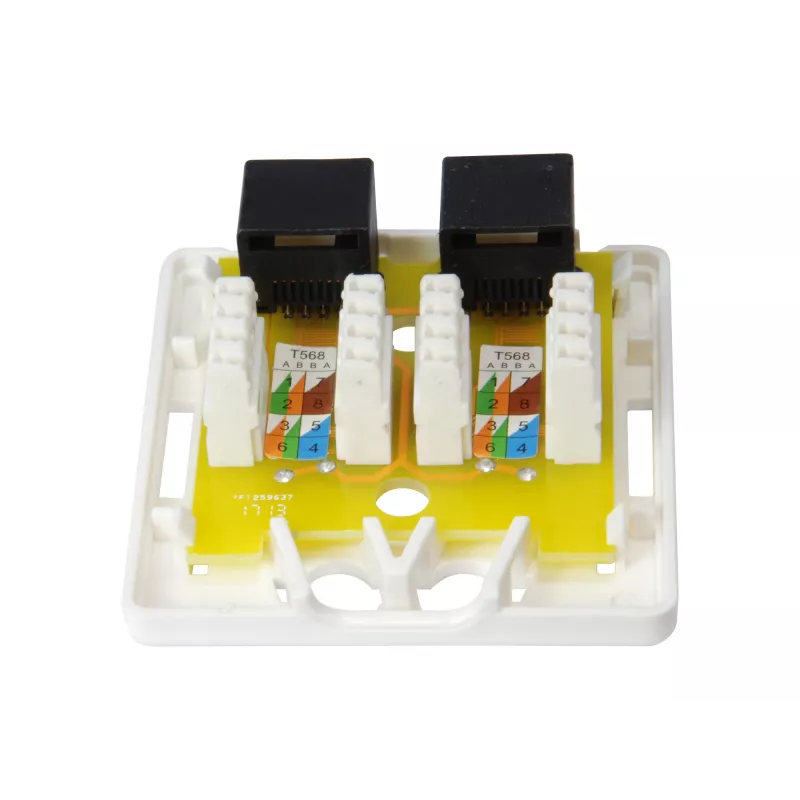

Prepare the surface by cleaning and drying the mounting area. Remove the protective film from the supplied adhesive tape and press the box firmly onto the wall at the desired location. Terminate Cat.6 cables to the RJ45 jacks according to standard wiring (T568A or T568B) and secure the cover. No additional tools are required for mounting, but a punch-down or crimping tool may be needed to terminate cables depending on the connector style used.

Recommendations

For best results, mount the box on a clean, dry, and smooth surface. If the network point will carry critical or frequently moved connections, consider mechanical fixing in addition to the supplied adhesive tape and verify cable terminations with a network tester.
