Caja semitorre Kolink UNITY MESHBAY PERFORMANCE negra

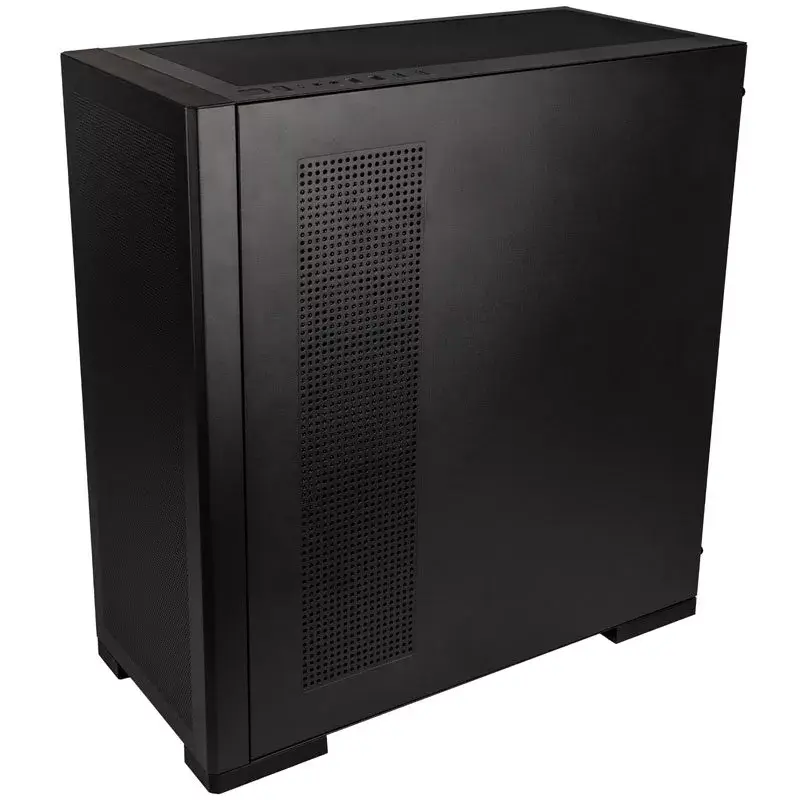

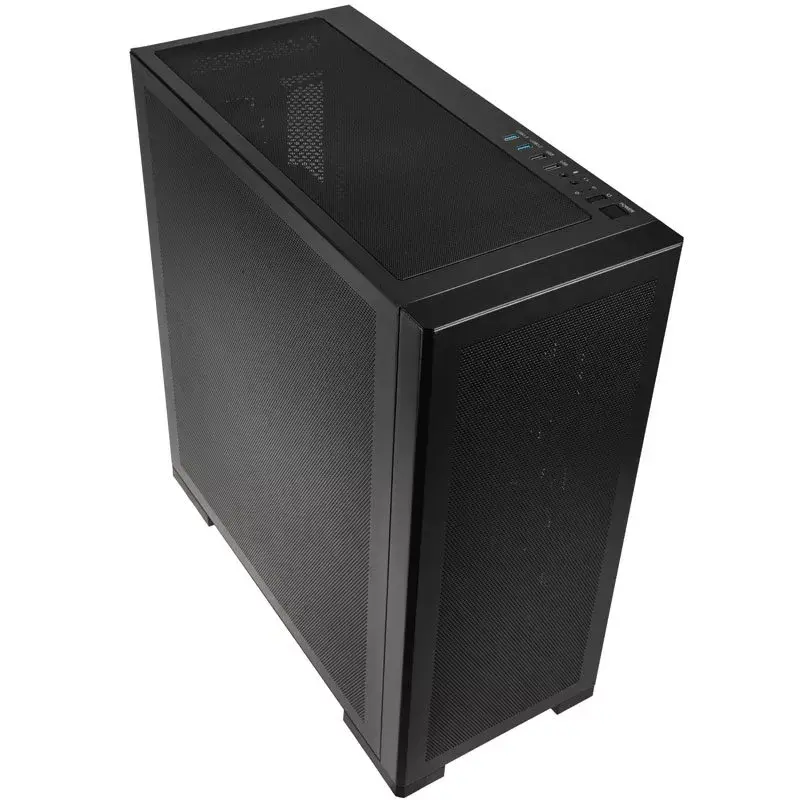

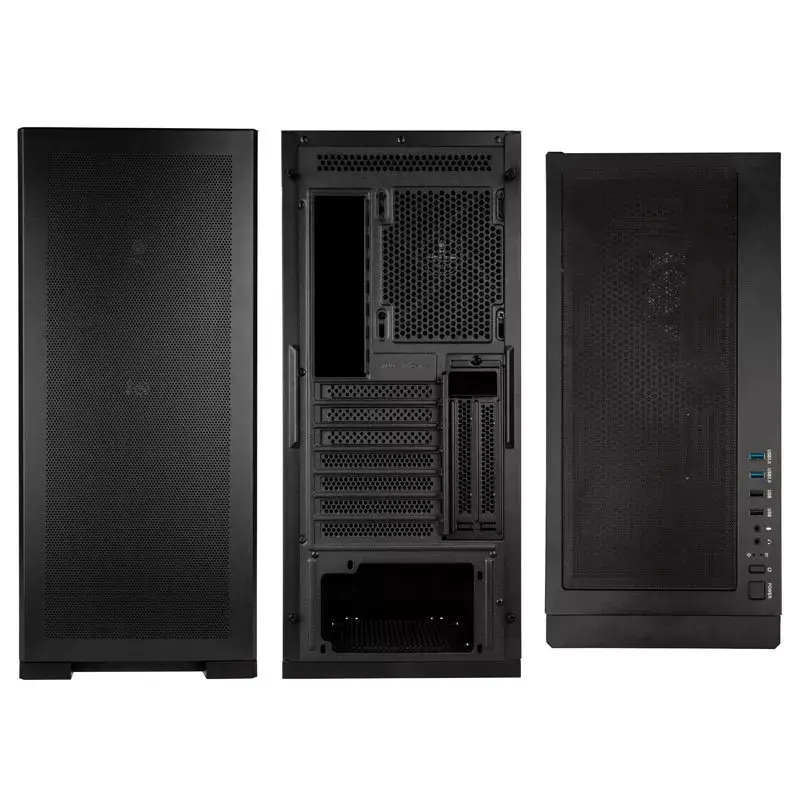

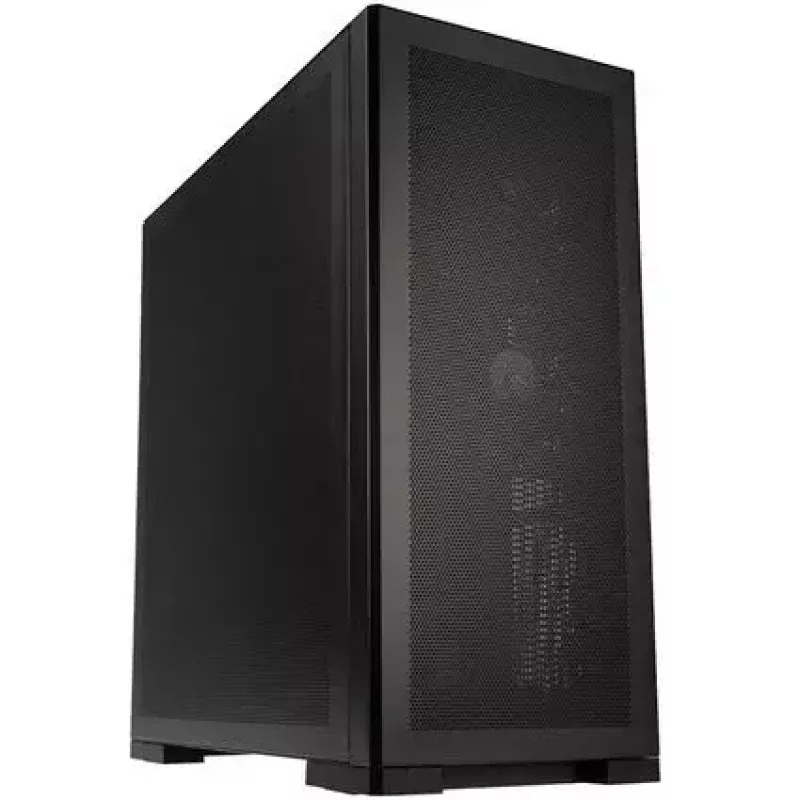

The Kolink UNITY MESHBAY PERFORMANCE Midi Tower in black is a compact ATX-compatible PC case designed for effective airflow and flexible hardware support. Its steel and ABS construction combines a mesh-front and mesh-side layout with three pre-installed 120 mm PWM fans (two front, one rear) to prioritize cooling while keeping an understated visual appearance. The case supports ATX, Micro ATX and Mini-ITX motherboards, accepts both 2.5" SSDs and 3.5" HDDs, and provides a half PSU shroud for tidy cable management. With overall dimensions of 210 mm width, 420 mm depth, and 465 mm height, the UNITY MESHBAY PERFORMANCE offers space for common enthusiast components while remaining reasonably compact.

Advantages

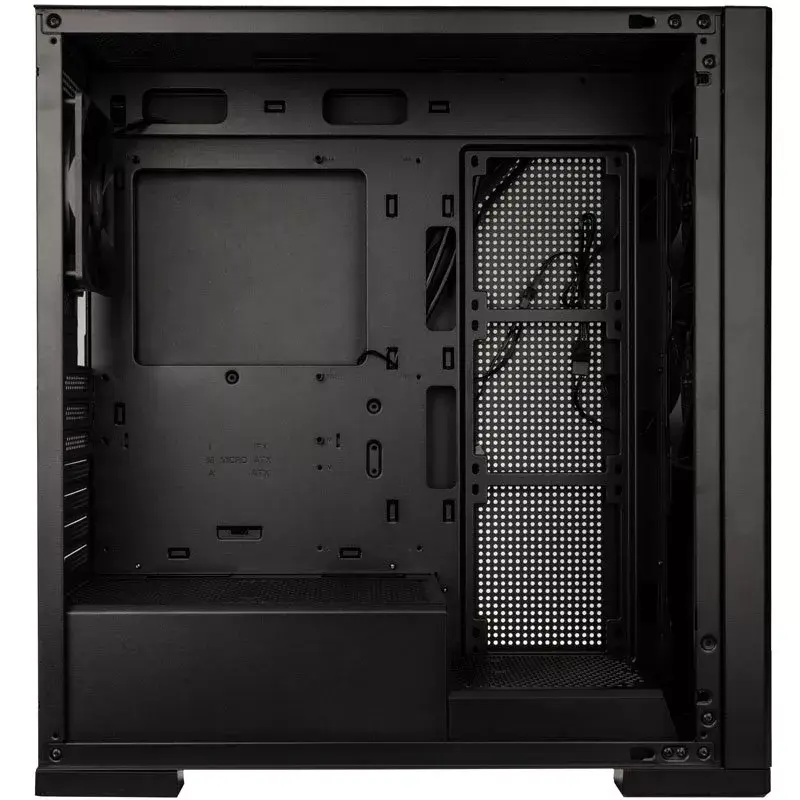

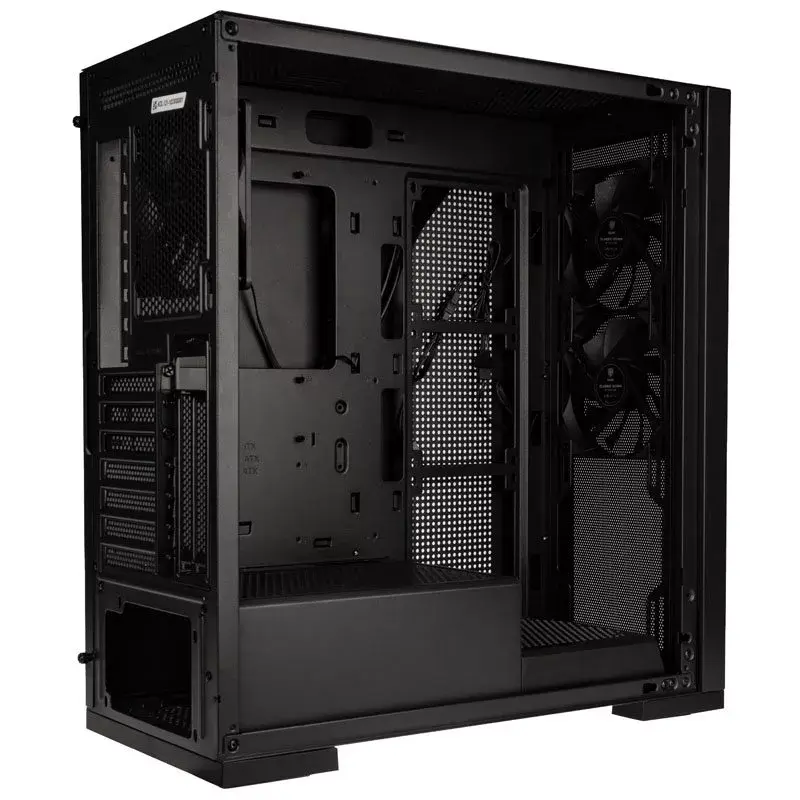

The mesh panels and three pre-installed 120 mm PWM fans deliver strong front-to-back airflow out of the box, reducing operating temperatures for CPU and GPU. Support for ATX motherboards and up to seven horizontal expansion slots plus two vertical slots enables flexible GPU placement, including vertical mounting with an optional kit. The case includes dedicated mounting points for multiple radiators and fans, clearance for a 168 mm CPU cooler, and storage bays for two 2.5" SSDs and two 3.5" HDDs. A 24 mm cable-routing gap behind the motherboard tray and a half PSU shroud help maintain a clean interior and improve airflow efficiency.

Suitable for

• Building a mid-tower gaming PC with ATX or smaller motherboards
• Air-cooled or mixed cooling setups that benefit from large mesh surfaces
• Systems requiring multiple 2.5" SSDs and 3.5" HDDs for storage
• GPU-focused builds where vertical GPU mounting or long graphics cards are needed

Key specifications

• Form factor: Midi Tower
• Materials: Steel and ABS
• Colour: Black
• Supported motherboard sizes: ATX, Micro ATX, Mini-ITX

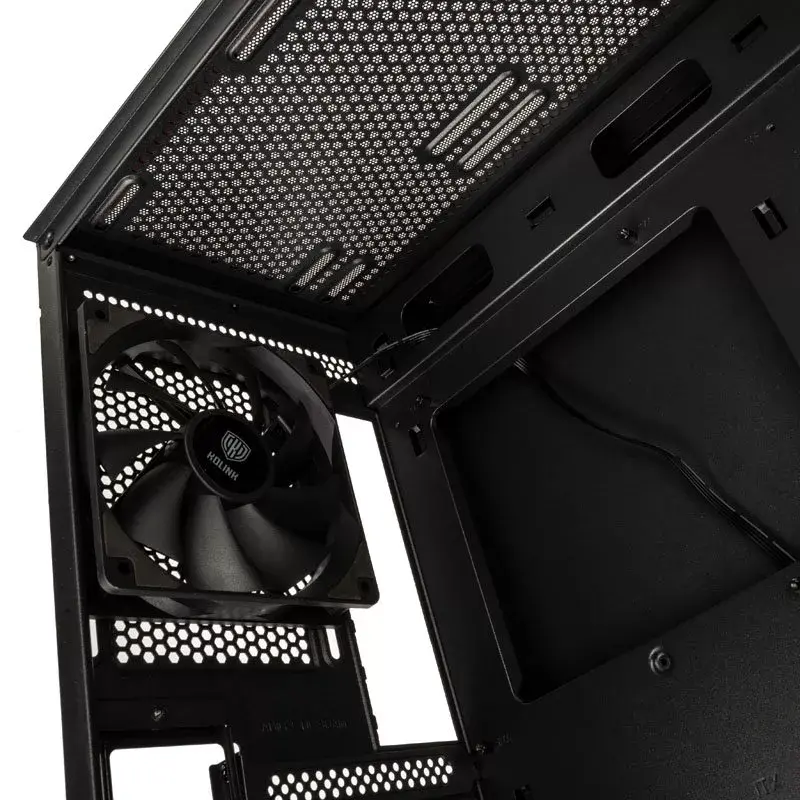

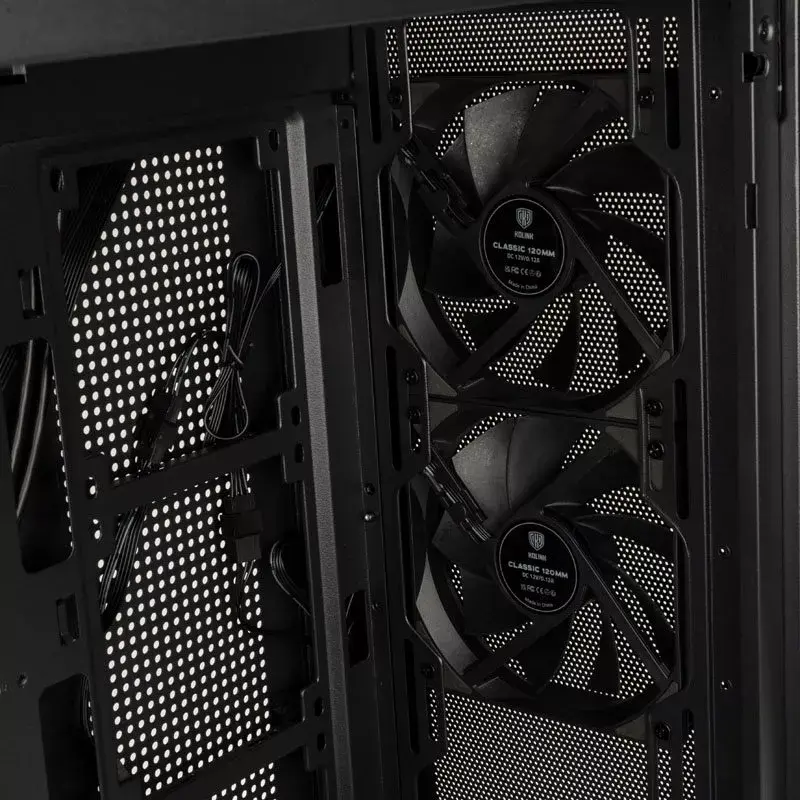

• Pre-installed cooling: three 120 mm PWM fans (two front, one rear)
• Fan support: up to three 120/140 mm front, up to three 120/140 mm top, one 120 mm rear; side support for 240 mm radiator
• CPU cooler height clearance: 168 mm
• GPU length clearance: up to 400 mm (with appropriate configuration)
• Drive bays: two 2.5" SSD mounts, two 3.5" HDD mounts

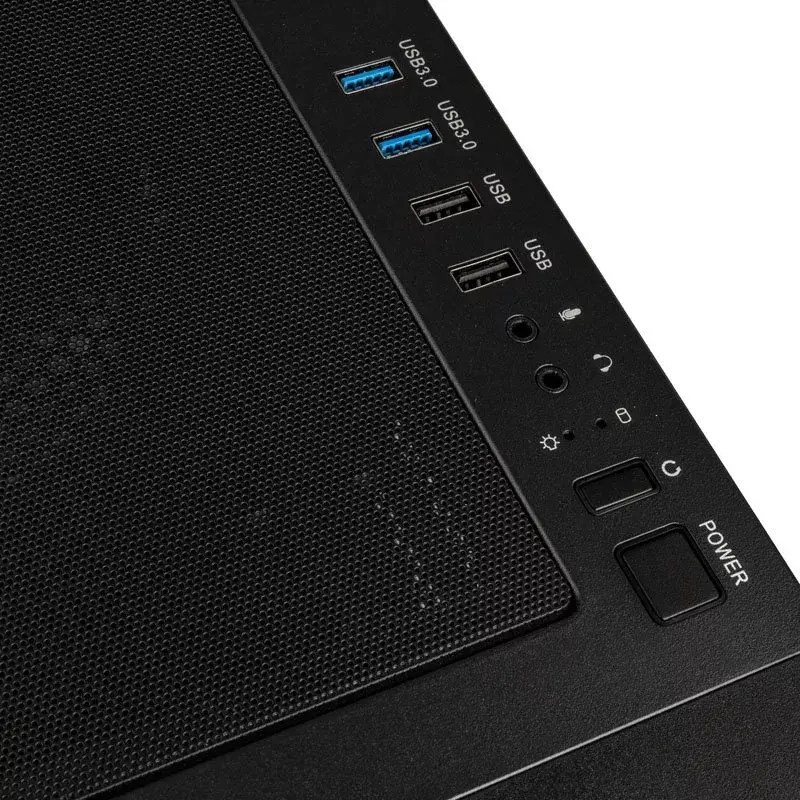

• I/O: two USB 3.2 Gen 1 Type-A ports, one USB 2.0 port, HD audio, power and reset buttons
• PSU compatibility: ATX power supplies; shroud supports 150–180 mm depth
• Dimensions (W×D×H): 210 × 420 × 465 mm
• Weight: 7.7 kg

How to use

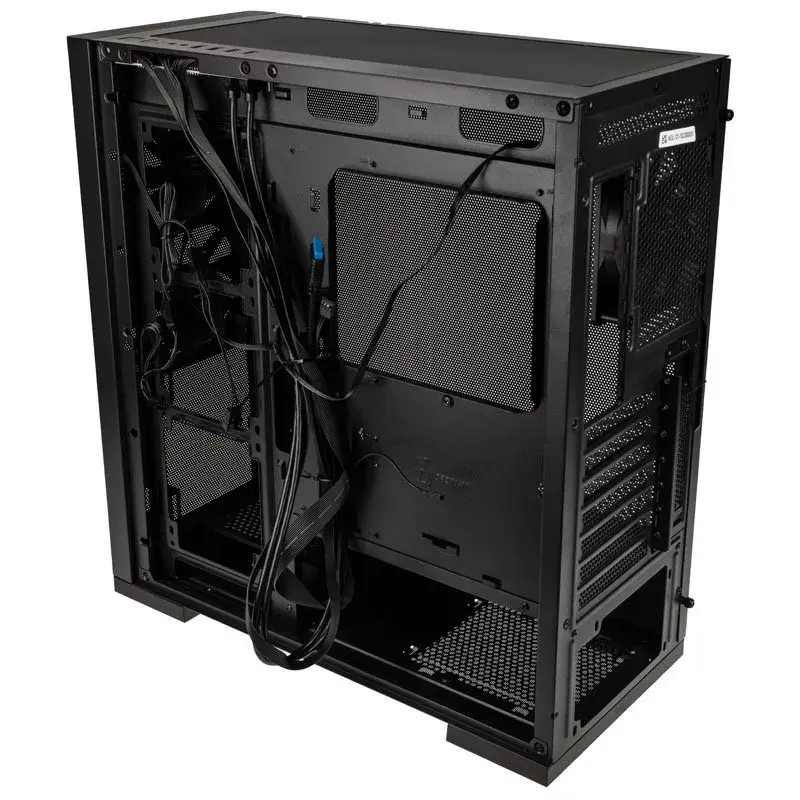

Install the chosen motherboard (ATX, Micro ATX or Mini-ITX) into the standoffs, route power and data cables through the 24 mm cable-routing channel behind the motherboard tray, and mount storage drives into the designated 2.5" or 3.5" bays. Fit the power supply into the half PSU shroud and secure expansion cards in the available slots; if you plan to mount a graphics card vertically, use a compatible vertical-mount kit (sold separately). Configure fan orientation to establish front-to-back airflow and connect fans and front-panel I/O to the motherboard headers according to the motherboard manual. When fitting liquid cooling, confirm radiator placement and clearance: the front and top support up to 360 mm radiators and the side can accept a 240 mm radiator next to the motherboard.

Recommendations

For optimal thermal performance, maintain unobstructed airflow through the mesh panels and use the pre-installed PWM fans with motherboard fan curves or a fan controller. If installing large GPUs or multiple drives, plan cable runs and storage placement to avoid restricting airflow. When using liquid cooling, verify radiator thickness and fan clearance against the case’s supported locations before assembly.
