Cajón portamonedas Capture CA-CF460-680B

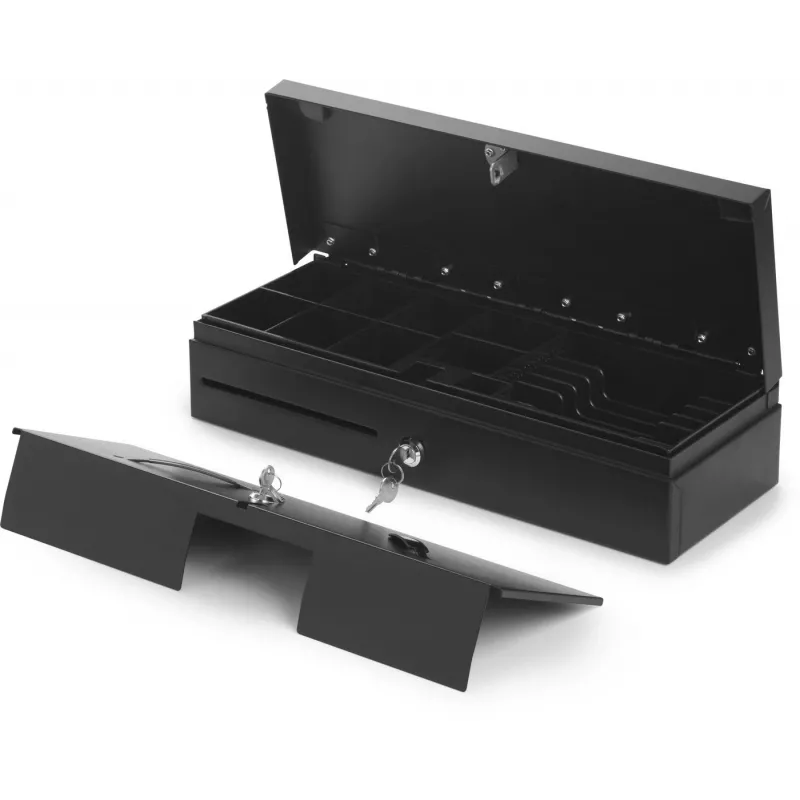

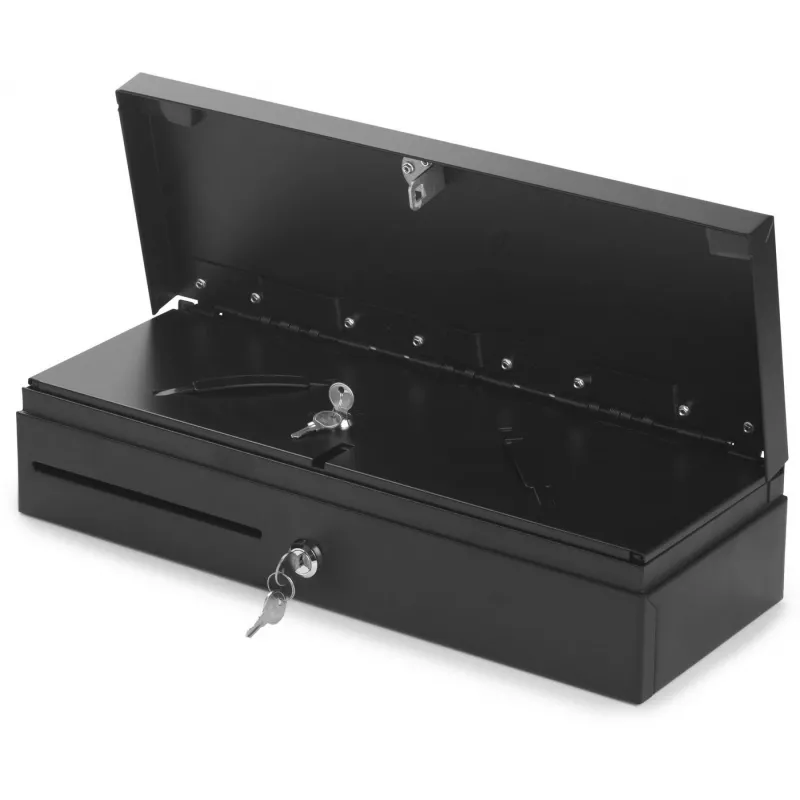

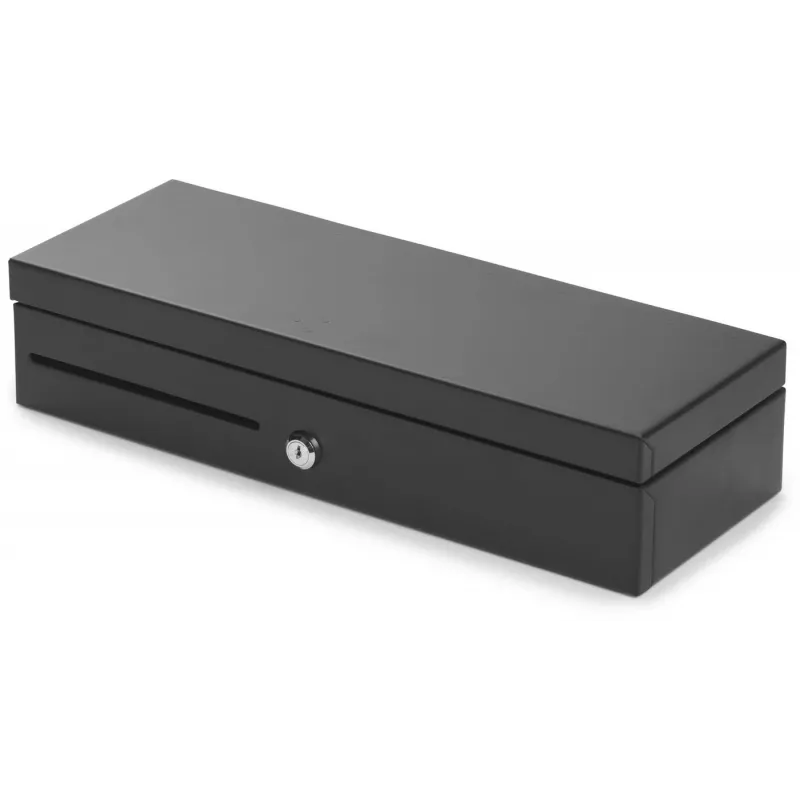

The Capture CA-CF460-680B cash drawer is a compact and functional unit for point-of-sale systems, offering a durable plastic cash tray with bill clips, flexible coin compartments and a front access slot for checks and card receipts. It measures 460 mm (width) × 170 mm (depth) × 100 mm (height), weighs 4.99 kg and is finished in black. The drawer includes two keys for manual locking and supports 12/24 V operation for printer-triggered automatic opening via the included RJ12 cable.

Advantages

The cash drawer provides three-position lock security, a built-in micro switch for reliable electronic triggering and a lightweight, corrosion-resistant plastic tray designed for everyday retail use. Its front access slot allows quick insertion of checks and receipts without opening the drawer, and the supplied RJ12 cable enables easy connection to most receipt printers for automatic opening.

Suitable for

• Retail shops and boutiques
• Restaurants, cafes and small food outlets
• Any point-of-sale setup requiring a compact cash drawer with printer-triggered opening

Key specifications

• Model: Capture CA-CF460-680B
• Dimensions: 460 × 170 × 100 mm (W × D × H)
• Weight: 4.99 kg
• Colour: Black
• Lock: 3-position lock, 2 keys included
• Power: 12/24 V operation
• Interface: RJ12 cable included (for printer-triggered opening)

How to use

Connect the RJ12 cable from the cash drawer to the receipt printer according to the printer manufacturer’s instructions to enable automatic opening when a sale is printed. For manual use, lock and unlock the drawer with one of the supplied keys or use the three-position lock to set open, closed or locked states. Arrange bills under the metal clips and place coins in the flexible coin compartments; use the front access slot to drop checks or receipts without opening the drawer.

Recommendations

Use the drawer with compatible receipt printers and ensure the printer’s cash-drawer output is configured to 12 V or 24 V as required. Keep keys in a secure location and periodically check the RJ12 connection and micro switch for reliable operation.
