CalDigit TS4 gris hub USB 98W Power Delivery 100000 Mbit/s Ethernet

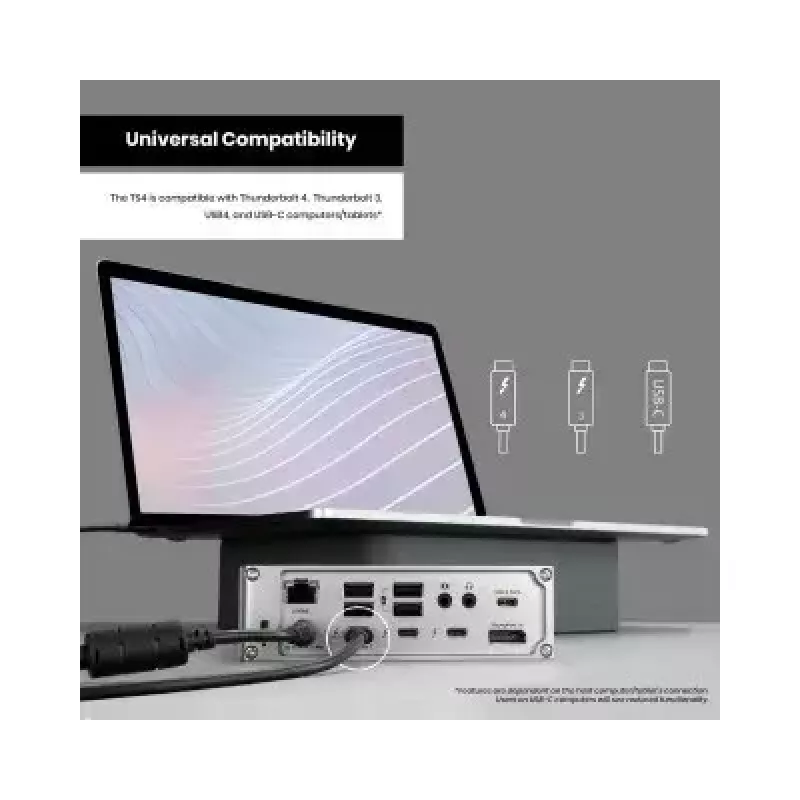

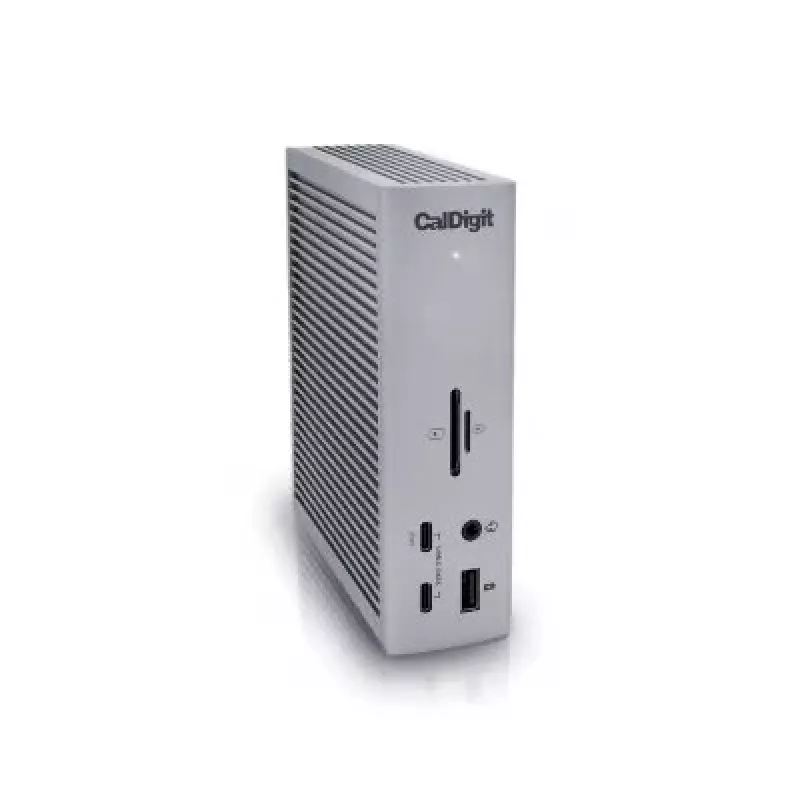

The CalDigit TS4 Grey is a Thunderbolt 4 dock offering extensive connectivity in a compact chassis (42mm x 113mm x 141mm). It provides up to 98W Power Delivery, a 2.5GbE Ethernet connection, and a total of 18 ports including multiple USB Type-A ports and Thunderbolt/USB-C interfaces. The dock supports high-resolution external displays — up to a single 8K monitor or dual 6K at 60Hz on Apple M1 Pro/M1 Max systems, and dual 4K at 60Hz on Intel Macs, Windows, and Chrome OS devices.

Advantages

The TS4 delivers a high number of ports for connecting peripherals, storage, and networks while supplying substantial power to charge laptops and devices. Its 2.5GbE Ethernet and Thunderbolt 4 connectivity enable faster data transfers and flexible display arrangements. The grey finish and compact footprint suit desktop setups where space and cable management are important.

Suitable for

• Expanding laptop ports for home or office workstations
• Connecting multiple external drives and USB peripherals
• Connecting high-resolution external monitors for content creation
• Wired network connection with higher bandwidth than standard Gigabit Ethernet

Key specifications

• Power Delivery: up to 98W
• Ethernet: 2.5GbE (100000 Mbit/s listed in product data)

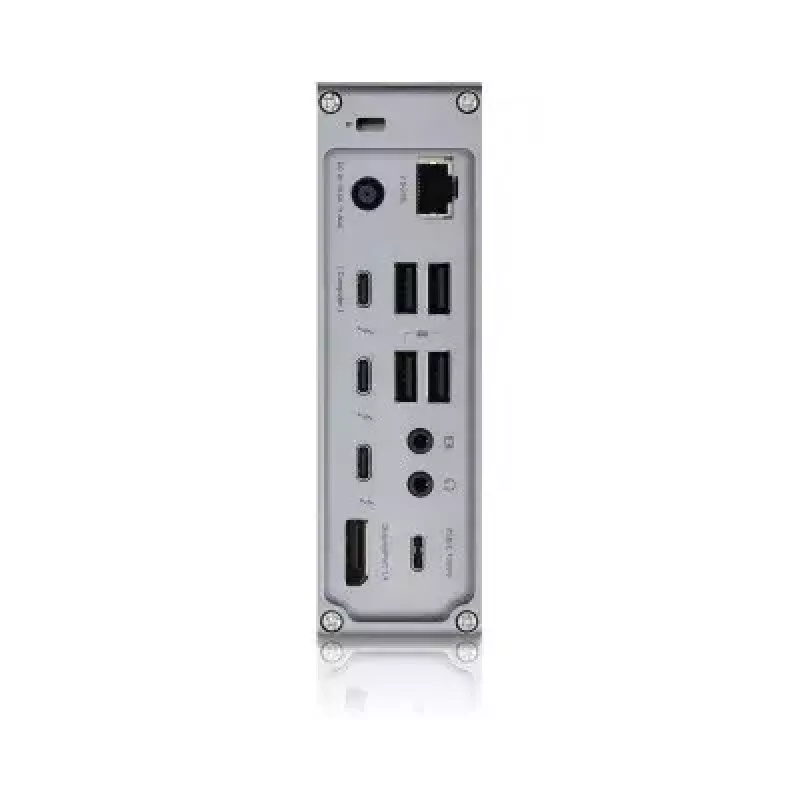

• Ports: 18 total, including 5 × USB 3.2 Gen 1 Type-A and multiple Thunderbolt/USB-C ports
• Supported displays: single up to 8K; dual 6K@60Hz (Apple M1 Pro/M1 Max); dual 4K@60Hz (Intel Macs, Windows, Chrome OS)
• Dimensions: 42 mm × 113 mm × 141 mm
• Weight: 0.64 kg
• Colour: Grey

How to use

Connect the TS4 to your host computer using the supplied Thunderbolt/USB-C cable. Attach external monitors to the dock’s video outputs according to your computer’s supported display configuration. Plug USB devices, external storage, and network cable into the appropriate ports. The dock will provide power delivery to compatible laptops; ensure your laptop accepts up to 98W input for full charging speed.

Recommendations

Place the dock on a stable surface near your computer to minimise cable length. For best display performance, use certified Thunderbolt/USB-C cables and confirm your host system’s display and power delivery capabilities before connecting multiple high-resolution monitors.
