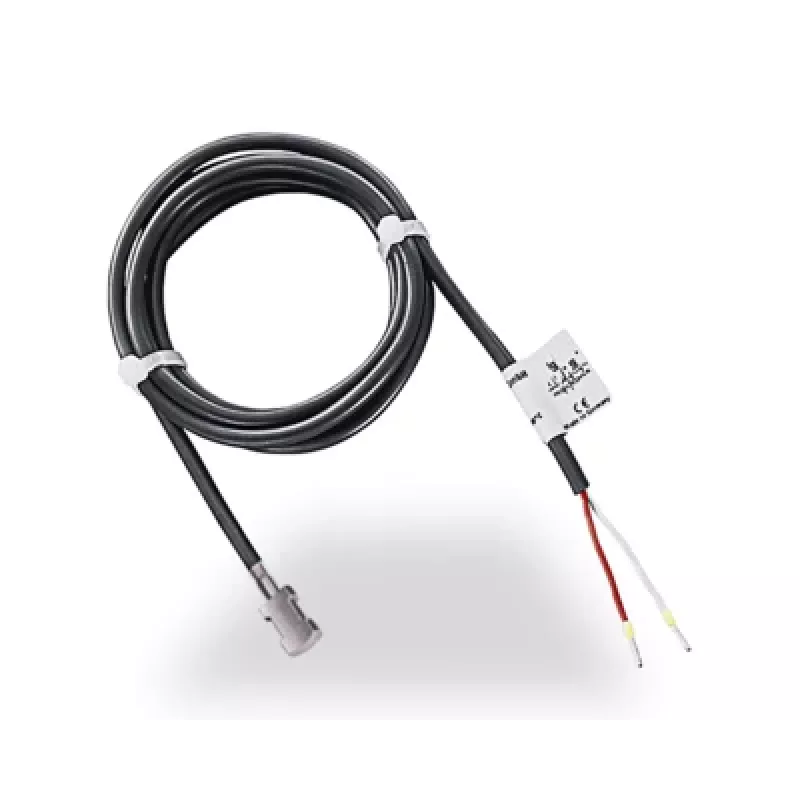

MDT SCN-PTAN3.01 sensor de temperatura PT1000 para montaje en superficie

Heating installers and building automation technicians use the MDT SCN-PTAN3.01 to measure surface temperatures on pipes, tanks, or other objects. The PT1000 sensor element delivers precise values to MDT KNX analog input modules or any PT1000-compatible controller.

Key specifications

• Sensor type: PT1000 (1000 Ohm at 0°C)
• Accuracy class: Class B (DIN EN 60751)
• Measurement range: -30°C to +100°C
• Mounting: surface / pipe mounting
• Connection: 2-wire, 3 m silicone cable, open wire ends
• Sensor head: aluminum, IP65

Why choose it

The silicone cable stays flexible even in cold environments, and the aluminum head transfers heat quickly for responsive readings. Class B accuracy ensures reliable data for heating control and monitoring.

Ideal use cases

• Surface temperature measurement on heating pipes
• Monitoring of boilers, heat exchangers, or storage tanks
• Integration with KNX building automation systems

Good to know

The sensor is designed for surface mounting and connects directly to analog input modules that support PT1000 elements. No additional signal conditioning is required.
