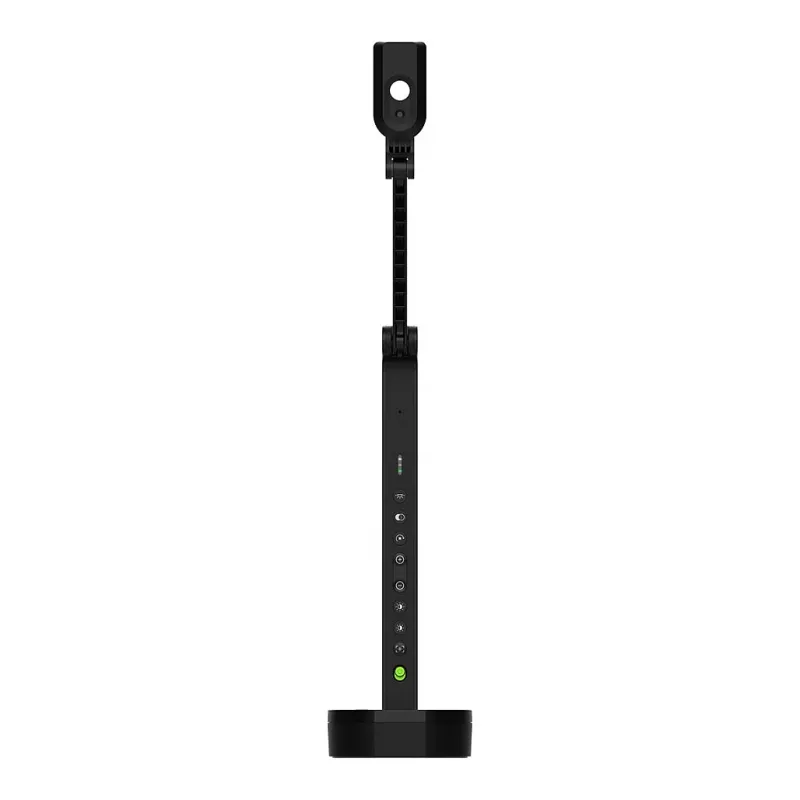

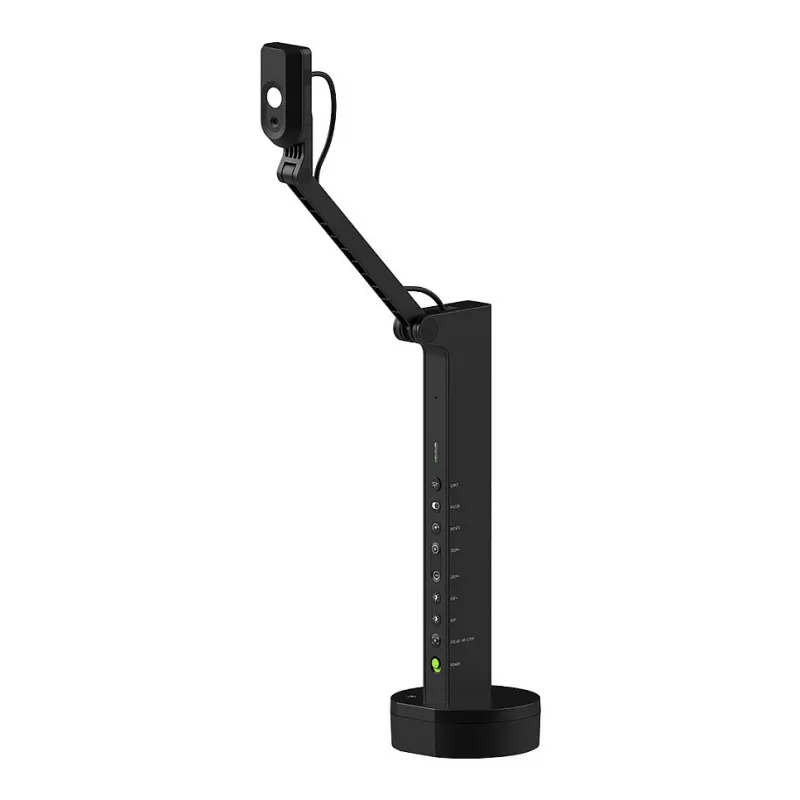

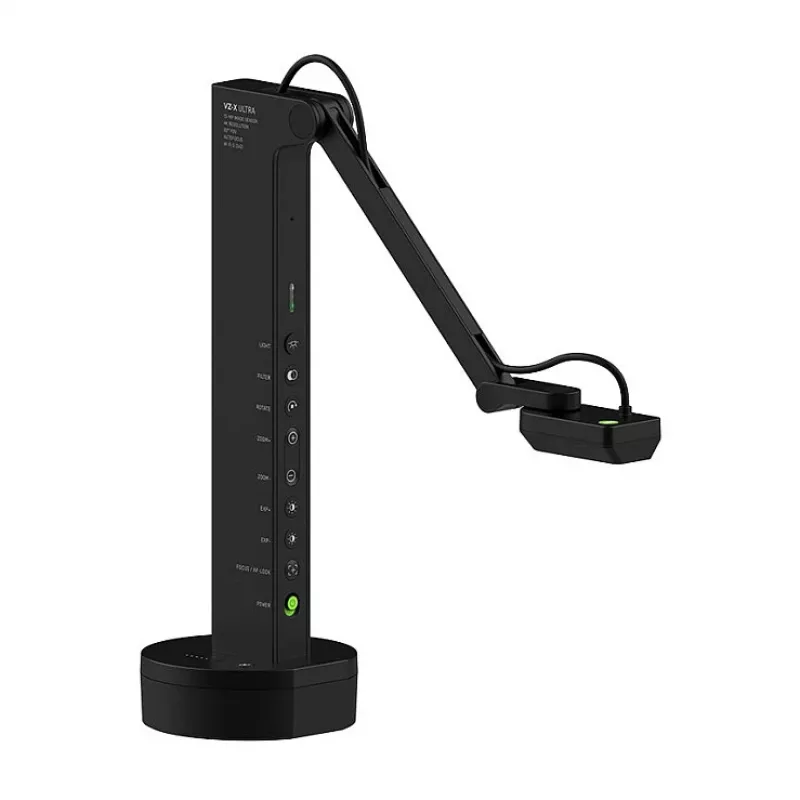

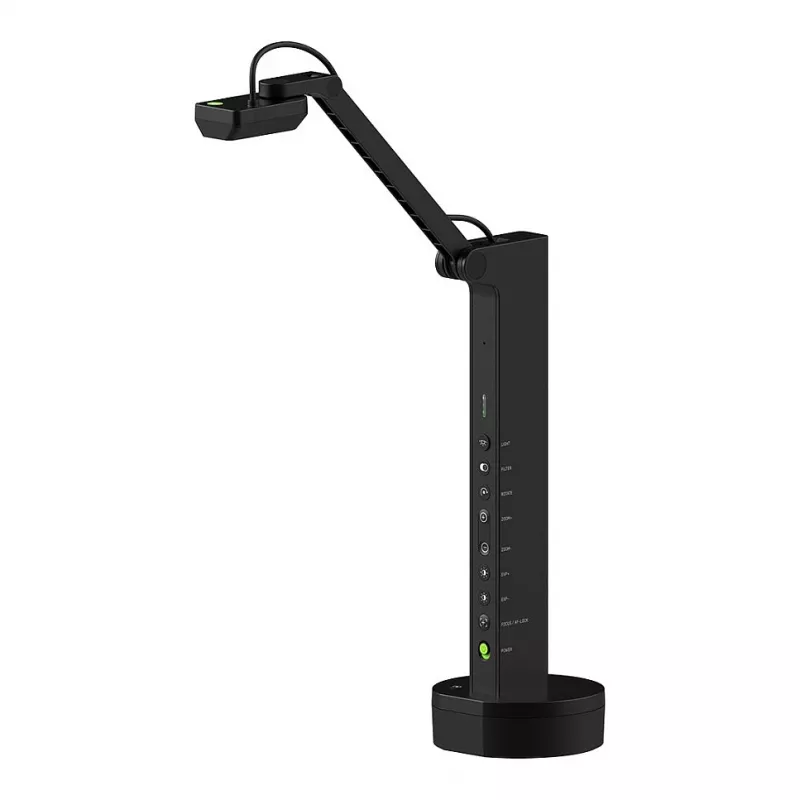

Cámara de documentos IPEVO VZ-X ULTRA negra, CMOS 25.4/3,06 mm, 4K 3840×2160, USB/HDMI/Wi‑Fi

IPEVO VZ-X ULTRA Black is a compact document camera with a 25.4 / 3.06 mm (1/3.06") CMOS sensor and up to 3840×2160 (4K) video resolution. The camera supports USB Type-C, HDMI and Wi‑Fi connections and includes a 4K wireless display receiver in some versions for direct projection to HDMI displays without a PC. With 13MP imaging capability, 4x digital zoom, a maximum focal length of 3.46 mm and an auto-focus system, the VZ-X ULTRA is designed for classroom use, remote teaching, presentations and close-up demonstrations. The unit is compact and portable (108×116×322 mm) and weighs approximately 1.172 kg, with typical power consumption around 5 W.

Advantages

Multiple connectivity options (USB Type-C, HDMI, Wi‑Fi) provide flexible installation choices and fast switching between wired and wireless setups. The included 4K wireless display receiver (in applicable versions) enables direct casting to HDMI-compatible displays without a computer, reducing setup time. A high-resolution 13MP sensor and 4K output capture fine detail for text, images and objects, while the swiveling head and multi-jointed arm allow captures from varied heights and angles. The device’s lightweight, reinforced thermoplastic construction balances durability with portability for frequent classroom or presentation use.

Suitable for

• Classroom instruction and lecturing where live close-ups of documents or objects are required
• Remote teaching or hybrid classrooms that need clear camera input for video conferencing
• Business presentations and boardroom demonstrations with live object display
• Workshops, labs and maker spaces for showing detailed procedures and small parts

Key specifications

• Image sensor type: CMOS
• Optical sensor size: 25.4 / 3.06 mm (1/3.06")
• Maximum video resolution: 3840×2160 (4K)
• Still image capability: up to 13 megapixels
• Zoom: 4x digital zoom
• Maximum focal length: 3.46 mm
• Auto-focus: supported
• Interfaces: USB Type-C, HDMI, Wi‑Fi (wireless casting; 4K receiver included in some versions)
• Dimensions (approx.): 108×116×322 mm
• Weight (approx.): 1.172 kg
• Power consumption: ~5 W
• Colour: Black

How to use

Place the VZ-X ULTRA on a stable surface or mount it as required, then extend and position the multi-jointed arm and swiveling head to frame the document or object. Connect to a host device using the USB Type-C cable for a wired connection, or connect via HDMI to a display. For wireless projection, pair the camera with the included 4K wireless display receiver by plugging the receiver into an HDMI display and using the camera’s Wi‑Fi pairing function; no PC is required for direct casting when using the receiver. Adjust focus and zoom via the camera controls or compatible software, and verify the image on the display before starting a lesson or presentation.

Recommendations

For best image clarity, ensure adequate lighting on the subject and keep the camera head steady when capturing fine details. Use the auto-focus feature for routine operation, and switch to manual focus within supported software when precise focus control is needed. When using wireless casting, place the wireless receiver and camera within recommended line-of-sight and avoid dense Wi‑Fi traffic to minimize interference.
