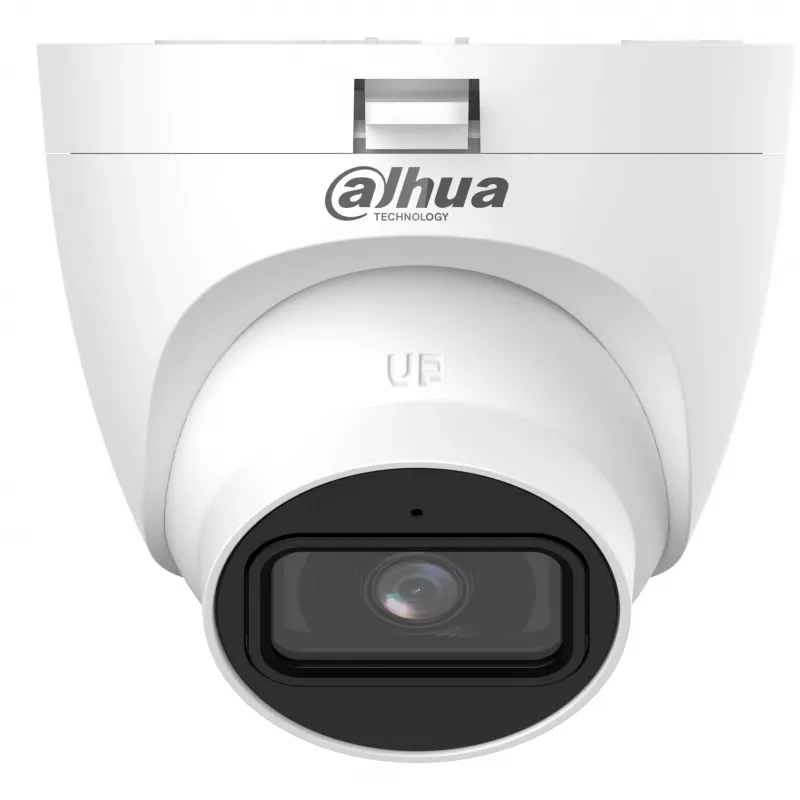

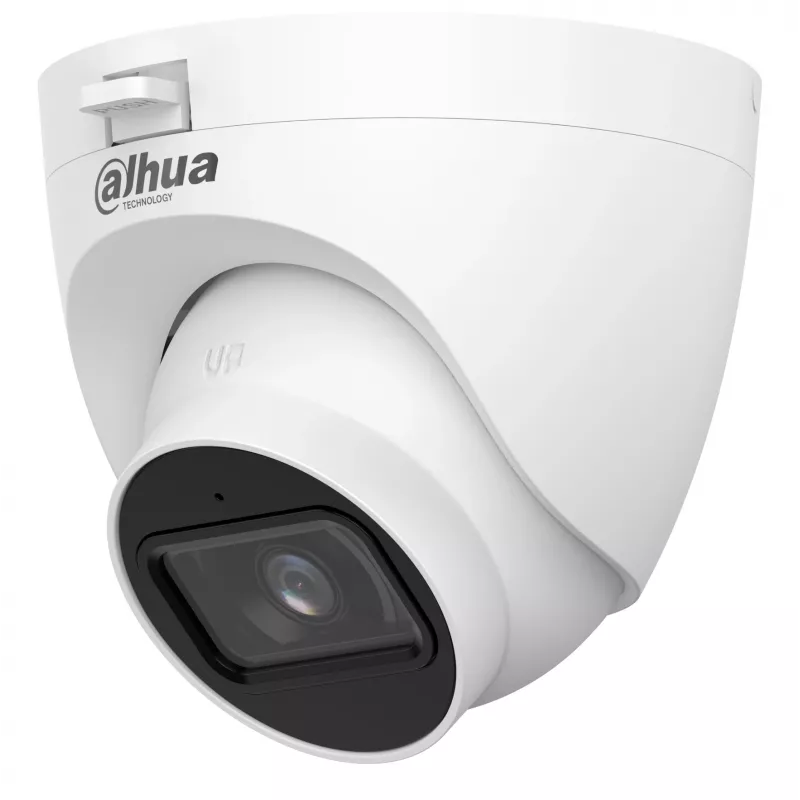

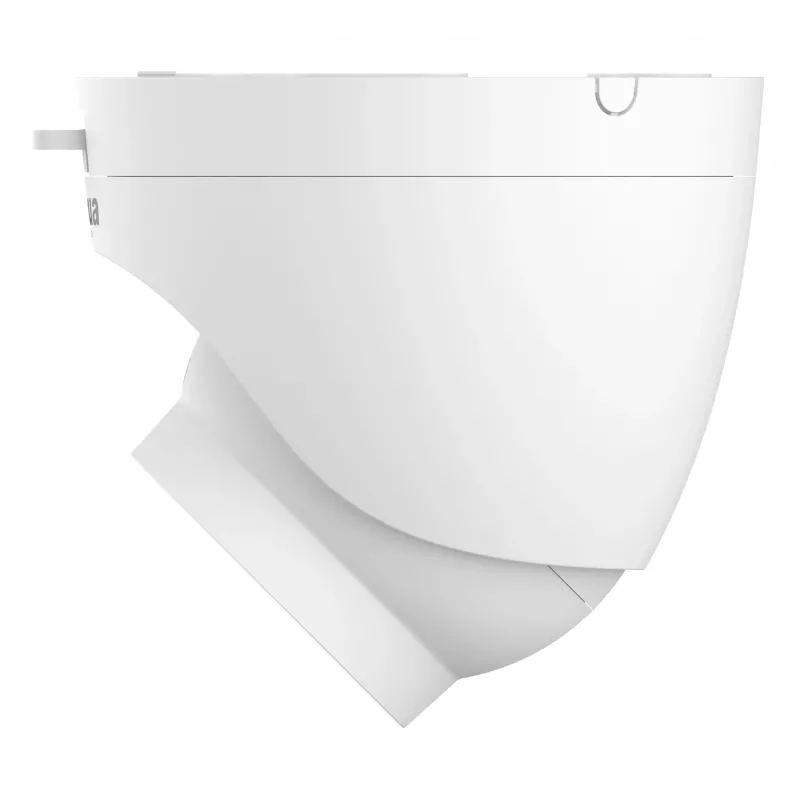

Cámara de seguridad Dahua Technology HAC-HDW1500TRQ-A-0280B-S3-DIP turret cámara CCTV para interior 2880 x 1620 píxeles techo/pared/mástil

DAHUA HAC-HDW1500TRQ-A-0280B-S3-DIP is a wired indoor turret CCTV camera engineered for ceiling, wall or pole mounting. It delivers 2880 × 1620 (5 MP) resolution from a CMOS sensor with a 3.6 mm fixed lens and a wide horizontal field of view of 113.3°. The camera supports low-light operation down to 0.001 lx, offers Starlight sensitivity and 25 m infrared illumination for night vision, and provides flexible signal output with CVI/CVBS/AHD/TVI switchable modes. The turret housing and quick-to-install eyeball design simplify installation and adjustment for retail, office and warehouse environments.

Advantages

The camera combines high-resolution 5 MP imaging with Starlight technology and 3D noise reduction to produce clearer images in low-light conditions while maintaining manageable bandwidth through 16:9 video output at up to 25 fps. A built-in microphone captures ambient audio, and the 3.6 mm fixed lens offers a wide 113.3° horizontal view suitable for monitoring medium-sized indoor spaces. The switchable video standards ensure compatibility with a variety of DVRs and existing analog infrastructures. The compact, lightweight design and quick-to-install turret mechanism reduce installation time and allow precise aiming including 360° rotation capability.

Suitable for

• Retail shops and point-of-sale monitoring
• Office interiors and common areas
• Storage rooms and small warehouse aisles
• Corridors and entrance halls

Key specifications

• Image sensor: CMOS, 5 MP (2880 × 1620 pixels)
• Lens: 3.6 mm fixed focal length (2.8 mm optional)
• Maximum frame rate: up to 25 fps at 5 MP (16:9 output)
• Minimum scene illumination: 0.001 lx (Starlight)
• Infrared illumination range: up to 25 m
• Horizontal field of view: 113.3°
• Night mode: IR night vision with 25 m range
• Video output modes: CVI / CVBS / AHD / TVI (switchable)
• Audio: built-in microphone
• Protection class: IP50 (indoor use)
• Power supply: 12 VDC
• Mount type: turret for ceiling, wall or pole mounting
• Color: white
• Weight: 170 g

How to use

Mount the turret camera on a stable ceiling, wall or pole bracket using the supplied hardware and position the eyeball for the desired coverage. Connect the camera to a compatible DVR or monitoring device using the appropriate coaxial cable and select the required video standard (CVI/CVBS/AHD/TVI). Provide 12 VDC power and verify image framing, focus (fixed lens), and audio input via the recorder or monitor. For best performance, orient the camera to avoid direct light sources in the frame and secure all cable connections to prevent interference.

Recommendations

Install at a height and angle that optimize coverage of the monitored area while keeping the subject within the 113.3° horizontal field of view. For low-light scenarios, rely on Starlight performance and IR illumination up to 25 m, and use the 2.8 mm optional lens when a wider field of view is required. Ensure indoor placement in dry environments in accordance with the IP50 rating and use a regulated 12 VDC power supply to maintain stable operation.
