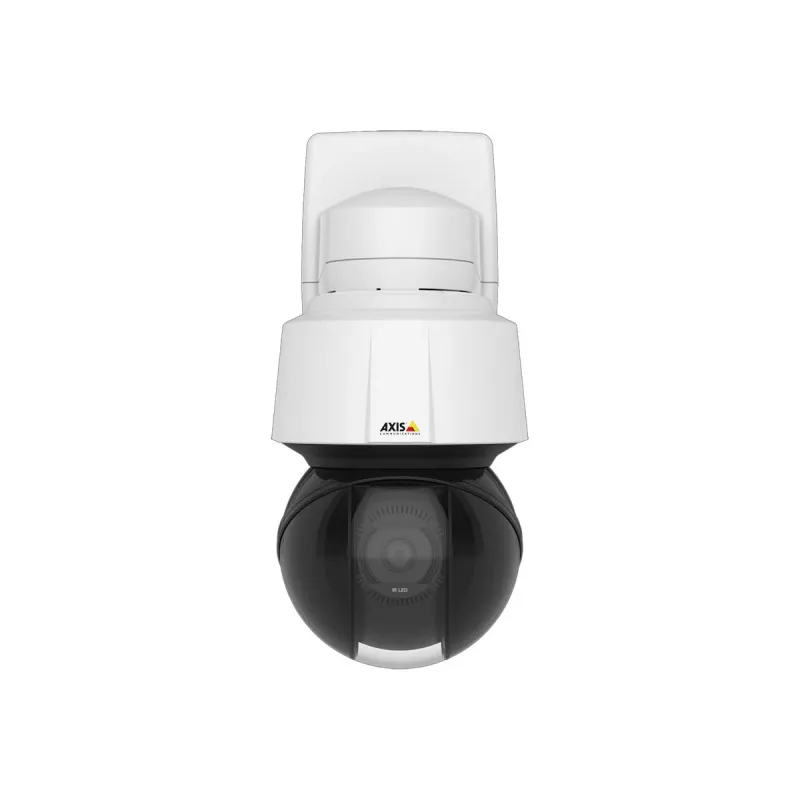

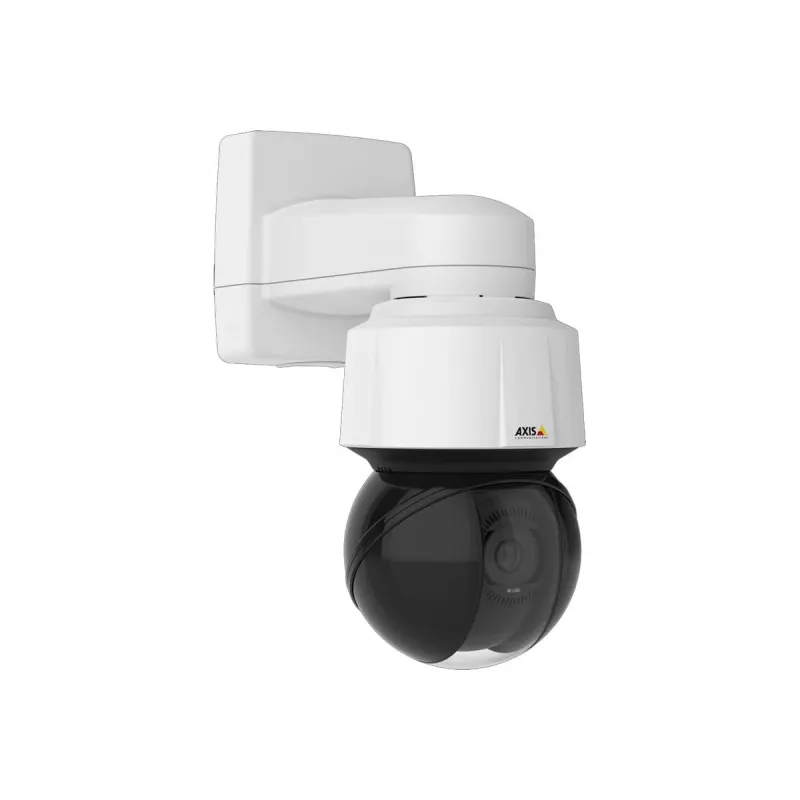

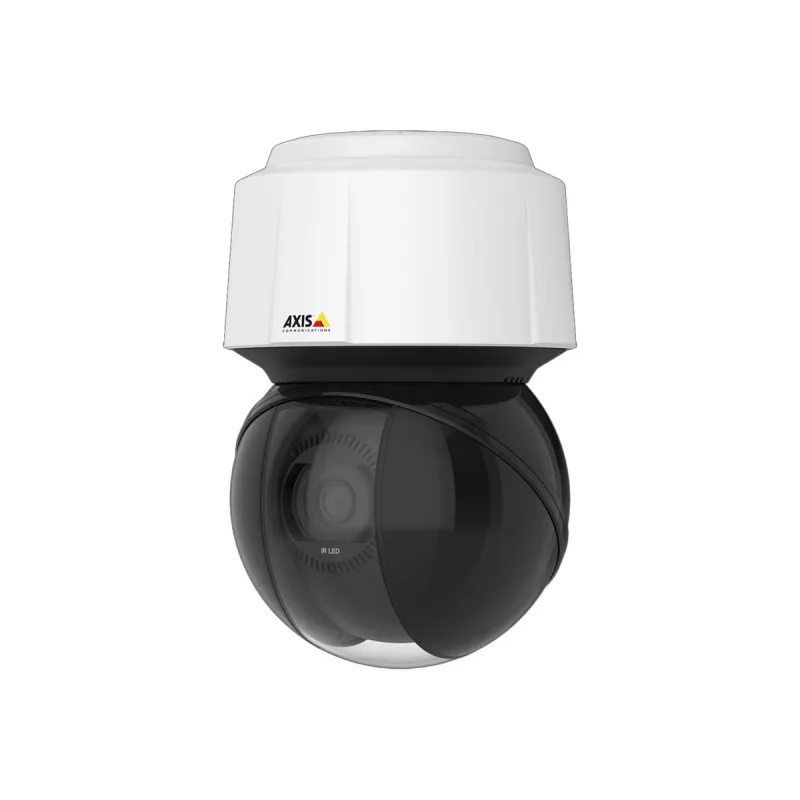

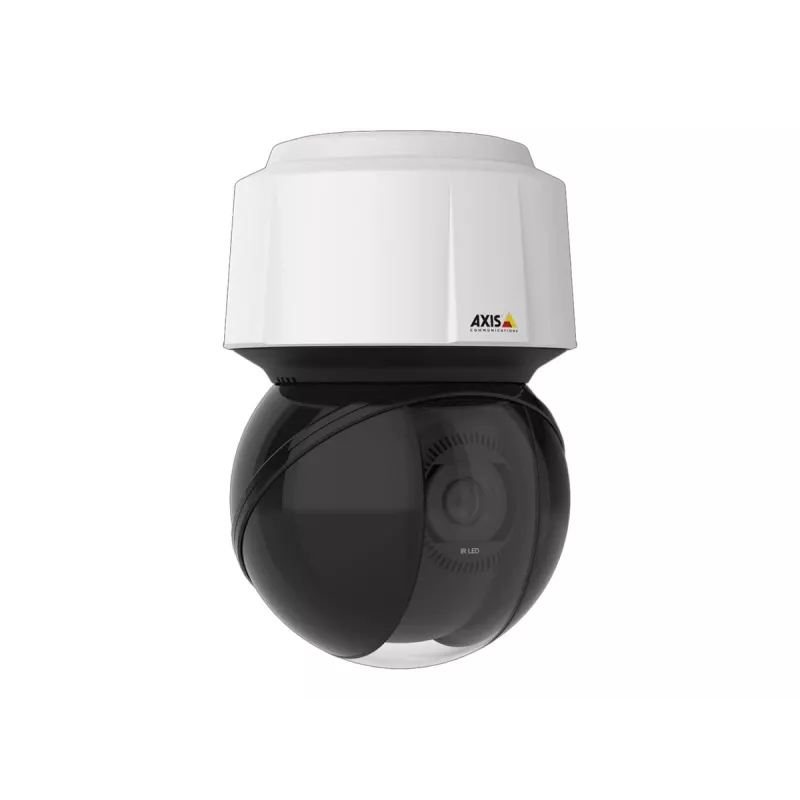

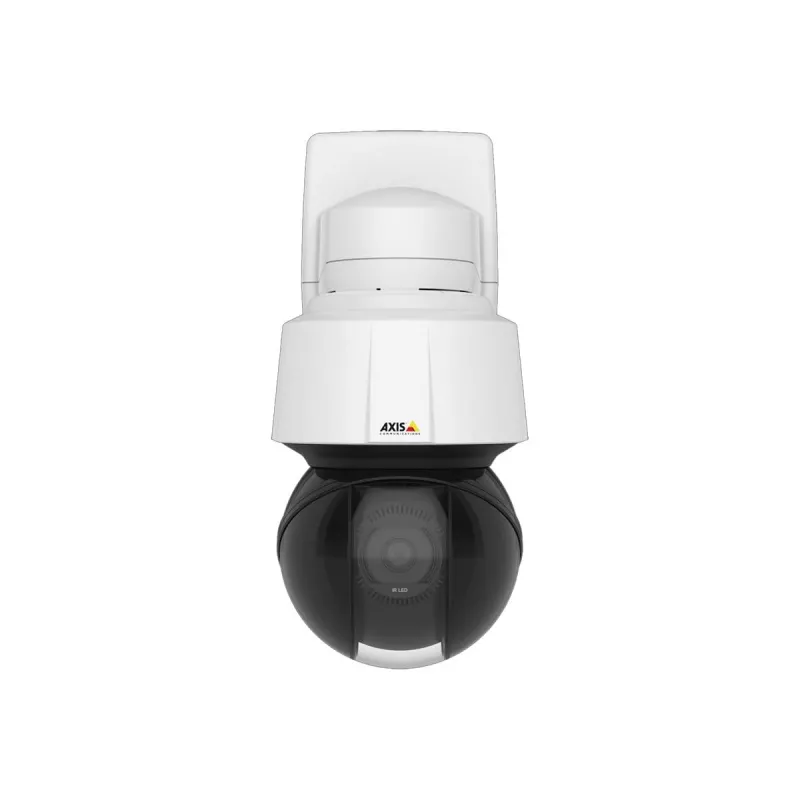

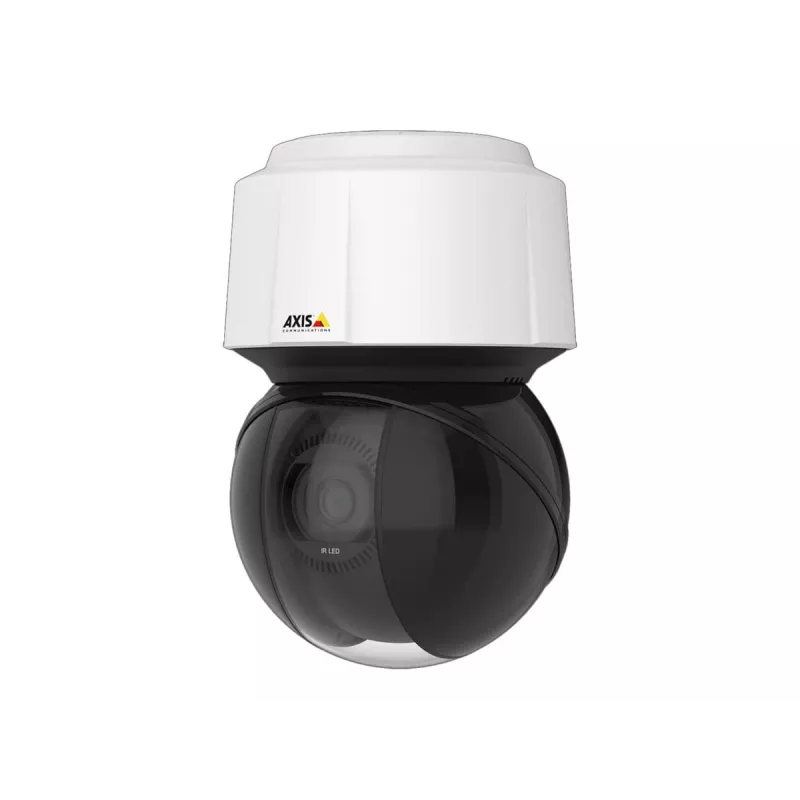

Cámara de seguridad IP Axis 01958-003

AXIS Q6135-LE (model 01958-003) is an outdoor dome IP security camera offering HDTV 1080p resolution and 32x optical zoom for detailed surveillance. The camera combines OptimizedIR illumination with a range up to approximately 250 m (820 ft) depending on the scene, and Lightfinder 2.0 to capture clear images in low-light conditions. Sharpdome design preserves image quality up to 20° above the horizon, while a -90° to 20° tilt range and a 58.3° horizontal viewing angle provide flexible coverage. The unit supports wired Ethernet connectivity, wall mounting, and delivers up to 60 fps for smooth video.

Advantages

The camera provides high-resolution 1920 x 1080 imaging with strong optical and digital zoom (32x optical, 12x digital) for close-up views without losing detail. Built-in OptimizedIR and Lightfinder 2.0 enhance performance in darkness and challenging lighting. Sharpdome reduces distortion at upward angles, and features such as orientation aid, autotracking 2 with click-and-track, and privacy masking with mosaic increase operational control. Security features include signed firmware, secure boot and TPM module. Efficient bandwidth and storage use are supported via Axis Zipstream with H.264 and H.265 encoding.

Suitable for

Key specifications

How to use

Install the camera on a suitable outdoor wall mount at the required height and angle, ensuring clear line of sight for the intended coverage area. Connect to the network via Ethernet and configure power (PoE) and IP settings according to your network policies. Use the camera’s zoom and tilt controls to frame the scene; enable OptimizedIR and Lightfinder modes for nighttime or low-light conditions. Configure autotracking 2 and orientation aid for active monitoring, and set privacy masking areas where needed. Apply Axis Zipstream and select H.264 or H.265 depending on your storage and bandwidth requirements.

Recommendations

Place the camera to maximize the effective IR range and avoid obstructions in the line of sight. Regularly update firmware and use signed firmware plus secure boot and TPM to maintain device security. For best image quality at long distances, calibrate zoom and focus after installation and test autotracking performance under real operating conditions.
