Cámara de seguridad IP Hikvision DS-2CD2663G2-LIZS2U 6 MP, 2,8–12 mm varifocal, IR 60 m, WDR 120 dB, IK10, IP67

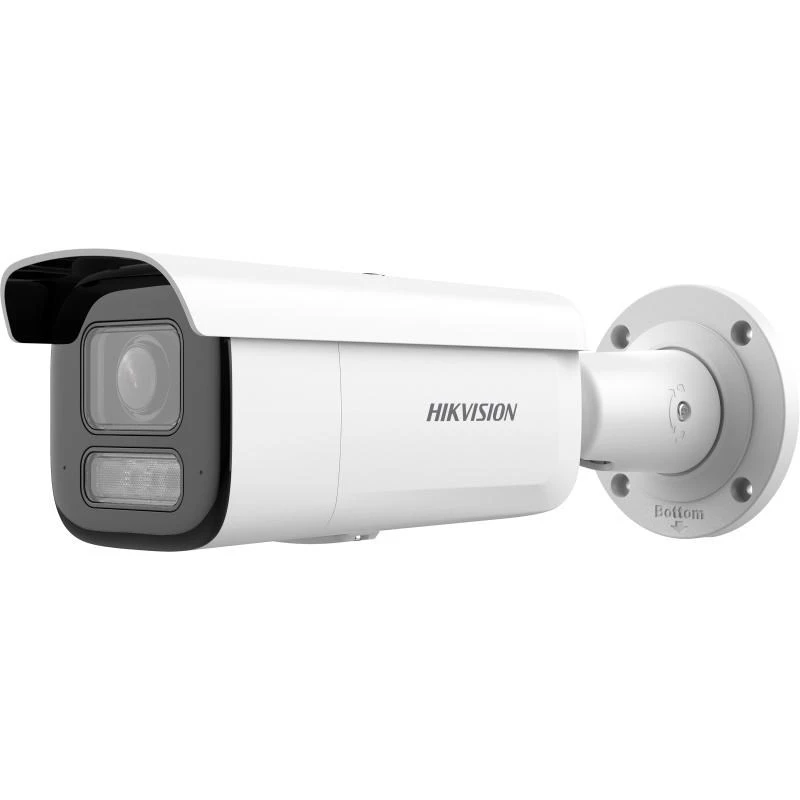

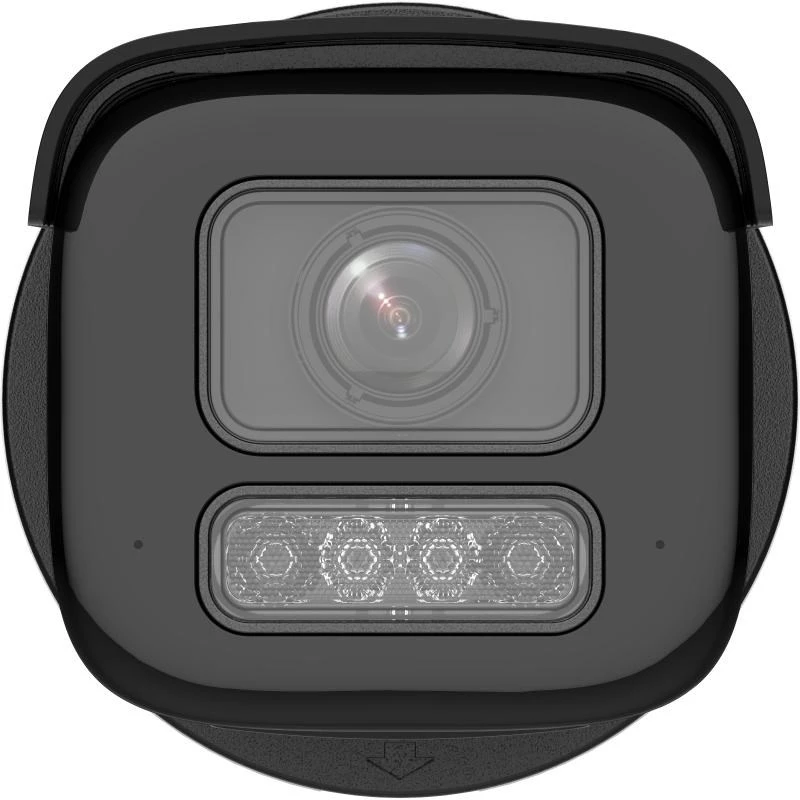

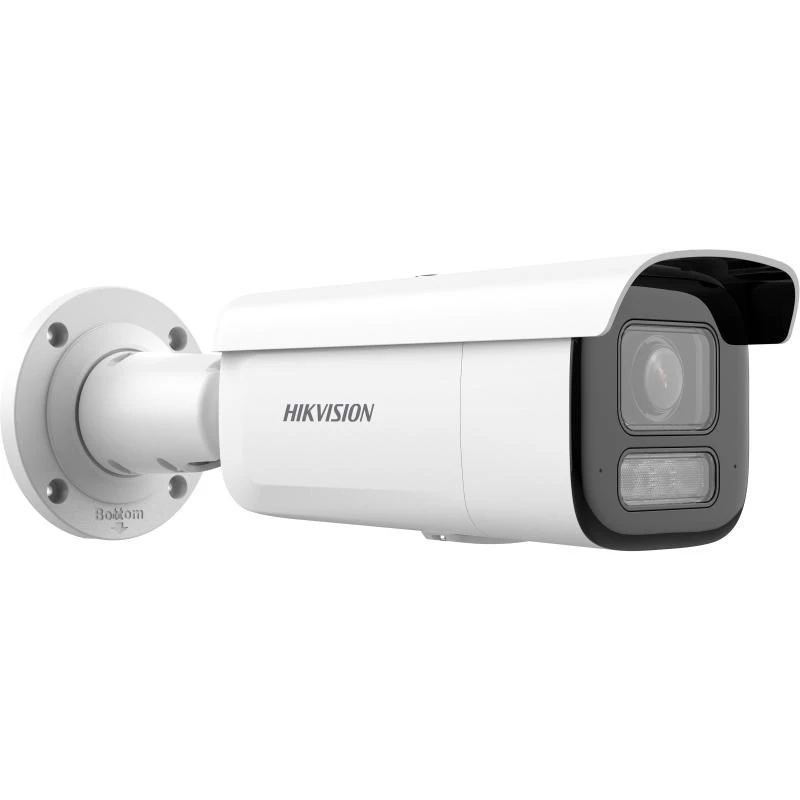

Hikvision DS-2CD2663G2-LIZS2U is an outdoor IP security camera with a 6 MP progressive CMOS sensor and a motorized 2.8–12 mm varifocal lens. The camera delivers high-resolution daytime images and reliable low-light performance with IR illumination up to 60 m and a minimum illumination of 0.005 lx. Designed for outdoor installations, the housing is made of aluminium and meets IK10 impact and IP67 dust/water ingress protection ratings. The unit supports PoE (IEEE 802.3af) or 12 V DC power and provides onboard microSD storage up to 512 GB, onboard audio with a built-in microphone, and network compatibility via ONVIF profiles.

Advantages

The camera combines a 6 MP sensor with H.264+ compression and wide dynamic range (120 dB) to capture clear images in scenes with strong contrast while keeping bandwidth and storage requirements lower. Motorized varifocal optics (2.8–12 mm) allow remote adjustment of field of view for flexible coverage. Rugged aluminium housing with IK10 and IP67 ratings ensures durability in harsh outdoor environments. Integrated features such as motion detection, privacy masking, heartbeat, password protection and support for microSD cards up to 512 GB simplify standalone or networked operation.

Suitable for

• Perimeter and exterior building surveillance
• Parking lots and vehicle access control
• Warehouse yards and loading areas
• Public spaces and entrances requiring vandal-resistant cameras

Key specifications

• Image sensor: 6 MP CMOS, 1/2.4" progressive scan
• Lens: Motorized varifocal 2.8–12 mm, diagonal viewing angle up to 123°
• Video: H.264+ compression, ROI encoding, bit rate 32 Kbps–16 Mbps
• Wide Dynamic Range: 120 dB
• Night vision: IR LEDs (850 nm) with effective range up to 60 m; minimum illumination 0.005 lx
• Storage: microSD card support up to 512 GB
• Audio: Built-in microphone, sample rates up to 48 kHz, SNR 52 dB, noise filter
• Network: Wired Ethernet 10/100 Mbps, ONVIF Profile S/G/T, up to 32 concurrent users, QoS support
• Power: PoE (IEEE 802.3af) or 12 V DC, maximum power consumption 13 W
• Environmental: Operating temperature -30 to 60 °C, operating humidity 0–95%
• Mechanical: Aluminium housing, IK10 impact resistance, IP67 ingress protection
• Mounting & movement: Pan 0–360°, tilt 0–90°, rotation 355°; shutter 1/3–1/100000 s

How to use

Install the camera on a stable surface or suitable mounting bracket using the provided holes and fixings, observing recommended mounting height and orientation to cover the intended area. Connect power via PoE-capable switch or injector (IEEE 802.3af) or use a 12 V DC supply. Connect the Ethernet cable to a network recorder or switch for remote access and configure network settings using the web-based management interface or supported VMS through ONVIF/ISAPI. Adjust the motorized 2.8–12 mm lens remotely to set the desired field of view and focus. If local storage is required, insert a compatible microSD card (up to 512 GB) while the unit is powered down or per manufacturer guidance.

Recommendations

Position the camera to avoid direct exposure of the lens to heavy spray or sustained water jets; although the device is IP67-rated, correct mounting angle and sealant around cable entries enhance long-term reliability. Regularly check firmware updates and configure motion detection and privacy masking to reduce false alarms and comply with local privacy rules.
