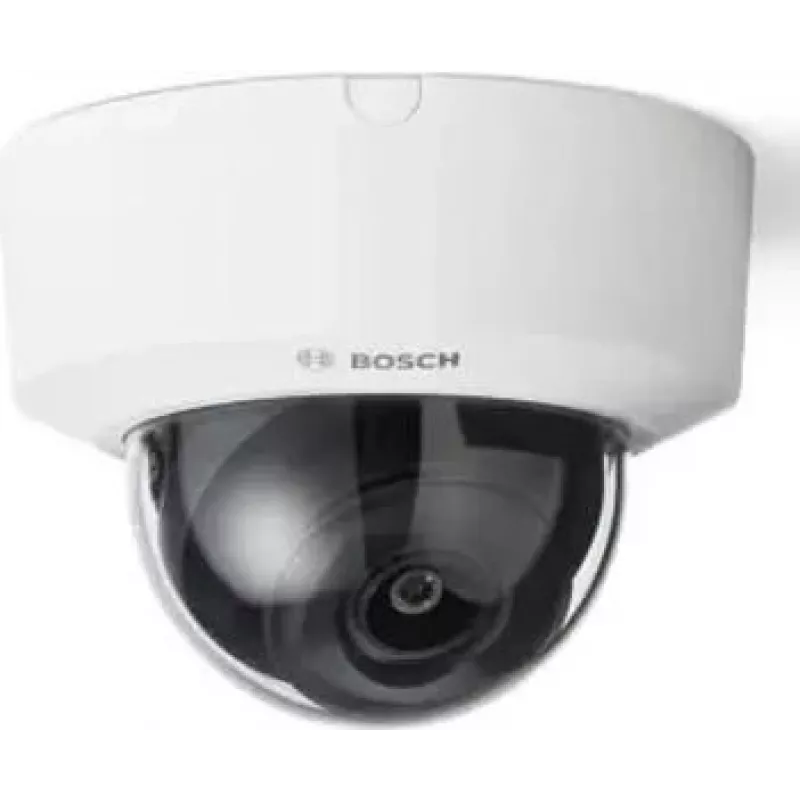

Cámara de vigilancia Bosch NDE-3702-AL IP66 IK10 IR

The Bosch NDE-3702-AL IP66 IK10 IR is a 2MP fixed dome network camera with a 3.3–10.2mm varifocal lens designed for outdoor surveillance. Built to withstand harsh weather and vandal attempts, the camera delivers detailed daytime imagery and infrared-assisted night vision for continuous monitoring. The model supports standard IP network connectivity and is intended for integration into video management systems and professional security installations.

Advantages

This camera combines weather resistance and mechanical robustness to operate reliably in exposed outdoor environments. The varifocal 3.3–10.2mm lens allows flexible field-of-view adjustment on-site to match coverage needs without replacing optics. Infrared illumination extends usable sensitivity into low-light and no-light conditions, while the 2MP sensor provides sufficient resolution for scene recognition and forensic review. The dome form factor and IK10 rating reduce vulnerability to tampering and ensure stable alignment over time.

Suitable for

• Perimeter and entrance monitoring for commercial and industrial sites
• Parking lots and access roads requiring all-weather surveillance
• Outdoor walkways, loading bays and building facades
• Integration into IP-based CCTV systems and remote monitoring setups

Key specifications

• Image sensor resolution: 2 megapixels
• Lens type and focal length: varifocal 3.3–10.2 mm
• Environmental protection: IP66-rated housing for dust and water resistance
• Impact protection: IK10-rated dome for high vandal resistance
• Low-light support: built-in infrared illumination for night vision
• Form factor: fixed dome suitable for ceiling or wall mounting
• Network: standard IP connectivity for integration with video management systems

How to use

Mount the camera on a stable ceiling or wall surface using appropriate anchors for the installation substrate. Adjust the varifocal lens to achieve the desired field of view before finalising the mounting bracket. Connect the camera to the network and configure IP settings, stream profiles and motion detection parameters within a compatible video management system or the camera’s web interface. Position infrared settings and exposure to balance image clarity at night while avoiding excessive backscatter from reflective surfaces.

Recommendations

For best performance, install the camera under a small canopy or recessed area to reduce direct exposure to heavy precipitation and minimize infrared reflections from nearby glass or shiny surfaces. Regularly inspect the dome cover for dirt and clean with non-abrasive materials to maintain image quality. Ensure firmware is up to date and restrict network access according to security best practices.
