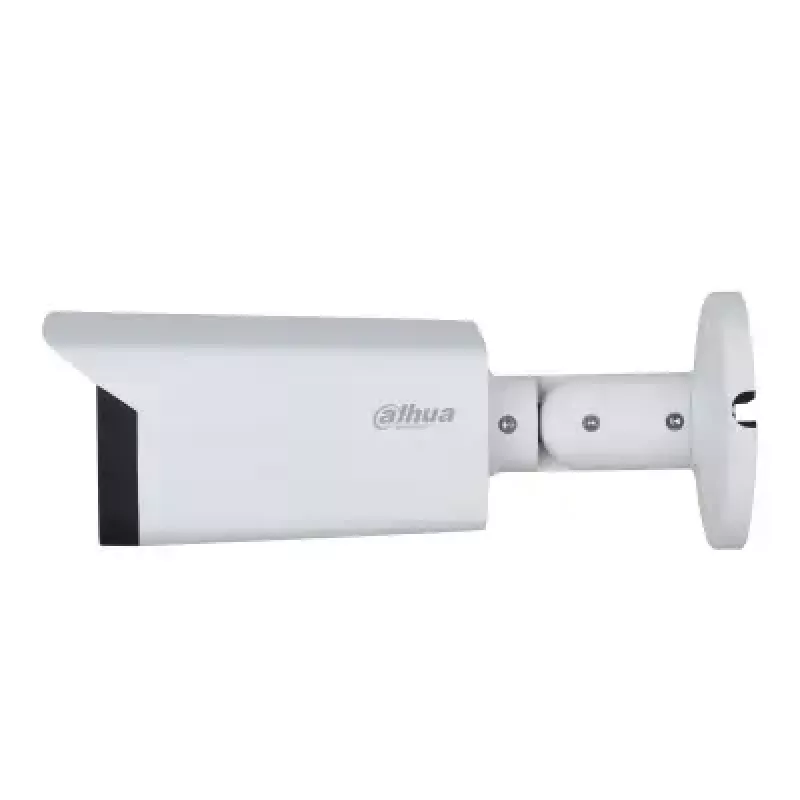

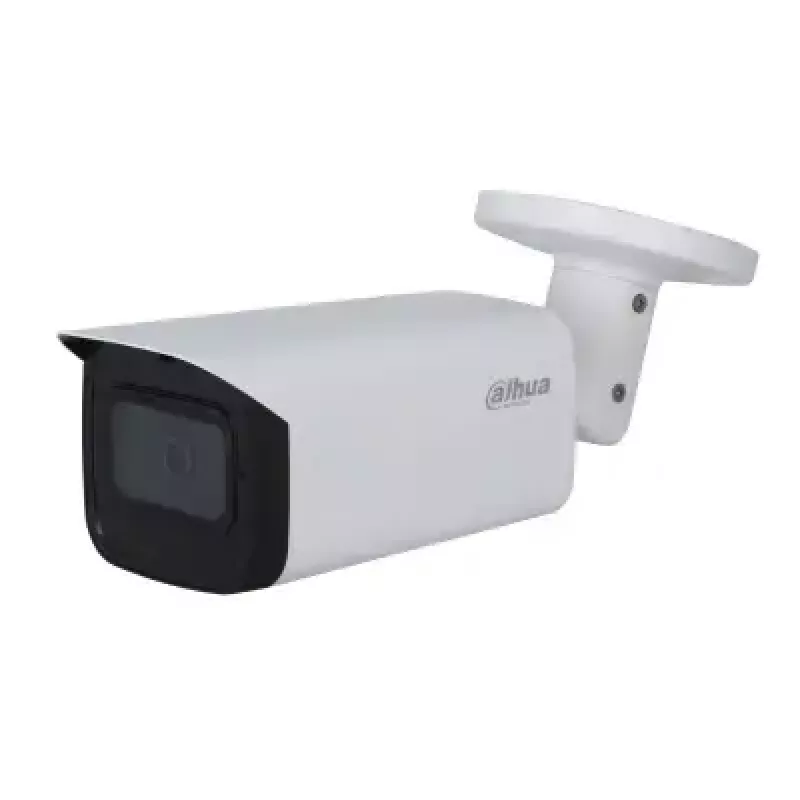

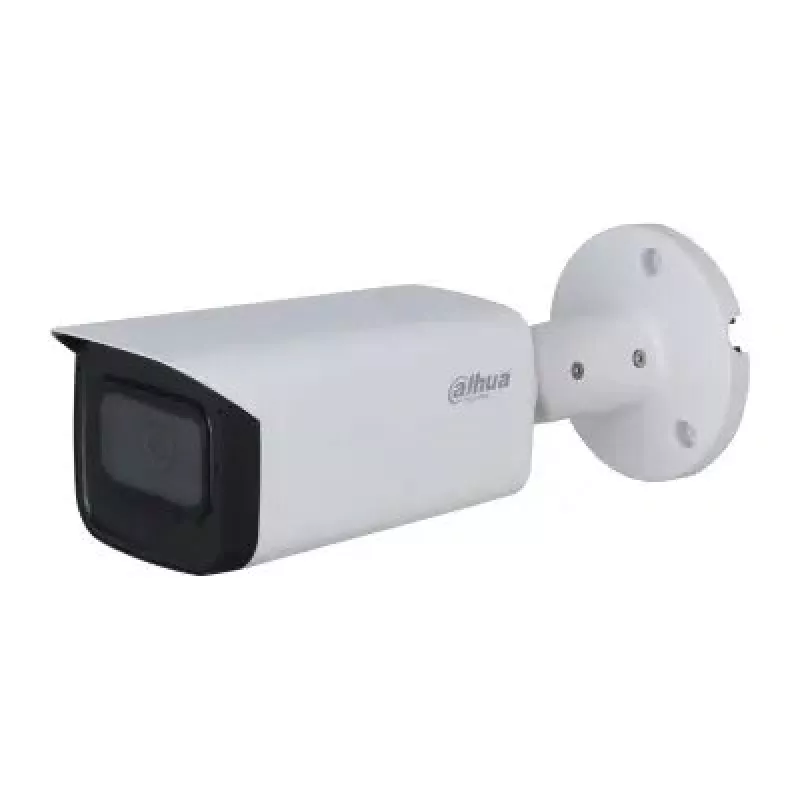

Cámara de vigilancia CCTV tipo bala Dahua Technology Pro DH-HAC-HFW2501TU-A para exterior 2880 x 1620 píxeles techo/pared/mástil

Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Pro series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with 120 dB true WDR and a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance make the camera an ideal choice for SMB solutions.

4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.

Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700 m for 5MP HD video via coaxial cable, and up to 300 m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.

Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Starlight
With the adoption of large sized high performance sensor, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.

Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.

Smart IR
The camera is designed with IR LED illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.

Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology,vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimizes both the bright and dark areas of ascene at the same time to provide usable video.

Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3DNR technology allows remarkable noise reduction with little impact to sharpness,especially under limited lighting condition. Besides, the advanced 3DNR effectively decreases the band width and saves the storage space.

Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments.
With working temperature range of –40 °C to +60 °C (–40 °F to +140 °F), the camera is designed for extreme temperature environments.
Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

Dahua Technology Pro DH-HAC-HFW2501TU-A. Type: CCTV security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.001 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 92°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 32 m, Recognize distance: 16 m

How to use

Install the camera on a stable ceiling, wall or pole bracket using appropriate fasteners for the mounting surface and route the coaxial cable to the recorder or power source. Connect video, power and data over the coaxial cable according to the HDCVI setup, and configure the recorder or camera OSD for resolution, exposure, WDR and IR settings. Position the camera to cover the intended field of view and verify focus and IR performance in low-light conditions. If the installation supports audio, connect the audio input where applicable and confirm audio transmission on the recorder.

Recommendations

For reliable long-distance transmission, use quality RG59/6 coaxial cable and follow Dahua guidelines for maximum cable lengths. Clean the camera window periodically and verify seals and cable entry points to maintain IP67 protection. When deploying in extreme climates, verify power stability and consider surge protection to match the camera’s ±30% input tolerance and 4 kV lightning protection rating.
