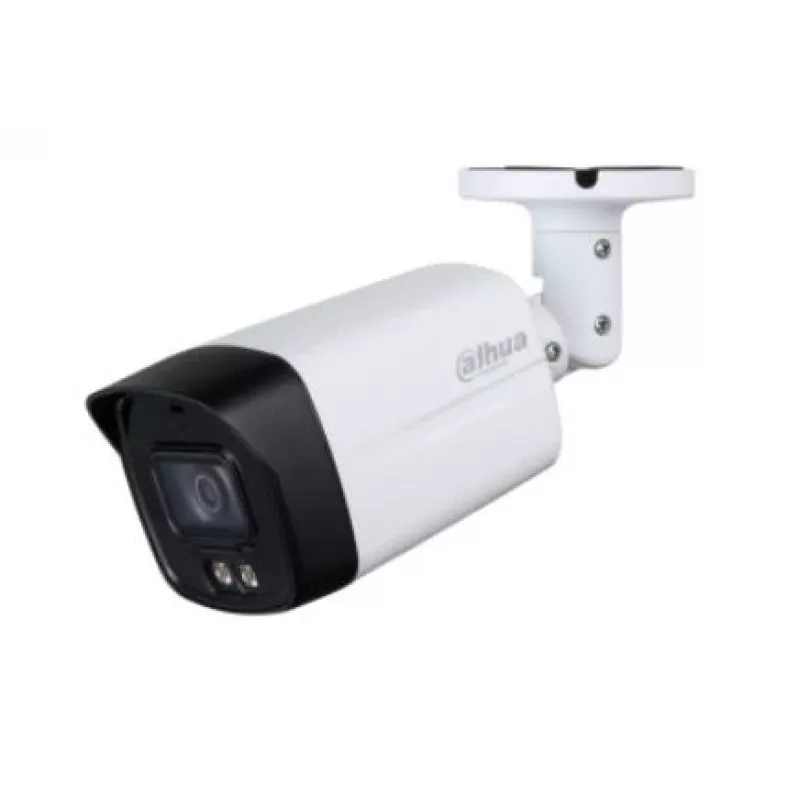

Cámara de vigilancia DAHUA HFW1200TLM-IL-A-0360B-S6 HDCVI 1080P

The DAHUA HFW1200TLM-IL-A-0360B-S6 is an HDCVI 1080P bullet surveillance camera designed for outdoor use with a compact, weather-resistant housing. It delivers full HD video at 1920 × 1080 effective pixels and uses a 3.6 mm fixed lens with M12 mount. The camera supports very low-light operation down to 0.001 Lux and includes a built-in microphone. Power is supplied via 12 VDC ±30%. Physical dimensions are 198.4 × 80.2 × 76.2 mm and the unit is finished in white.

Advantages

The camera provides high-definition HDCVI video with reliable performance in low-light conditions thanks to its low minimum illumination and electronic shutter range. Its compact bullet form factor and sturdy exterior allow flexible installation for outdoor monitoring. Integrated audio capture via the built-in microphone simplifies recording of environmental sound without additional accessories.

Suitable for

• Perimeter and entrance monitoring for homes and small businesses
• Outdoor walkways and parking areas
• General-purpose HD surveillance where HDCVI output is required

Key specifications

• Type: Outdoor bullet camera
• Video interface: HDCVI
• Resolution / Effective pixels: 1920 (H) × 1080 (V) (1080P)
• Focal length: 3.6 mm (fixed), Lens mount: M12
• Minimum illumination: 0.001 Lux
• Electronic shutter speed: PAL 1/25 s–1/100000 s, NTSC 1/30 s–1/100000 s
• Microphone: Built-in
• Power supply: 12 VDC ±30%
• Colour: White
• Dimensions: 198.4 × 80.2 × 76.2 mm

How to use

Mount the camera using appropriate brackets and fasteners for outdoor installations, ensuring the lens has an unobstructed field of view. Connect the video output to a compatible HDCVI recorder or hybrid DVR, and provide 12 VDC power within the specified tolerance. Configure recorder settings for 1080P recording and adjust camera orientation to cover the required area. Use the recorder or monitoring software to manage audio capture from the built-in microphone if needed.

Recommendations

Install the camera under an eave or use a small protective hood to reduce direct rain exposure; verify power supply stability and HDCVI compatibility with your DVR before installation to ensure reliable long-term operation.
