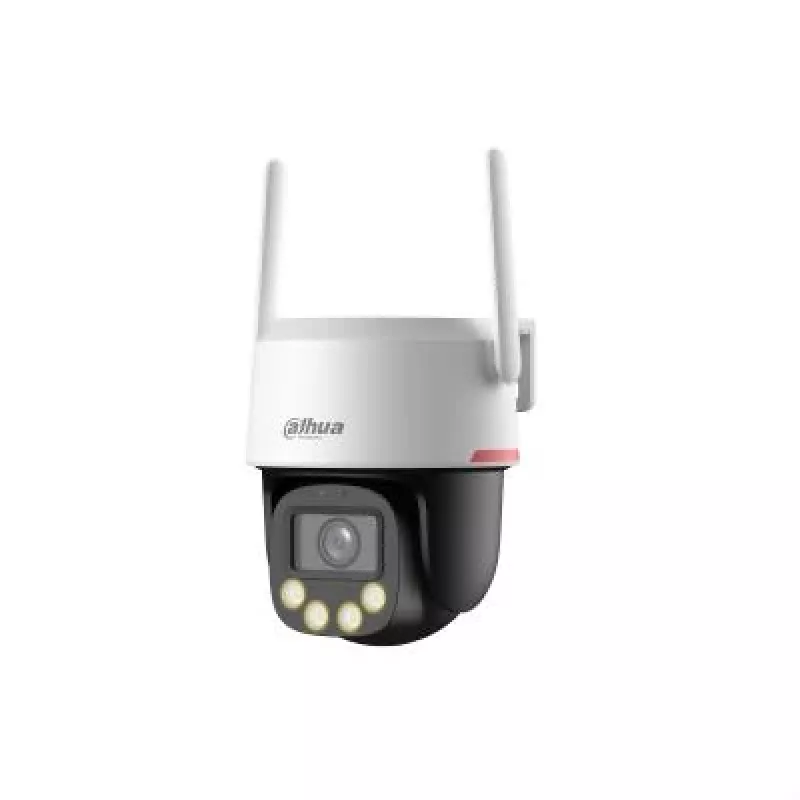

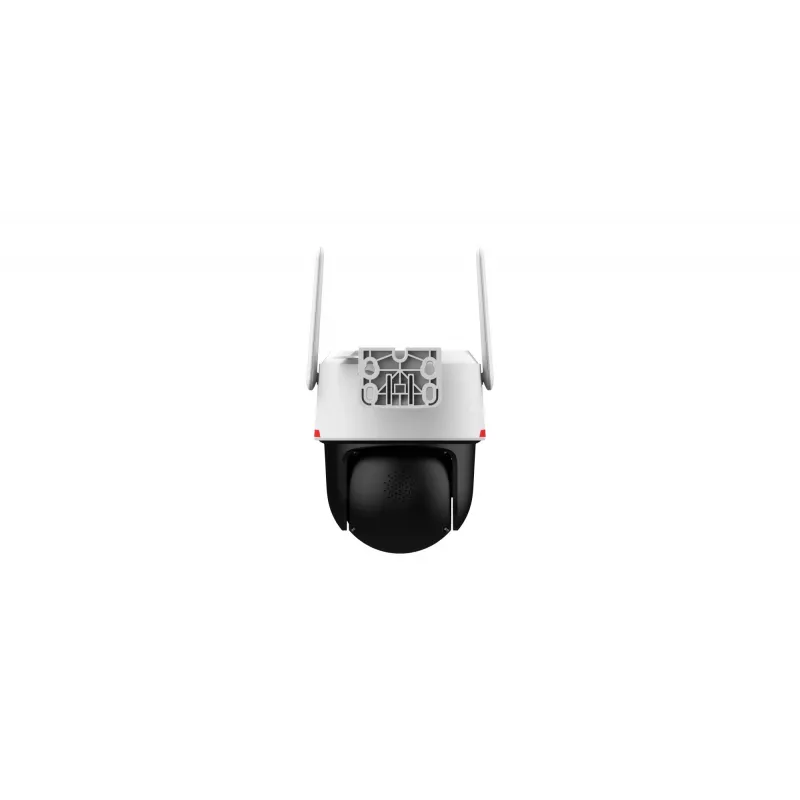

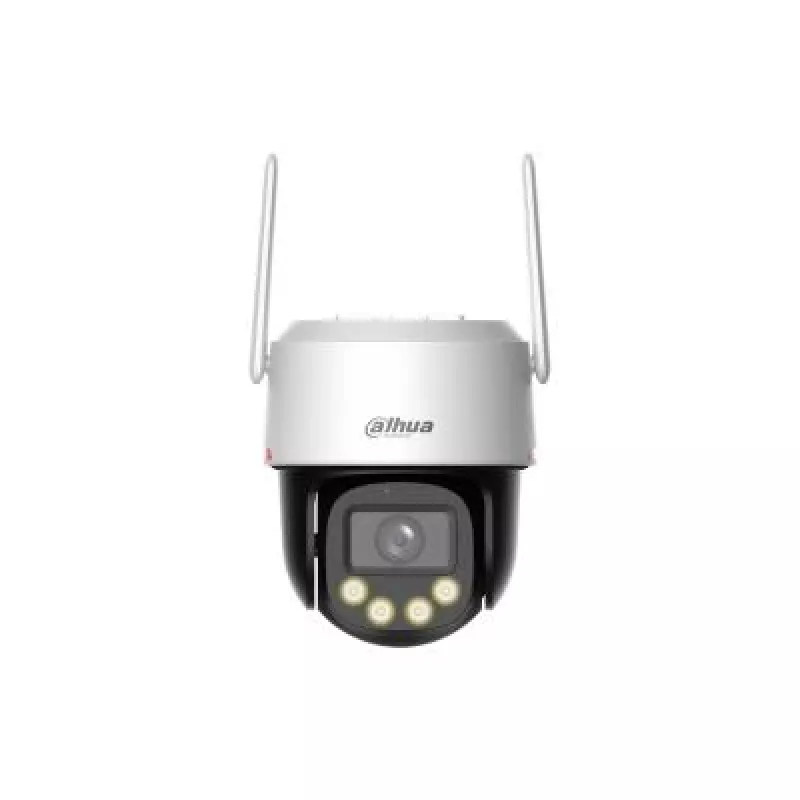

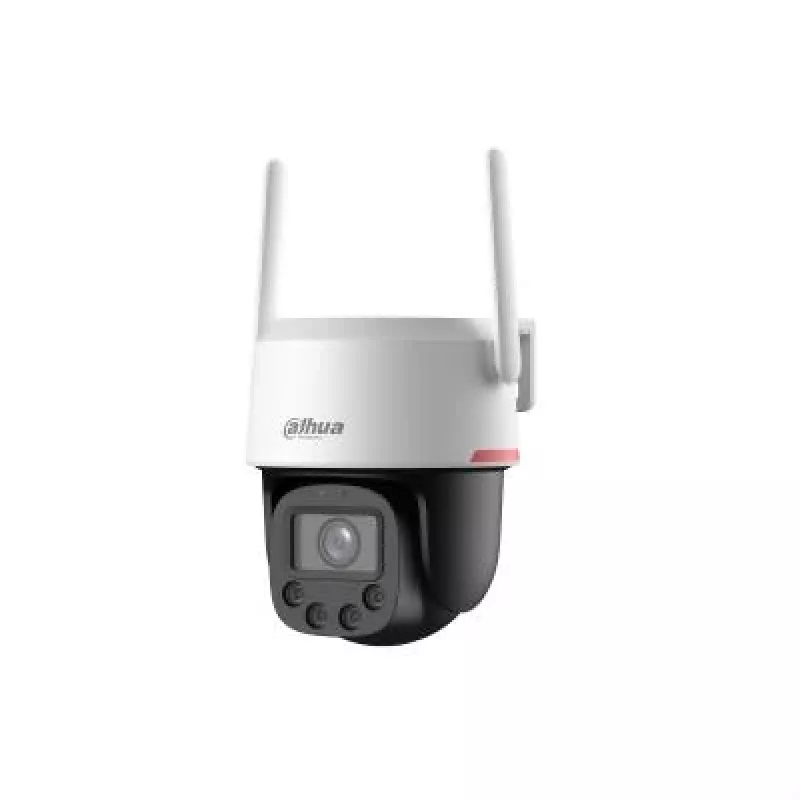

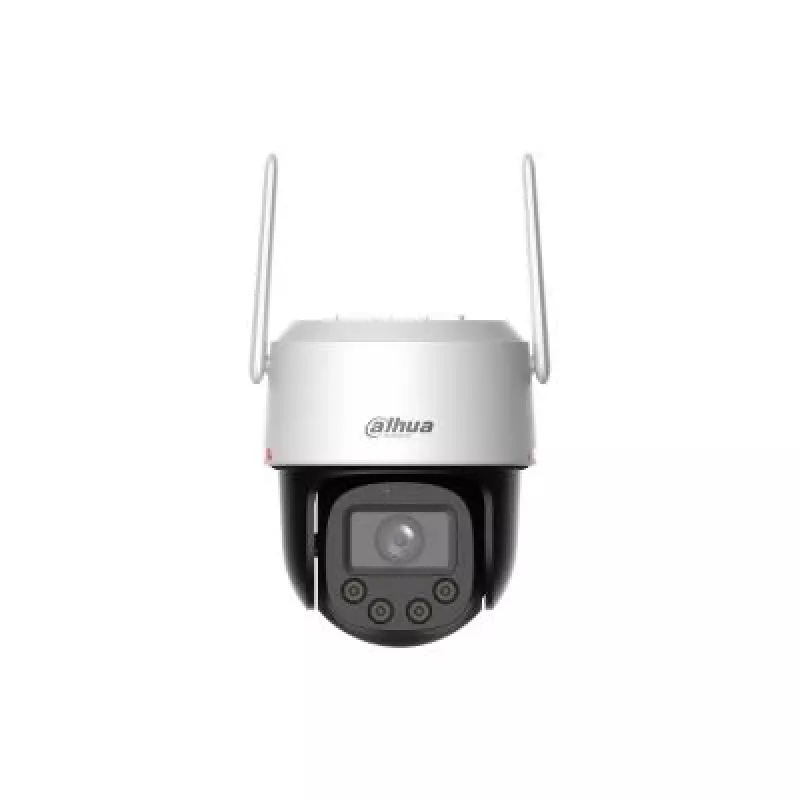

Cámara de vigilancia DAHUA WRL CAMERA 5MP PT DOME WIFI P5F-PV-0360B-PRO

Compact dome camera with a 1/1.8" CMOS sensor and 5 megapixel resolution, designed for clear video capture in various indoor and sheltered outdoor environments. The model includes a built-in microphone for audio recording and supports local storage via memory cards up to 512 GB. Power is supplied by a 12 VDC adapter with a typical current of 1 A (+/−10%). The camera housing measures 153.5 mm in height with a diameter of 129.3 mm.

Advantages

The 1/1.8" CMOS sensor combined with 5 MP resolution provides detailed image quality suitable for monitoring applications. Built-in microphone enables synchronized audio capture without extra wiring. Support for microSD cards up to 512 GB allows extended local recording. Standard 12 VDC power simplifies installation using common adapters.

Key specifications

• Sensor size: 1/1.8" CMOS
• Resolution: 5 Megapixel
• Microphone: Built-in
• Storage support: up to 512 GB (microSD card)
• Power supply: 12 VDC, 1 A ±10%
• Dimensions: 153.5 mm × Φ129.3 mm

How to use

Mount the dome camera in a stable position that provides the desired field of view, taking into account the camera's dimensions. Insert a compatible microSD card (up to 512 GB) into the card slot before powering the device. Connect a 12 VDC power adapter rated at approximately 1 A and ensure the polarity matches the device requirements. Configure recording settings and audio options through the connected recorder or camera interface according to your storage and retention needs.

Recommendations

For reliable long-term recording, use a high-endurance microSD card rated for continuous surveillance and ensure the power supply delivers stable 12 VDC within the specified tolerance. Place the camera under shelter or use weatherproofing if installed outdoors to prolong device life.
