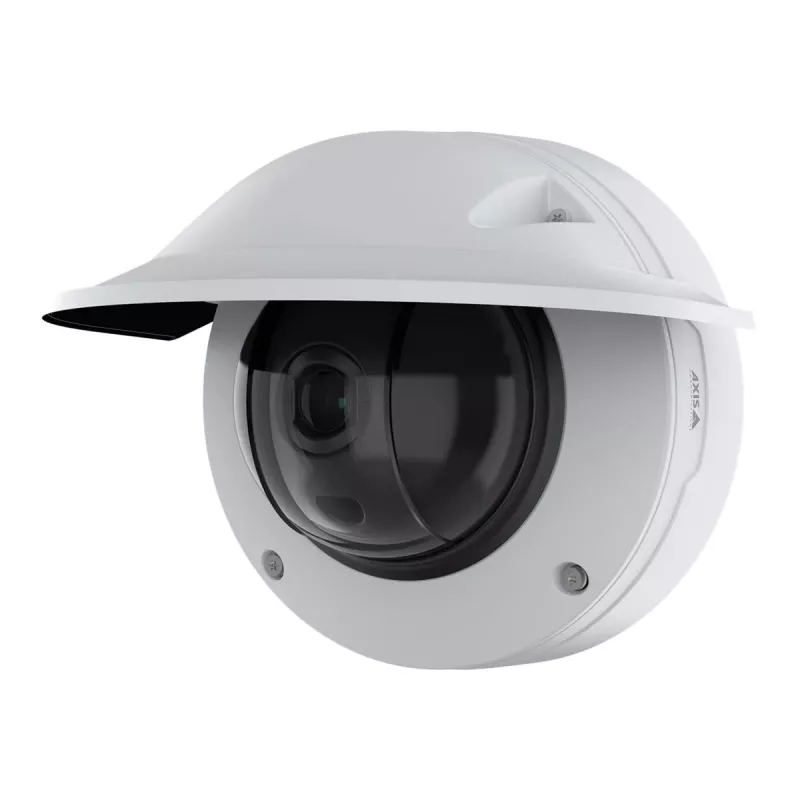

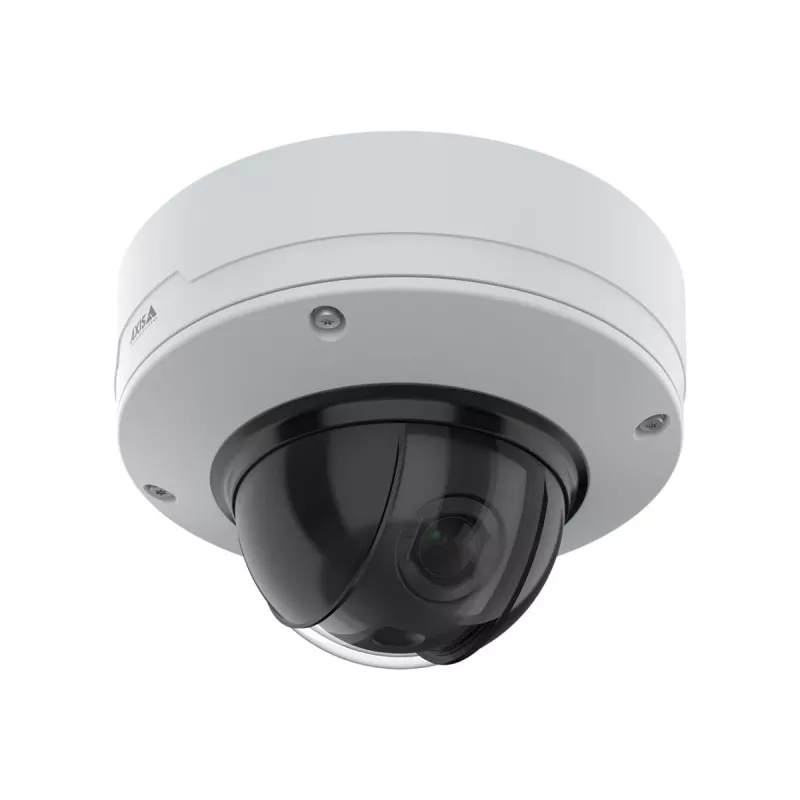

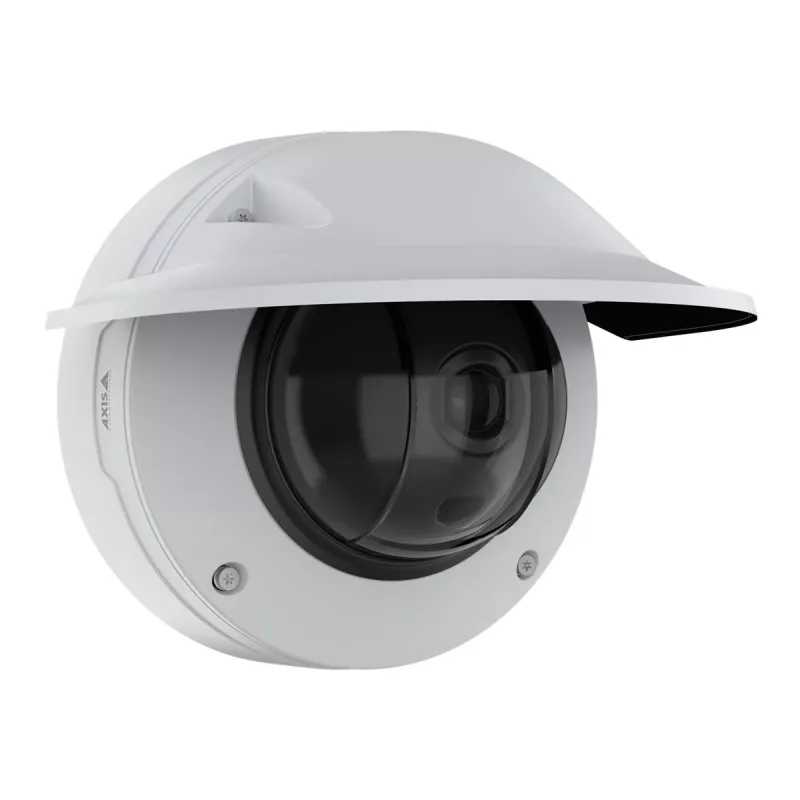

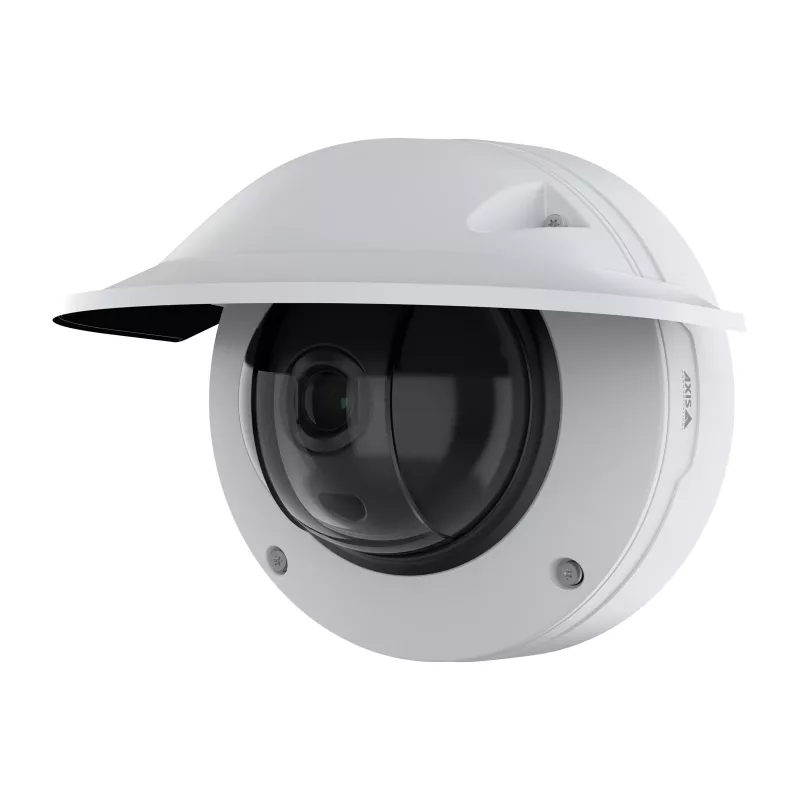

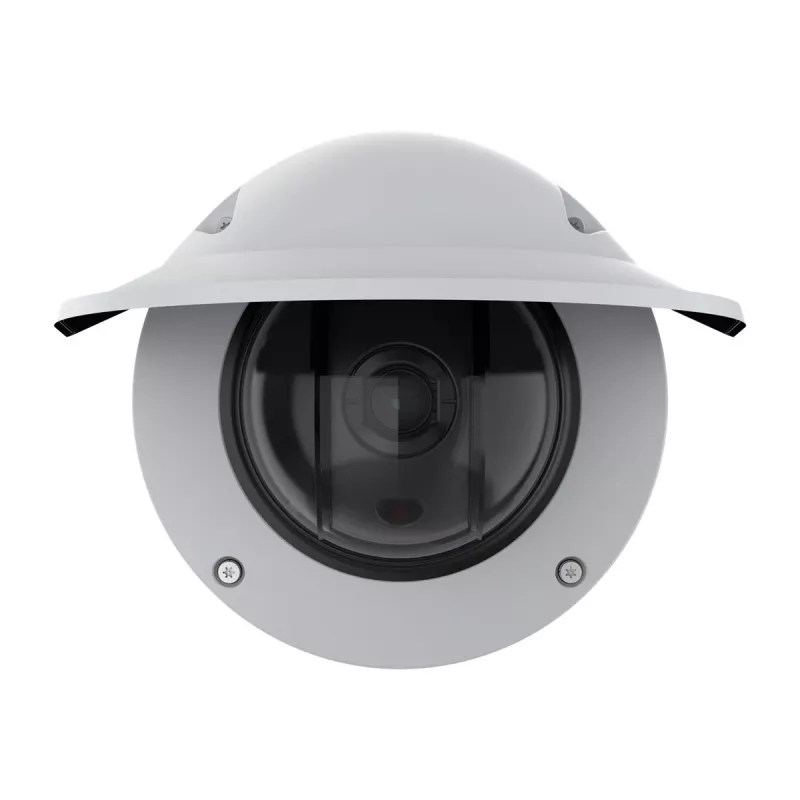

Cámara de vigilancia IP Axis 02224-001 Domo 2688 x 1512

The AXIS 02224-001 is an IP security dome camera with 2688 x 1512 (4 MP) resolution designed for indoor and outdoor surveillance. It combines Lightfinder 2.0, Forensic WDR and OptimizedIR to deliver clear images in challenging light and weather conditions. The IR-shielded dome reduces reflections for consistently sharp video. The camera is based on a modern Axis system-on-chip (SoC) and supports advanced, deep-learning-based applications such as the preinstalled AXIS Object Analytics. The housing and redundant power options make the unit suitable for demanding installations.

Advantages

This AXIS dome camera provides high-resolution 4 MP video and advanced low-light performance thanks to Lightfinder 2.0 and Forensic WDR. OptimizedIR together with an IR-shielded dome minimizes IR reflections and preserves image clarity at night. The built-in SoC enables on-device analytics and supports deep-learning applications; AXIS Object Analytics is preinstalled for precise object classification. The camera includes intrusion and shock sensors, redundant power support and hardware security features such as Axis Edge Vault and a FIPS 140-2 level 2 certified TPM.

Suitable for

• Indoor and outdoor security surveillance
• Perimeter protection and entrance monitoring
• Retail, transport hubs and public spaces
• Sites requiring on-device analytics and cybersecurity

Key specifications

• Resolution: 2688 x 1512 (4 MP)
• Sensor: CMOS
• Frame rate: up to 60 fps
• Optical zoom: 2.6×
• Minimum illumination: 0.08 lx
• Pan/tilt: 175° rotation, tilt -43° to 80°
• Connectivity: wired Ethernet
• Placement: indoor & outdoor
• Mounting type: ceiling / wall
• Product colour: white
• Weight: 2.1 kg

How to use

Mount the dome camera on a ceiling or wall using the appropriate fittings and ensure a stable wired Ethernet connection for power and data. Configure the camera using Axis management software or a compatible VMS to set resolution, frame rate and IR settings. Enable AXIS Object Analytics on the device if object classification is required, and adjust detection zones and sensitivity according to the monitored area. Regularly verify firmware and security settings to maintain protection.

Recommendations

Install the camera where the IR-shielded dome has an unobstructed view to avoid reflections; for long-term reliability use redundant power feeds where available and keep firmware up to date to benefit from security features and analytics improvements.
