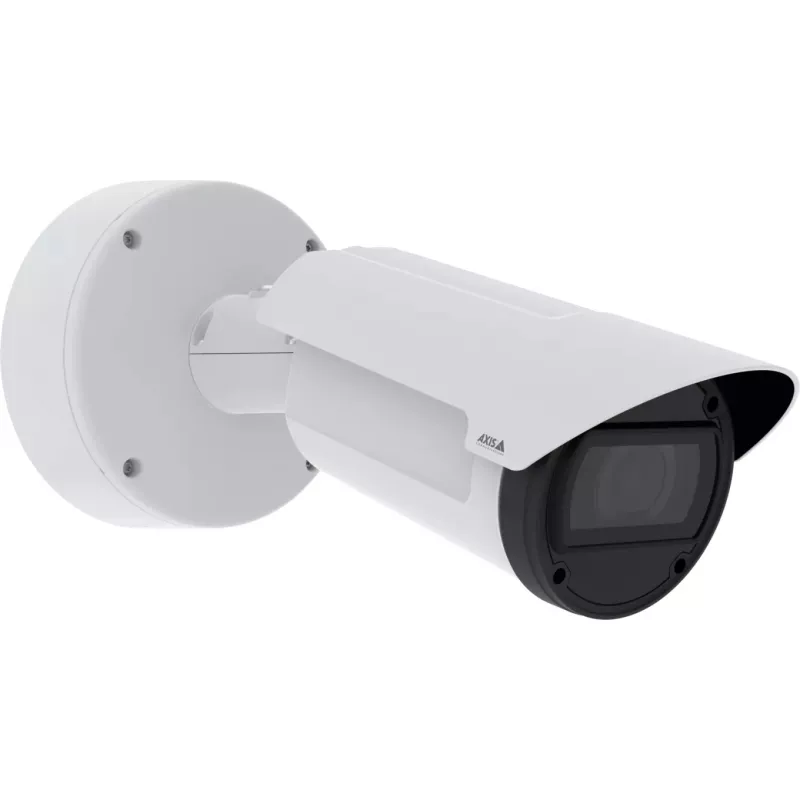

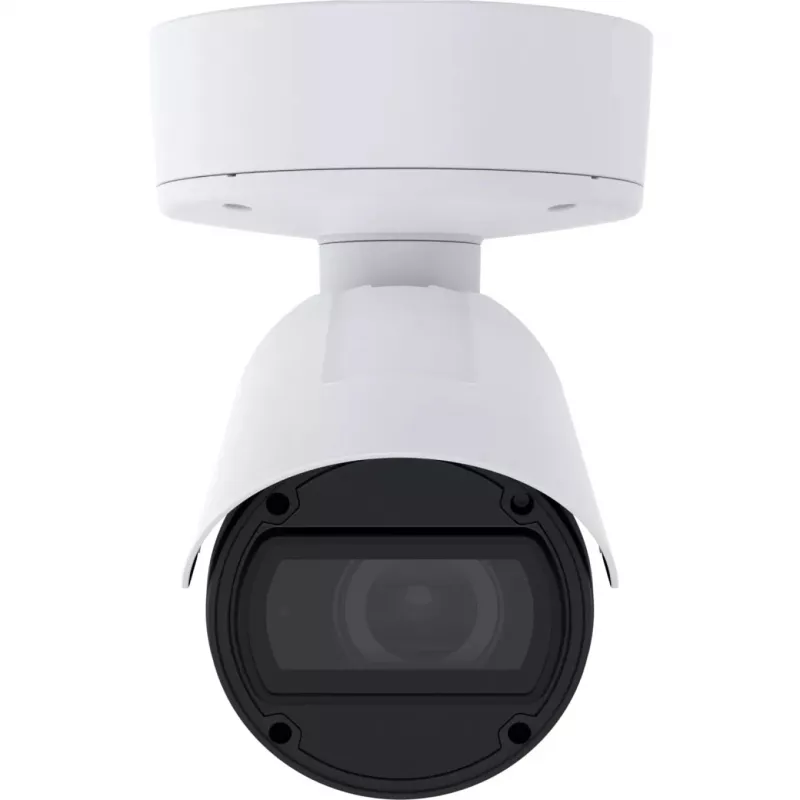

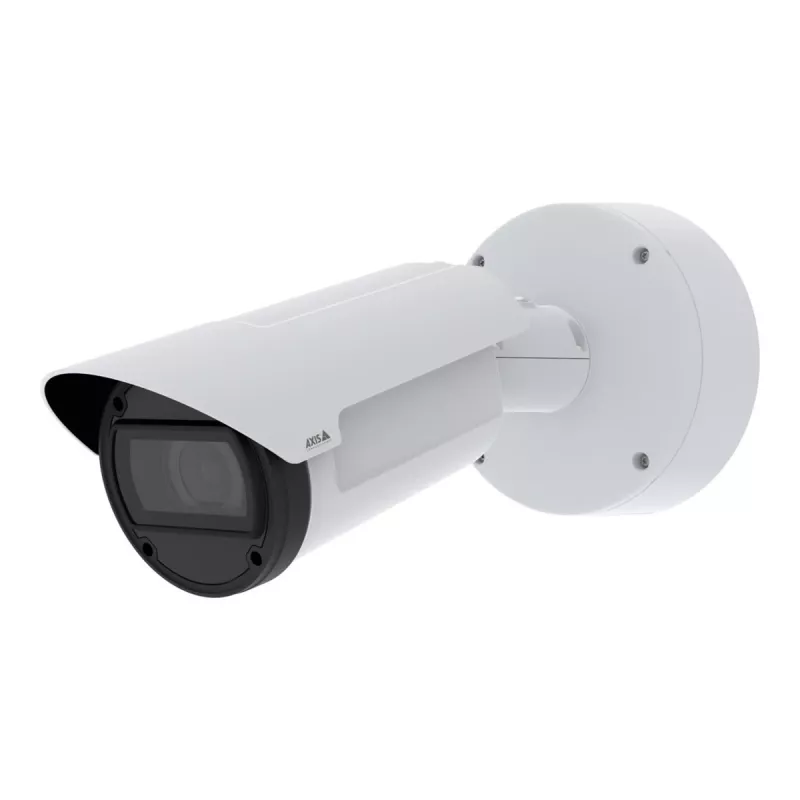

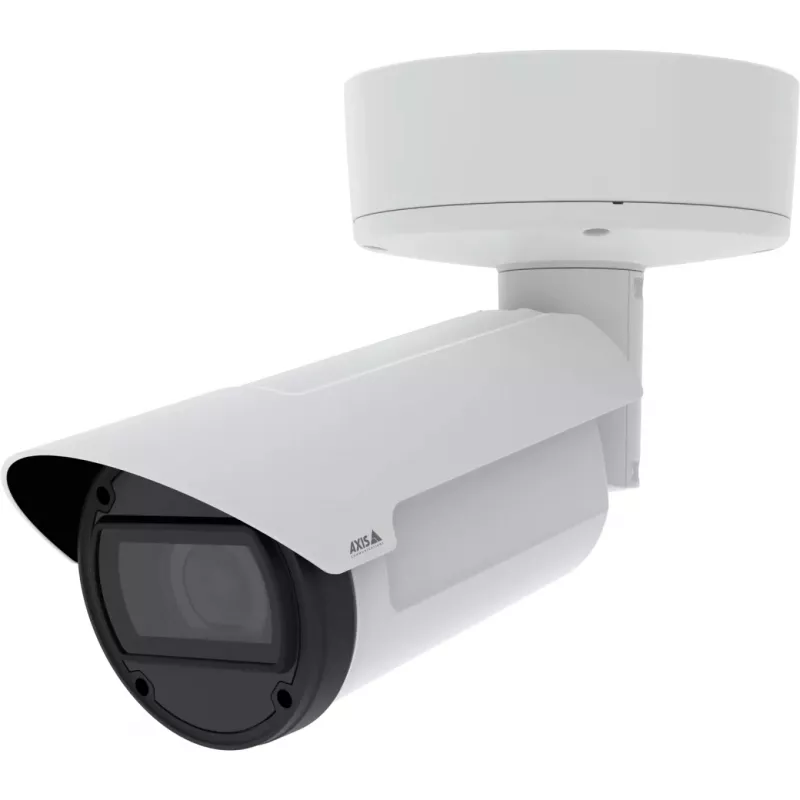

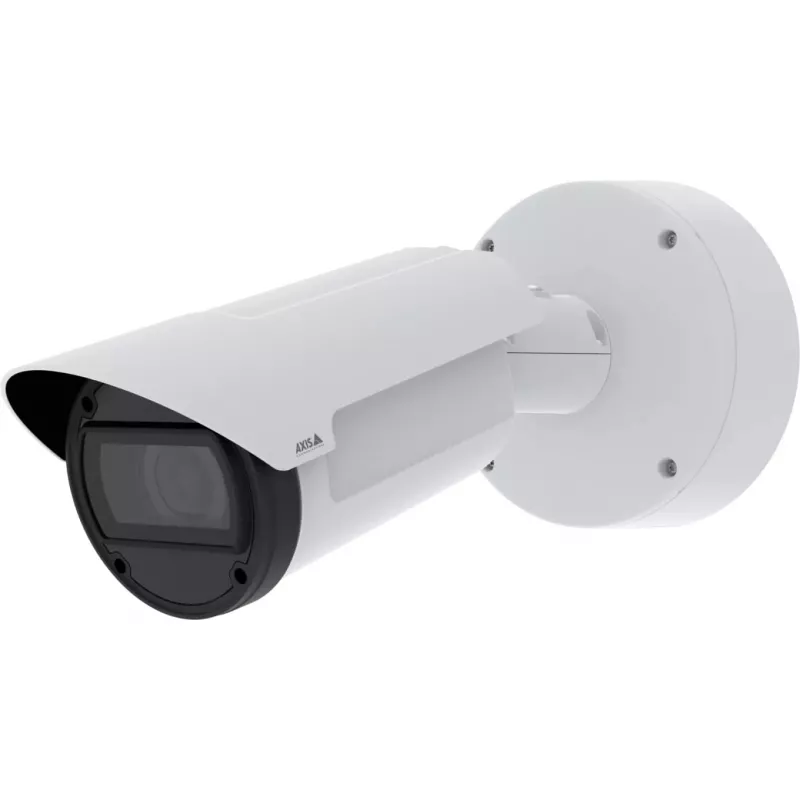

Cámara de vigilancia IP Axis Q1809-LE 150mm 7680 x 4320

The IP security camera Axis Q1809-LE 150mm is an all-in-one outdoor bullet camera designed for long-distance surveillance and high-resolution identification. It captures up to 41 MP (7680 x 4320) and supports 8K at up to 30 fps, using a 4/3” image sensor and a custom tele Canon lens (50–150 mm) with a 21°–7° horizontal field of view. The camera is built for outdoor use with robust aluminum housing, a mounting arm, a spacious back box for cable management, PoE out for powering a secondary device, and electronic image stabilization for smoother footage under vibration.

Advantages

Delivers extreme detail and forensic value with very high pixel density and excellent low-light sensitivity thanks to the 4/3” sensor. Offers flexible frame rates including 41 MP at 15 fps and 8K at up to 30 fps. The motorized tele lens with 3x zoom supports long-range identification. Built-in Axis Zipstream reduces bandwidth and storage needs. Rugged, weather-rated construction (IP66, IP67, IK10, NEMA 4X) with IK08 impact-resistant glass, wide operating temperature range (−40 °C to 55 °C), surge protection, and Axis Edge Vault hardware-based cybersecurity with FIPS 140-3 Level 3 certified key storage.

Suitable for

• Perimeter surveillance of large outdoor areas
• Long-distance identification at ports, airports, and industrial sites
• Critical infrastructure monitoring where robust weather and impact protection is required
• Stadiums and locations subject to vibration where EIS improves video stability

Key specifications

• Resolution: 7680 x 4320 (41 MP) and supports 8K
• Frame rate: up to 30 fps (8K), 41 MP at 15 fps
• Lens: Canon tele 50–150 mm, 3x zoom, horizontal field of view 21°–7°
• Image sensor: 4/3” for enhanced low-light performance
• Minimum illumination: 0.04 lx
• Rotation angle: 270°
• Mounting: ceiling and wall
• Power/data: PoE, PoE out to power secondary device
• Environmental ratings: IP66, IP67, IK10, NEMA 4X; IK08 front glass
• Operating temperature: −40 °C to 55 °C
• Weight: 3.2 kg
• Connectivity: wired Ethernet
• Colours: black, white

How to use

Install the camera on a suitable wall or ceiling mount using the included mounting arm and secure cabling inside the back box for weatherproof routing. Connect the camera to a PoE-enabled network switch or injector to provide power and network connectivity; use PoE out if you need to power a secondary device. Configure image settings, frame rate and Zipstream compression through the camera’s management interface to balance image quality and bandwidth. Adjust the motorized focus and zoom to set the required field of view and identification range. Enable Axis Edge Vault and follow recommended security procedures for credentials and firmware updates.

Recommendations

For optimal long-distance identification, position the camera to minimize obstructions and allow the tele lens to operate near its focal range. Use Zipstream to reduce storage requirements, and schedule regular firmware and security key maintenance to ensure continued protection and performance.
