Cámara de vigilancia IP Bosch NBE-5702-AL 1920 x 1080 píxeles

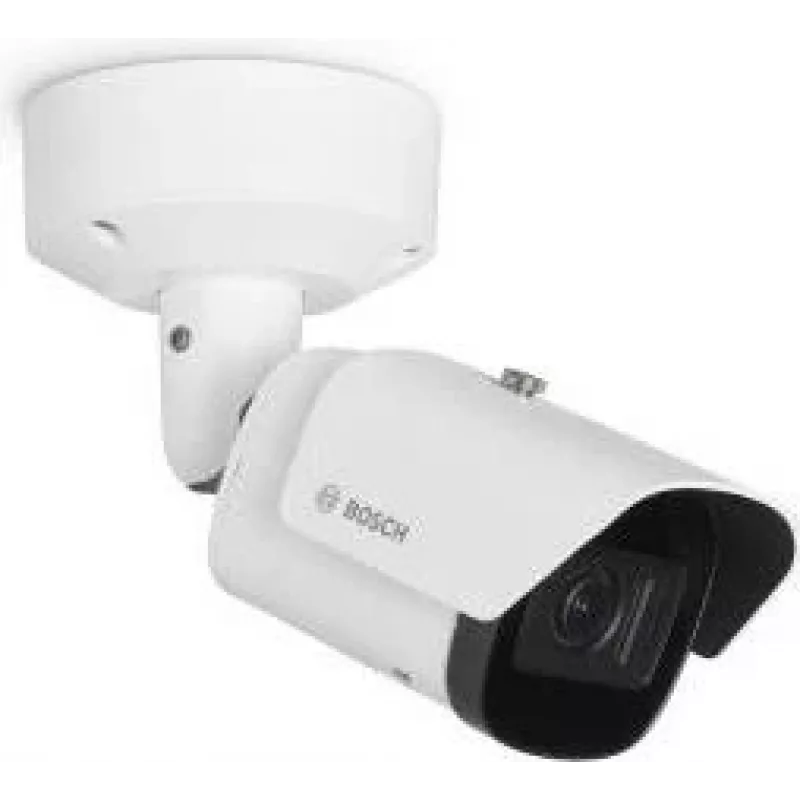

The Bosch NBE-5702-AL is an IP security camera in a bullet form factor designed for indoor and outdoor surveillance. It delivers 1920 x 1080 (HD 1080p) resolution using a 1/2.8" sensor and HDR technology to improve image detail across varying light conditions. A built-in intelligent infrared illuminator supports clear imaging in low-light environments, while a robust housing with sunshield reduces overexposure and helps maintain stable image quality.

Advantages

The camera combines HDR processing and a sensitive 1/2.8" sensor to capture detailed footage in scenes with high contrast. Integrated Intelligent Video Analytics Pro (IVA Pro) provides on-device analytics to detect events and trigger alerts. With a wide horizontal and vertical viewing range and support for up to 60 fps, the unit offers flexible monitoring options and smooth video. Wired Ethernet connectivity ensures reliable network performance for continuous surveillance.

Suitable for

• Outdoor perimeter and entrance monitoring
• Indoor common areas and corridors
• Ceiling or pole-mounted installations

Key specifications

• Resolution: 1920 x 1080 pixels (HD 1080p)
• Image sensor: 1/2.8"
• Low-light sensitivity: minimum illumination 0.004 lx
• Frame rate: up to 60 fps
• Viewing angle (horizontal): 105° to 31°
• Viewing angle (vertical): 57° to 18°
• Connectivity: Wired Ethernet (LAN)
• Mounting: Ceiling / Pole
• Placement supported: Indoor & outdoor
• Color: White, Black
• Weight: 2.5 kg

How to use

Mount the Bosch NBE-5702-AL on a suitable ceiling or pole using the recommended brackets and ensure the sunshield is oriented to reduce direct sunlight on the lens. Connect the camera to a power source and the network via Ethernet. Configure basic settings such as resolution, frame rate, and network parameters through the camera's management interface. Enable and tune Intelligent Video Analytics Pro to define detection zones and alert thresholds appropriate to the installation environment.

Recommendations

For reliable low-light performance, position the camera to minimize direct glare and regularly clean the lens and sunshield. Use wired Ethernet for stable connectivity and periodically check analytics settings to reduce false alerts in changing scene conditions.
