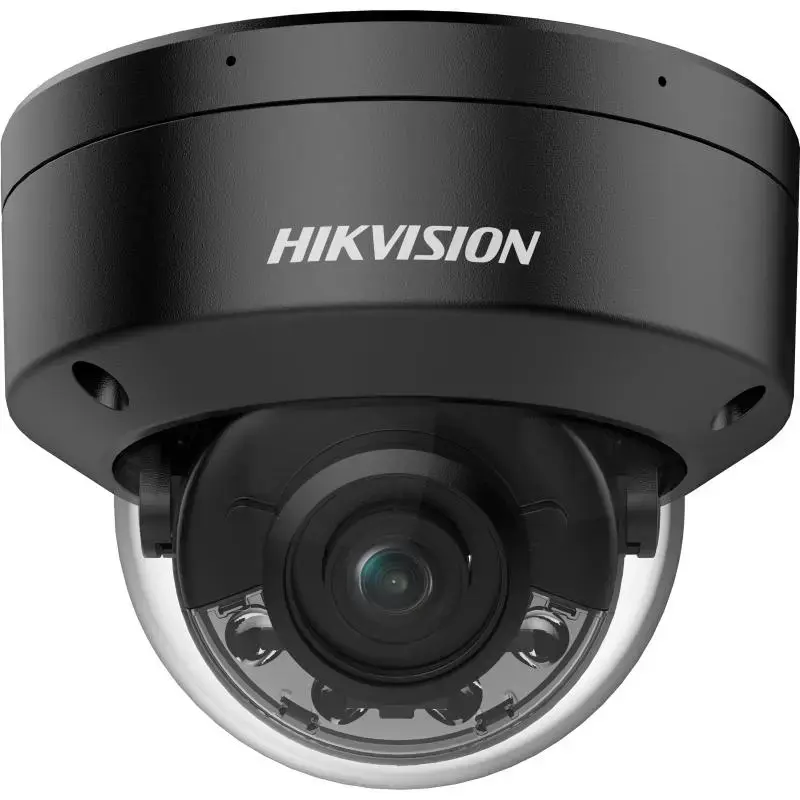

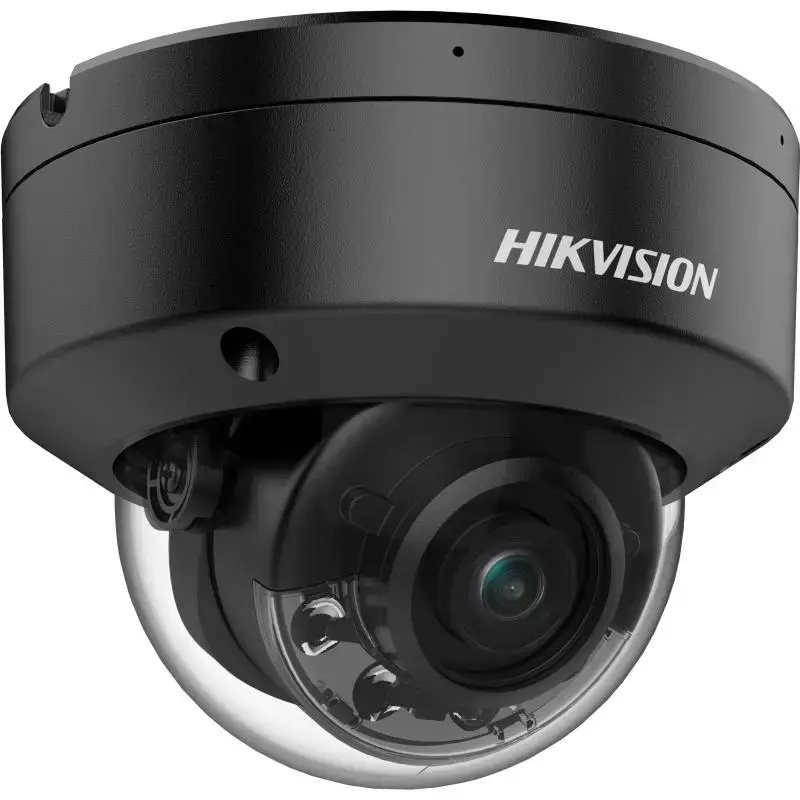

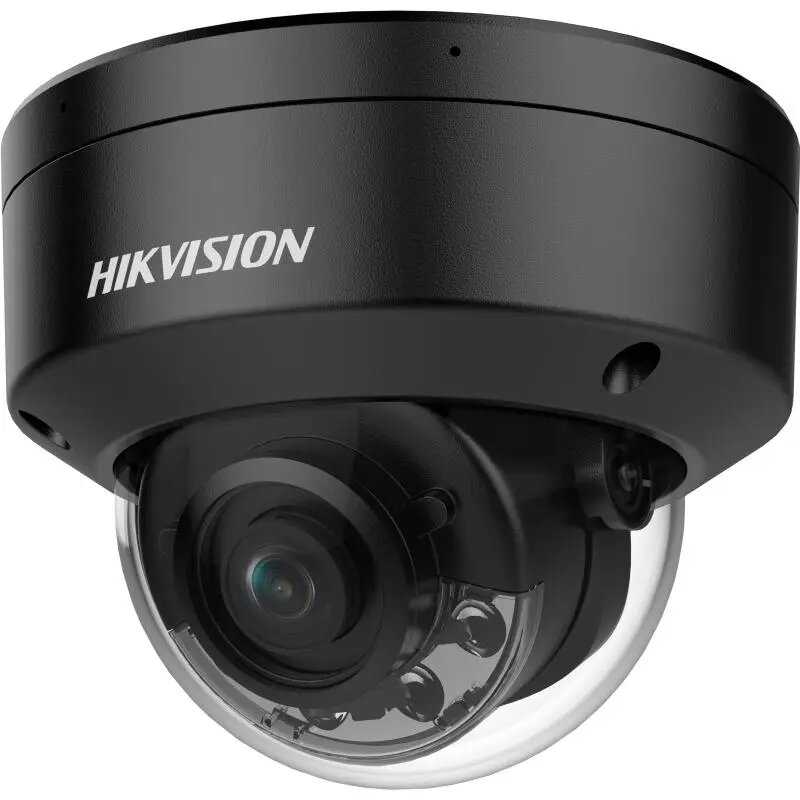

Cámara de vigilancia IP Hikvision DS-2CD2187G2H-LISU(2.8MM) Domo exterior 4K

Modelis: DS-2CD2187G2H-LISU, 2.8mm, juodos spalvos Rezoliucija: 8MP Objektyvas: 2.8 mm, horizontalus FOV 105.1° Technologija: Smart Hybrid Light, ColorVu Integruotas mikrofonas: Taip Naktinis pašvietimas: 30 m. LED Vieta microSD talpai: Taip, 512GB Darbo sąlygos: -30 °C iki 60 °C Saugos lygis: IP67, IK10 Vaizdo suspaudimas: H.265+ WiFi: Ne Lauko/vidaus: Lauko Aprašymas: Kamera • Sensorius: 1/1.8 Progressive Scan CMOS • Maks. rezoliucija: 3840 × 2160 • Min. apšvietimas: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light • Užrakto greitis: 1/3 s to 1/100,000 s • Kampo keitimas: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° Lęšis • Lęšio tipas: Fixed focal lens, 2.8mm • Focal Length & FOV: 2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2° • Lęšio montavimas: M16 • Rainelės tipas: Fixed • Diafragama: F1.0 • Ryškumo gylis: 2.8 mm, 3.3 m to infinite DORI: 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m Apšvietimas • Papildomo apšviešimo tipas: IR, White Light • Papildomo apšvietimo diapazonas: Up to 30 m • Išmanus papildomas apšvietimas: Yes • IR bangos ilgis: 850 nm Vaizdas • Pagrindinis srautas: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) • Antrinis srautas: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) • Trečias srautas: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. • Vaizdo suspaudimas: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG • Vaizdo bitų greitis: 32 Kbps to 16 Mbps • H.264 tipas: Baseline Profile, Main Profile, High Profile • H.265 tipas: Main Profile • Bitų greičio kontrolė: CBR,VBR • Region of Interest (ROI): 1 fixed region for main stream and sub-stream • Scalable Video Coding (SVC)H.264 and H.265 encoding Garsas • Garso tipas: -SU: Mono sound • Garso suspaudimas -SU: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC • Garso bitų greitis -SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64; Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) • Garso atrankos dažnis -SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz • Pašalinių garsų šalinimas: -SU: Yes Internetas • Protokolai: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP • Tiesioginis vaizdo žiūrėjimas: Up to 6 channels • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP • User/Host: Up to 32 users. 3 user levels: administrator, operator and user • Saugumas: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) • Saugykla: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. • Klientas: iVMS-4200, Hik-Connect, Hik-Central • Naršyklė: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Nuotrauka • Nuotraukos parametrų keitiklis: yes • Nuotraukos nustatymai: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser • Diena/Naktis režimas: Day, Night, Auto, Schedule • Wide Dynamic Range (WDR): 130 dB • SNR: > /= 52 dB • Nuotraukų pagražinimas: BLC,HLC,3D DNR • Privatumo kaukė: 4 programmable polygon privacy masks Sąsaja • Interneto sąsaja: 1 RJ45 10 M/100 M self-adaptive Ethernet port • Vidinė atmintis: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB • Įmontuotas mikrofonas: -SU: Yes • Garsas: -SU: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KiloOhm, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ohm, interface type: non-equilibrium • Signalizacija: -SU: 1 input, 1 output (max. 12 VDC, 30 mA) • Perkrovimo mygtukas: Yes Funkcijos • Pagrindinės funkcijos: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception • Išmaniosios funkcijos: Scene change detection • Sąsaja: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email Išmaniosios funkcijos • Veido atpažinimas: Yes • Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle) Pagrindinis • Sistemos parametrai: 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W • Medžiaga: Base: aluminum alloy, cover: aluminum alloy • Dydis: Ø121.5 mm × 97.6 mm (Ø4.78 × 3.84) • Pakuotės dydis: 234 mm × 120 mm × 117 mm (9.2 × 4.7 × 4.6) • Svoris: Approx. 525 g (1.2 lb.) • Svoris su įpakavimu: Approx. 750 g (1.7 lb.) • Sandėliavimo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Darbo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Kalba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian • Pagrindinės funkcijos: Heartbeat, mirror, password reset via email, pixel counter, anti-banding Patvirtinimai • EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 • Saugumas: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 • Aplinkosauga: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 • Apsauga: IP67: IEC 60529-2013, IK10: IEC 62262:2002

How to use

Install the camera in a suitable outdoor location with a clear field of view, ensuring the mounting surface supports the mini dome housing and provides appropriate cable routing for power and network connection. Aim the 2.8 mm lens to cover the desired area and adjust the 355° rotation as needed to fine-tune framing. Connect the camera to your network and configure video settings, resolution, ROI (if available), and storage options through the Hikvision management software or compatible NVR. Verify ColorVu and light settings to optimize low-light color performance and balance between image quality and bandwidth/storage.

Recommendations

Place the camera at a height and angle that minimize obstructions and glare; enable appropriate exposure and low-light settings in the device menu; use PoE and a secure network configuration to simplify installation and maintain data security.
