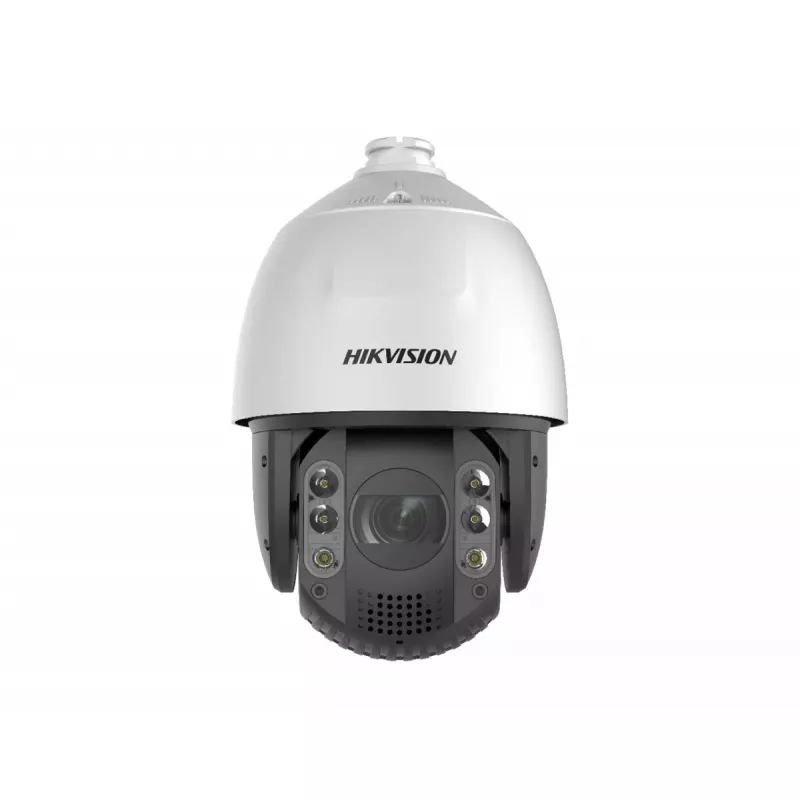

Cámara de vigilancia IP Hikvision DS-2DE7A232IW-AEB(T5) Dome

The Hikvision DS-2DE7A232IW-AEB(T5) Dome is an outdoor IP security camera offering Full HD 1920 x 1080 resolution with a 32x optical zoom and an additional 16x digital zoom. Designed for wired network installations, this white dome camera supports ceiling or wall mounting and uses a CMOS sensor to capture clear images across a range of lighting conditions. A wide horizontal field of view and motorized pan/tilt/zoom functionality enable flexible monitoring of large outdoor areas from a remote location.

Advantages

The camera provides high-resolution video with smooth 30 fps capture for detailed motion imaging. The powerful optical zoom paired with digital enlargement allows operators to identify distant objects while preserving image clarity at closer ranges. Wired Ethernet connectivity ensures stable data transmission suitable for continuous surveillance. Weather-suitable design and mounting versatility make the device appropriate for outdoor perimeter, parking lot, and building facade monitoring.

Suitable for

• Outdoor perimeter surveillance of commercial and industrial sites
• Monitoring parking areas, yards and loading zones
• Façade and entrance coverage for office buildings and retail locations
• Remote PTZ observation where long-range optical zoom is required

Key specifications

• Image resolution: 1920 x 1080 pixels (Full HD)
• Zoom: 32x optical zoom, 16x digital zoom
• Frame rate: up to 30 fps
• Sensor type: CMOS
• Horizontal viewing angle: approximately 50.8°; vertical viewing angle: approximately 29.4°
• Connectivity: wired Ethernet LAN
• Placement: outdoor-rated housing
• Mounting options: ceiling or wall mountable
• Color: white
• Weight: approximately 5 kg

How to use

Install the camera on a suitable ceiling or wall bracket in a location that provides an unobstructed view of the intended coverage area. Connect the camera to a PoE-enabled switch or to separate power and Ethernet as required by the installation environment, and configure network settings through the Hikvision management interface or compatible NVR. Use the pan/tilt/zoom controls to position the camera and set patrol presets or cruise paths. Enable video motion detection features and adjust sensitivity to reduce false alarms. Regularly verify image focus and zoom calibration after initial alignment.

Recommendations

For reliable long-term outdoor performance, mount the camera under an overhang when possible, ensure network cabling is weatherproofed, and schedule routine cleaning of the dome cover to maintain image clarity. When using high zoom levels for distant targets, allow a short stabilization period after repositioning before capturing critical frames.
