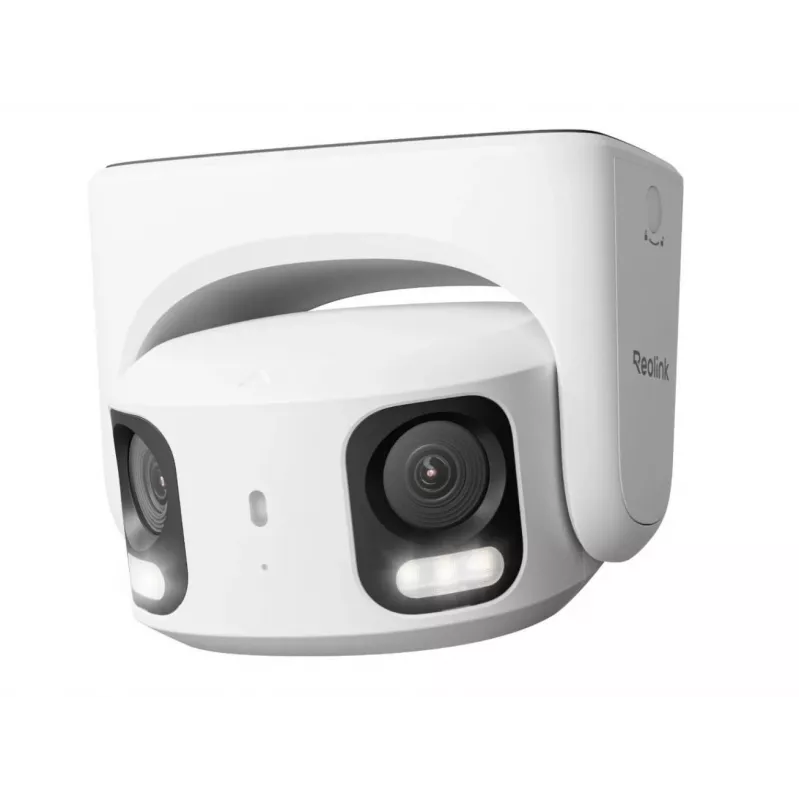

Cámara de vigilancia IP tipo turret Reolink RP-PCT8MD 5120×1552, 2,8 mm distancia focal fija, 180° horizontal, cableada, montaje en pared, interior/exterior, blanca

Reolink RP-PCT8MD is a wired IP turret security camera designed for indoor and outdoor wall-mounted surveillance. It captures ultra-high-resolution footage at 5120 × 1552 pixels using a 2.8 mm fixed lens and a 1/2.65" CMOS sensor, providing a panoramic 180° horizontal field of view and 57° vertical coverage. The camera supports Ethernet LAN connectivity and records up to 25 frames per second, offering continuous monitoring with a neutral white housing for discreet installation.

Advantages

The camera delivers 4K-quality panoramic imaging with dual-lens coverage to minimize blind spots and provide distortion-free wide-angle views. A large aperture and advanced sensor technology improve low-light performance and color night vision, while AI-driven perimeter protection features — including line crossing, zone intrusion and zone lingering alerts — increase detection accuracy and reduce false alarms. Local and networked storage options, plus AI video search capabilities, allow fast retrieval of triggered recordings. The turret form factor and wall-mount design simplify installation and positioning for both residential and commercial sites.

Suitable for (tasks / use cases)

• Perimeter monitoring of yards, driveways and building exteriors
• Wide-area indoor surveillance in retail, warehouses and lobbies
• Continuous observation of entrances and corridors without multiple cameras
• Recording and local storage of triggered motion events for security review

Key specifications

• Image resolution: 5120 × 1552 pixels (8 MP / 4K Ultra HD)
• Lens: 2.8 mm fixed focal length
• Field of view: 180° horizontal, 57° vertical
• Image sensor: CMOS, 1/2.65"
• Frame rate: up to 25 fps
• Connectivity: wired Ethernet LAN
• Mounting: wall mount, turret form factor
• Night vision: infrared illumination up to 30 m and color night vision support
• Weather resistance: IP67-rated for outdoor use
• Color: white
• Weight: approx. 0.775 kg

How to use

Mount the camera securely on a suitable wall surface using the included bracket and hardware, positioning it to cover the intended panorama while avoiding direct obstructions. Connect the unit to a PoE-enabled switch or a wired Ethernet network and configure network settings via the Reolink app or client software. Adjust orientation and tilt to optimize the 180° coverage, set recording modes and motion detection zones, and choose local or network storage options such as a microSD card or compatible NVR. Test the camera day and night to verify image quality, IR range and AI detection behavior.

Recommendations

Place the camera at a height that balances field of view and detail (typically 2.5–4 m for wall mounts), keep the lens clear of obstructions and debris, and configure perimeter protection zones to match site-specific entry points. For reliable wired performance, use quality Ethernet cabling and ensure the PoE supply or network switch meets the camera's power requirements. Regularly check recorded clips and maintain firmware updates to benefit from improved AI detection and stability.
