Cámara de vigilancia IP turret Reolink RP-PCT12M objetivo 4 mm, 4512×2512, 100,4° horizontal, montaje en pared, con cable, interior/exterior

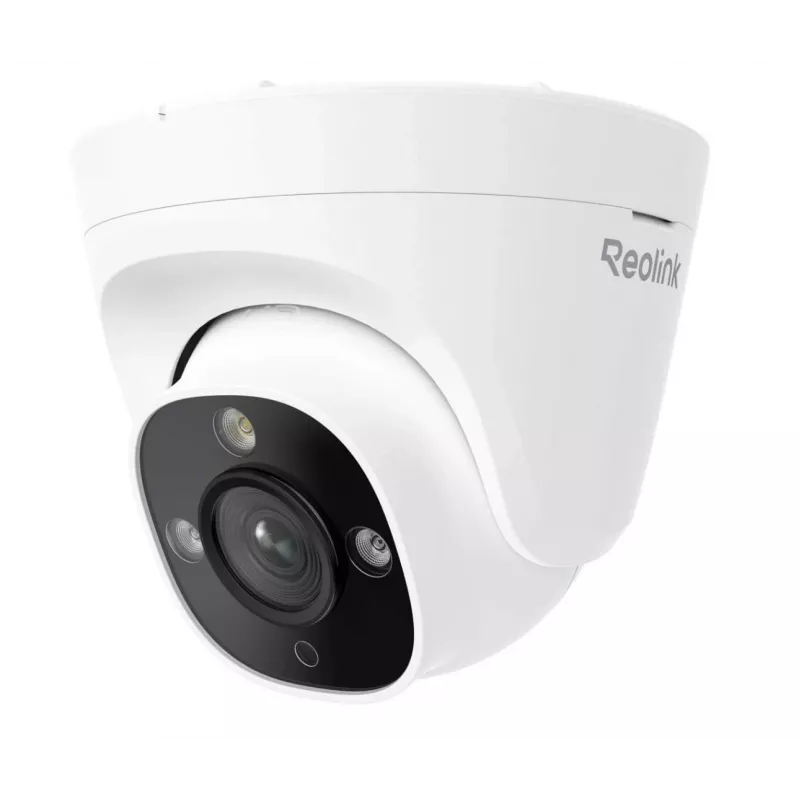

Reolink RP-PCT12M is a turret-style IP security camera designed for indoor and outdoor surveillance. It delivers up to 4512 × 2512 (12MP) resolution at 25 fps using a 1/2.49" CMOS sensor and a fixed 4 mm lens that provides a 100.4° horizontal field of view (50.6° vertical, 123° diagonal). The camera uses wired Ethernet for reliable network connectivity and comes in a wall-mount form factor with a weatherproof enclosure suitable for diverse installation locations.

Advantages

The camera produces high-resolution images that capture fine detail for identification and monitoring. A large-aperture F1.6 lens combined with AI-driven image processing improves low-light performance and, together with built-in spotlights and color night vision, enables clearer nighttime footage. Wired Ethernet reduces network latency and improves stability compared with wireless alternatives. The turret design and wall-mount compatibility facilitate directed coverage of entrances, driveways and other focused areas.

Suitable for

• Monitoring building entrances and exits
• Surveillance of yards, driveways and parking areas
• Indoor security for offices, hallways and retail spaces
• Perimeter protection and event-based recording

Key specifications

• Image resolution: up to 4512 × 2512 (12MP) at 25 fps
• Sensor: 1/2.49" CMOS
• Lens: fixed 4 mm, horizontal FOV 100.4° (vertical 50.6°, diagonal 123°)
• Aperture: F1.6 (large-aperture lens for improved low-light capture)
• Night vision: color night vision with built-in spotlights; IR range reported up to 30 m for monochrome IR mode
• Connectivity: wired Ethernet LAN
• Mounting: wall mount, turret form factor
• Placement: suitable for indoor and outdoor use; weatherproof enclosure
• Frame rate: 25 fps
• Color: white
• Weight: approximately 0.526 kg

How to use

Install the Reolink RP-PCT12M on a stable vertical surface using the included wall-mount bracket, positioning it to cover the desired area and ensure the 4 mm lens provides the appropriate field of view. Connect the camera to a PoE-capable switch or injector if supported by your setup, or to a standard Ethernet network for power and data as required. Configure the camera through the Reolink software or web interface to set resolution, frame rate, recording schedules and motion detection zones. For long-term storage, choose from microSD card, compatible NVR or encrypted FTP backup according to your retention and access needs.

Recommendations

For optimal performance, mount the camera at a height that prevents tampering while keeping the key area within the 100.4° horizontal view. When precise identification is required, use the 12MP resolution setting and enable event-triggered recording or AI video search to reduce review time. Ensure the Ethernet connection is secured and, where applicable, use PoE to simplify cabling. Regularly verify firmware updates and configure encrypted backups to protect recorded footage.
