Cámara domo IP analógica HD 5MP BCS BCS-EA45VSR8-G, varifocal 2.7-13.5mm, IR 40m, IP66

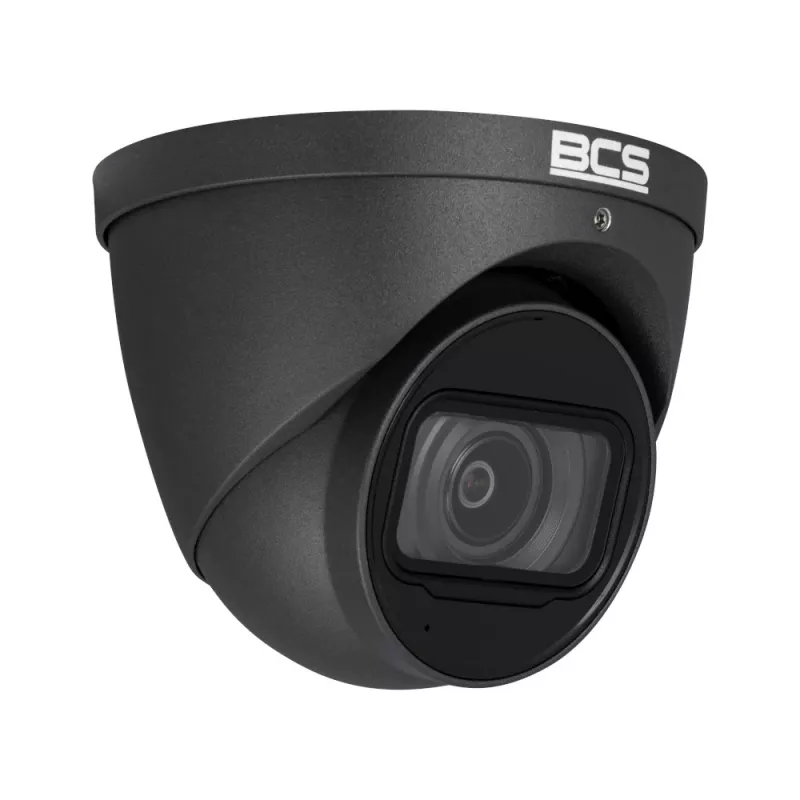

The BCS-EA45VSR8-G is a high-performance 5 Megapixel Analog HD dome camera designed for professional surveillance. Featuring a 1/2.8" CMOS sensor, it delivers crisp 2592x1944 resolution at 20fps. The vari-focal lens (2.7-13.5mm) allows flexible field-of-view adjustment, while Smart IR technology provides up to 40m night vision. With 4-in-1 video output (AHD/TVI/CVI/CVBS), it integrates seamlessly into existing analog systems. The metal housing with IP66 rating ensures reliable outdoor operation in temperatures from -30°C to +60°C.

Advantages

Exceptional 5MP clarity with DWDR and 2D/3D DNR for clear images in challenging light. Easy installation with UTC OSD control over coax. Durable metal construction and IP66 protection against dust and water.

Suitable for

• Outdoor perimeter surveillance
• Retail stores and warehouses
• Parking lots and building entrances
• Industrial sites requiring robust cameras

Key specifications

• Sensor: 1/2.8" CMOS, 5MP (2592x1944)
• Lens: Vari-focal 2.7-13.5mm
• IR Range: Up to 40m with Smart IR
• Video Output: AHD/TVI/CVI/CVBS (4-in-1)
• WDR: DWDR
• Noise Reduction: 2D/3D DNR
• Power: DC 12V, max 5W
• IP Rating: IP66
• Housing: Metal
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a high-quality DC 12V power supply and compatible DVR supporting 5MP AHD or TVI input. Ensure proper cable shielding for long-distance transmission.
