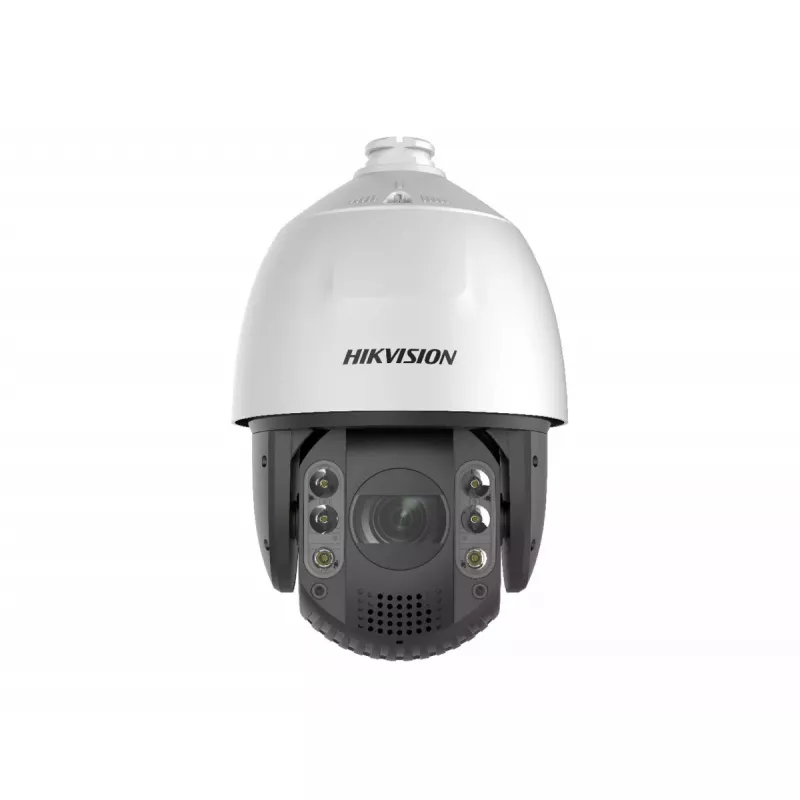

Cámara IP de vigilancia Hikvision DS-2DE7A432IW-AEB(T5) domo

IP camera Hikvision DS-2DE7A432IW-AEB(T5) Dome is an outdoor dome network PTZ camera with 2560 × 1440 resolution, a 32× optical zoom and a CMOS sensor. The camera supports ceiling or wall mounting and provides a wide field of view with 50.8° horizontal and 29.4° vertical angles, enabling long-range observation up to 2046.9 m when installed with a clear line of sight.

Advantages

The Hikvision DS-2DE7A432IW-AEB(T5) combines high-resolution imaging with substantial optical and digital zoom to capture detailed scenes at long distances. Its compact dome housing allows flexible ceiling or wall installation, while PTZ (pan-tilt-zoom) controls make it possible to quickly change viewing direction and zoom level. The CMOS sensor contributes to improved image clarity across varying lighting conditions.

Suitable for

• Perimeter and large-area outdoor surveillance
• Monitoring long-range approaches such as roads and entrances
• Sites requiring adjustable PTZ coverage (parking lots, industrial sites)
• Ceiling- or wall-mounted installations for commercial properties

Key specifications

• Brand: Hikvision
• Model: DS-2DE7A432IW-AEB(T5)
• Type: outdoor dome IP PTZ camera
• Resolution: 2560 × 1440 pixels
• Sensor: CMOS
• Optical zoom: 32×
• Digital zoom: 16×
• Maximum observation distance: up to 2046.9 m
• Field of view (horizontal): 50.8°
• Field of view (vertical): 29.4°
• Mounting: ceiling / wall
• MPN: DS-2DE7A432IW-AEB(T5)
• EAN: 6931847127091

How to use

Choose a mounting position that provides the required viewing angle and clear line of sight for the intended observation distance. Secure the camera to a stable ceiling or wall bracket according to the mounting points and the bracket system you select. Connect the unit to your network and recording or monitoring system following the manufacturer’s installation guide. Configure image settings, focus, zoom and PTZ presets via the camera web interface or compatible software, and use zoom and pan controls during operation to focus on objects of interest.

Recommendations

Mount the camera on a stable surface away from direct bright light sources, clean the optics regularly, verify fastenings periodically, and configure network security and access rights when enabling remote monitoring.
