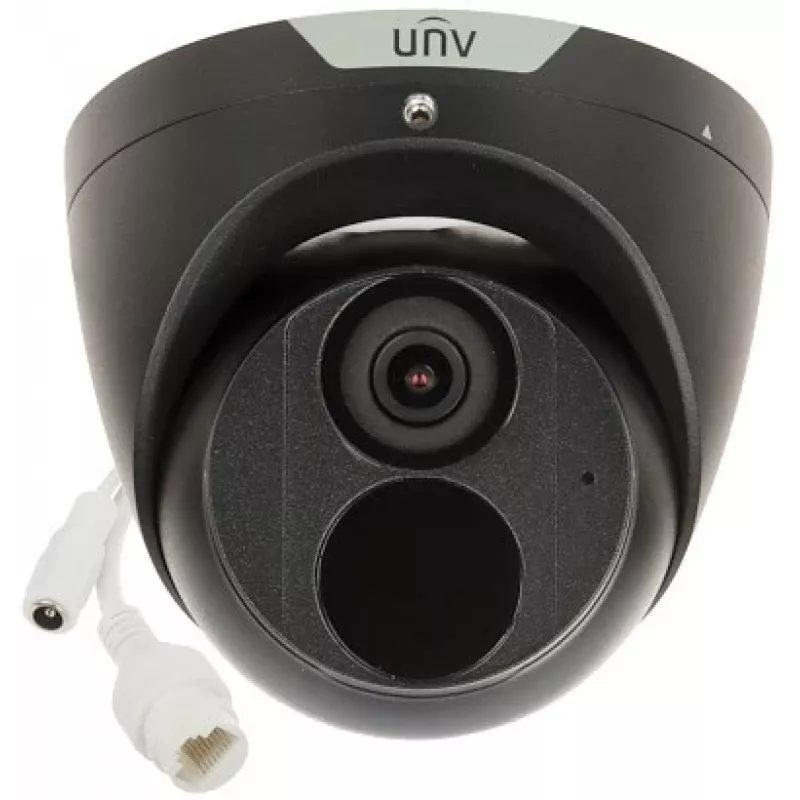

Cámara IP domo IR 4MP UNIVIEW IPC3614SS-ADF28KM-I0-BLACK, 2,8mm, negra

The UNIVIEW IPC3614SS-ADF28KM-I0-BLACK is a high-performance 4MP IR dome IP camera designed for reliable 24/7 surveillance in demanding environments. Featuring a 1/3" Progressive Scan CMOS sensor, this camera delivers crisp 2560x1440 resolution at 30fps with 120dB True WDR for clear imaging in challenging lighting conditions. Equipped with a 2.8mm fixed lens providing a 104.7° horizontal field of view, it is ideal for indoor and outdoor applications requiring wide-area coverage.

Advantages

With IP67 weatherproof and IK10 vandal-resistant construction, the IPC3614SS-ADF28KM-I0-BLACK ensures durability in harsh conditions. The built-in IR LEDs offer up to 30m night vision, while H.265 compression reduces bandwidth and storage costs. Smart analytics including motion detection, intrusion detection, and line crossing detection enhance security efficiency.

Suitable for

• Retail stores and shopping centers
• Office buildings and warehouses
• Parking lots and perimeter surveillance
• Schools and public facilities

Key specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Max Resolution: 4MP (2560x1440) @ 30fps
• Lens: 2.8mm fixed, F1.6
• Horizontal Angle of View: 104.7°
• IR Range: Up to 30m
• Video Compression: H.265, H.264, MJPEG
• WDR: 120dB True WDR
• Minimum Illumination: 0.003 Lux (Color), 0 Lux (IR on)
• Audio: Built-in microphone
• Local Storage: MicroSD slot up to 256GB
• Network: 1x RJ45 10/100M Ethernet
• Power: 12V DC or PoE (IEEE 802.3af)
• Power Consumption: Max 5.5W
• Protection: IP67, IK10
• Operating Temperature: -30°C to 60°C
• Housing: Metal base, plastic dome
• Color: Black

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Pair with UNIVIEW NVRs for seamless integration and advanced analytics.
