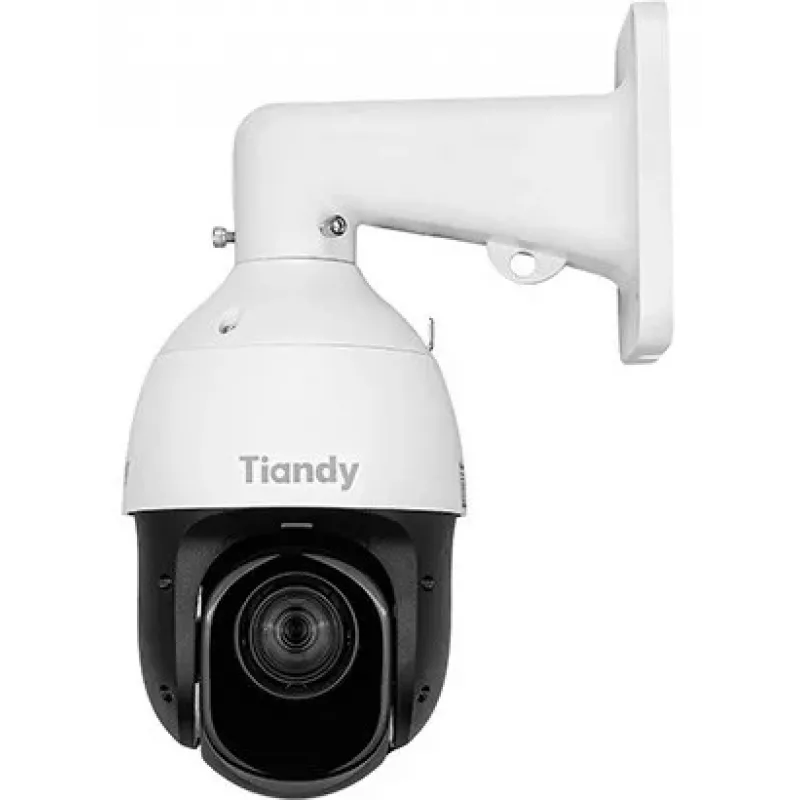

Cámara IP PTZ TC-H324S SPEC:25X/I/E/A/V/V3.0

The TC-H324S SPEC:25X/I/E/A/V/V3.0 is a high-performance IP PTZ camera designed for professional surveillance. Featuring a 1/2.8" Progressive Scan CMOS sensor, it delivers 2MP Full HD resolution at 1920x1080. With 25x optical zoom and 16x digital zoom, it captures detailed images over long distances. The camera supports H.265/H.264/MJPEG video compression and offers 120dB Super WDR for clear imaging in challenging lighting conditions. Its robust design includes IP66 and IK10 ratings, ensuring durability in outdoor environments. Smart features include tripwire, perimeter detection, face detection, and people counting.

Advantages

Exceptional 25x optical zoom with 150m IR distance for night vision. 360° endless pan and -15° to 90° tilt with auto flip provide comprehensive coverage. Supports PoE+ for simplified installation. Advanced analytics enhance security monitoring.

Suitable for

• Perimeter security for commercial and industrial sites
• City surveillance and traffic monitoring
• Large area monitoring such as parking lots and campuses

Key specifications

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max Resolution: 2MP (1920x1080)
• Optical Zoom: 25x
• Digital Zoom: 16x
• Focal Length: 4.8mm ~ 120mm
• IR Distance: Up to 150m
• Pan Range: 360° Endless
• Tilt Range: -15° ~ 90° (Auto Flip)
• Video Compression: H.265 / H.264 / MJPEG
• Audio I/O: 1-ch Input, 1-ch Output
• Alarm I/O: 2-ch Input, 1-ch Output
• Storage: Micro SD Card Slot, up to 256GB
• Network Interface: 1x RJ45 10M/100M Ethernet
• Power Supply: DC12V / PoE+ (IEEE 802.3at)
• Ingress Protection: IP66
• Vandal Resistance: IK10
• WDR: 120dB Super WDR
• Minimum Illumination: Color: [email protected], B/W: [email protected], 0Lux with IR
• Smart Features: Tripwire, Perimeter, Object Abandon/Lost, Face Detection, People Counting
• Operating Temperature: -40°C ~ 65°C

Recommendations

Ideal for professional security installations requiring high zoom and robust outdoor performance. Ensure PoE+ switch or injector for power and data.
