Cámara PTZ ROCWARE RC20 1080p zoom óptico 12x HDMI USB 3.0 LAN

Capturing every detail in a conference room or lecture hall is challenging when the camera cannot follow the action. The ROCWARE RC20 PTZ Camera solves this with smooth pan, tilt, and 12x optical zoom, ensuring presenters and whiteboards stay in frame. It delivers 1080p video at up to 60fps over HDMI, USB 3.0, or LAN, making it a flexible choice for live streaming, video conferencing, and lecture capture.

Who is it for

This camera suits corporate meeting rooms, educational institutions, houses of worship, and event spaces that need reliable, remote-controlled video capture. It works with common control protocols, so it integrates into existing AV setups without extra hardware.

Main features

• 1080p Full HD resolution at up to 60fps for smooth, detailed video.
• 12x optical zoom plus 10x digital zoom to frame distant subjects.
• Wide 72.5° horizontal field of view to cover entire rooms.

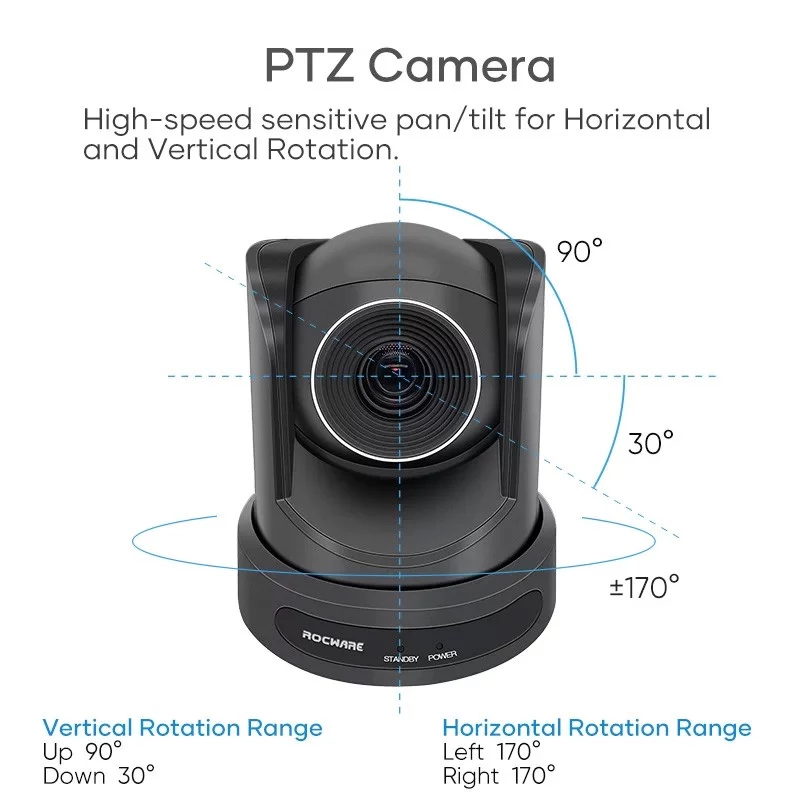

• Pan range ±170° and tilt range -30° to +90° for flexible positioning.
• Simultaneous HDMI, USB 3.0, and LAN outputs for versatile connectivity.
• Supports VISCA, Pelco-D/P, ONVIF, and optional NDI|HX control protocols.
• Up to 255 presets for quick recall of camera positions.
• Low light performance down to 0.5 lux for dimly lit environments.

Specifications

• Sensor: 1/2.8 inch CMOS, 2.07 megapixels
• Video resolutions: 1080p (1920x1080) @ 60/50/30/25fps, 720p (1280x720) @ 60/50/30/25fps
• Lens focal length: f=3.9mm ~ 46.8mm
• Horizontal angle of view: 7.5° (tele) ~ 72.5° (wide)
• Video compression: H.264, H.265
• Audio input: 1x 3.5mm line in
• Control interfaces: RS-232, RS-485, LAN (RJ45)
• Power supply: DC 12V / 1A, max 12W
• Signal-to-noise ratio: ≥55dB
• Mounting: wall, ceiling, or tripod

Tips

For the best image quality, use a 12V DC power supply with at least 1A output. When using NDI|HX, ensure your network switch supports the required bandwidth. Store up to 255 preset positions to quickly switch between speaker and whiteboard views during a session.
