Campana extractora Bosch Serie 4 DFT63AC50 semiintegrada (extraíble) Plata 360 m³/h

The Bosch Serie 4 DFT63AC50 is a semi built-in (pull-out) cooker hood designed for standard kitchens. With a width of 598 mm and a compact depth of 280 mm, it integrates into wall cabinets and provides airflow up to 360 m³/h. The unit supports both ducted extraction and recirculating operation and uses an aluminium grease filter to capture vapours and grease. Controls are simple button switches and illumination is delivered by two 3 W LED bulbs. The appliance combines a moderate extraction rate with a discreet silver appearance and compact height of 180 mm.

Advantages

The pull-out design offers space-saving integration and a larger capture area when extended, while remaining concealed when not in use. Aluminium grease filtration is washable and durable, reducing maintenance cost compared with disposable filters. Dual LED lighting provides energy-efficient task illumination during cooking. Button controls allow straightforward speed selection and on/off operation. The hood’s energy consumption and motor power are tuned for moderate ventilation needs in everyday cooking environments.

Suitable for

• Small to medium household kitchens where a compact, semi built-in hood is required
• Installations requiring either ducted or recirculating ventilation
• Users who prefer simple button controls and integrated LED lighting
• Kitchens where a silver-coloured appliance is desired to match stainless steel or aluminium finishes

Key specifications

• Width: 598 mm
• Depth: 280 mm
• Height: 180 mm
• Maximum extraction power: 360 m³/h
• Noise level: 68 dB
• Type: Semi built-in (pull-out)

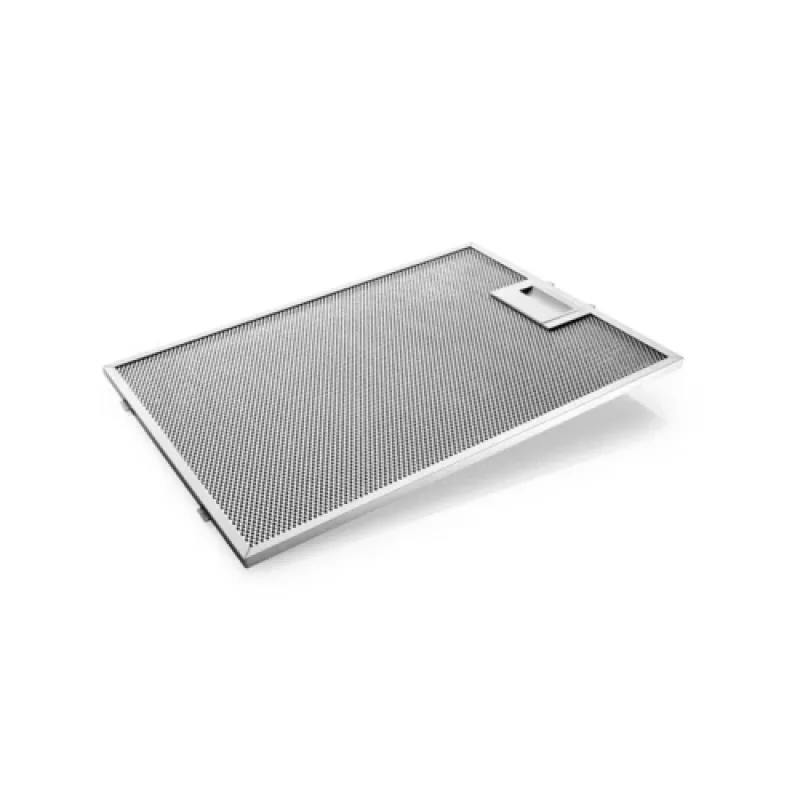

• Grease filter: Aluminium, washable

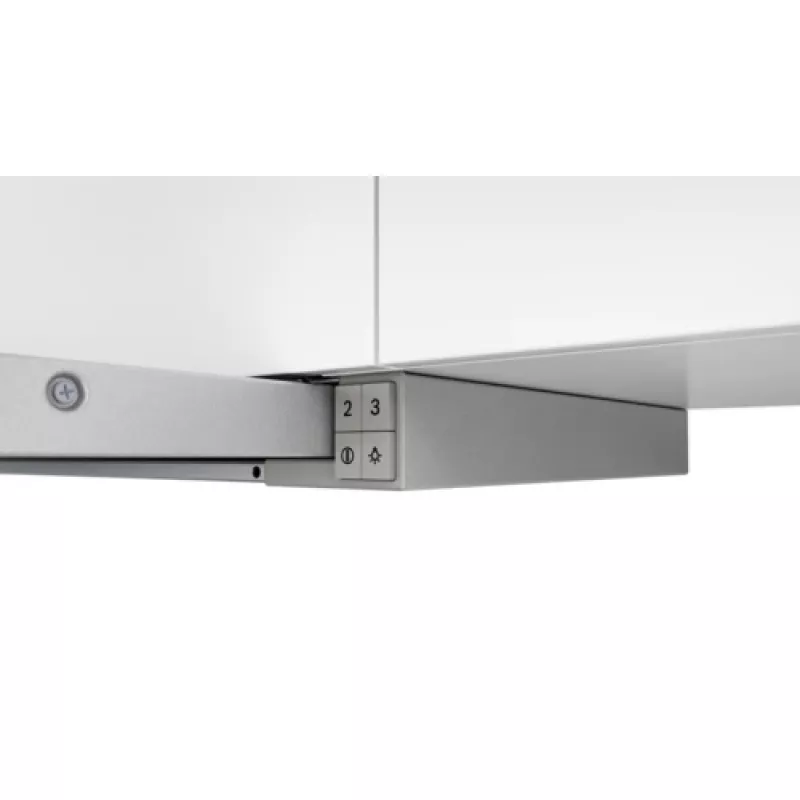

• Control type: Buttons

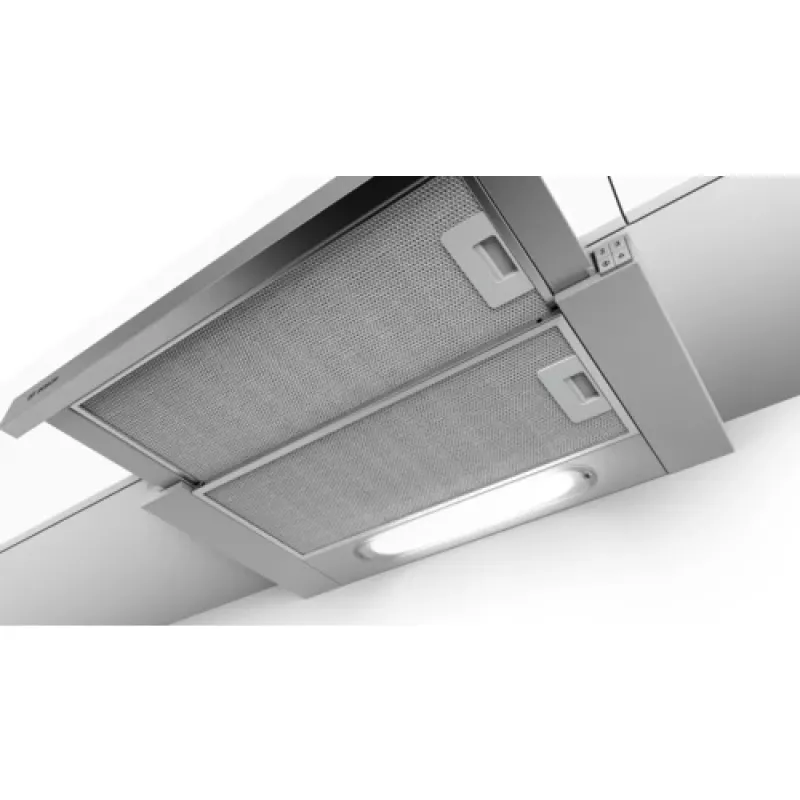

• Lighting: 2 × 3 W LED bulbs
• Energy consumption: 68 kWh/year
• Connected load: 146 W; motor power: 140 W
• Colour: Silver

How to use

Install the hood according to the manufacturer’s instructions for either ducted or recirculating configuration, ensuring correct connection to the extractor duct or carbon filter assembly where required. To operate, pull out the hood section to increase capture area, then use the button controls to select the desired fan speed or switch on the LED lights. Regularly run the hood during and after cooking to remove steam and odours effectively.

Recommendations

Clean the aluminium grease filter regularly in warm soapy water or dishwasher as recommended to maintain extraction performance. If using recirculating mode, replace the active charcoal filters at intervals specified by the manufacturer. To reduce noise impact, avoid highest fan setting for prolonged periods and ensure the ductwork is installed with minimal bends and correct diameter.
