Campana extractora empotrable MAAN Fiugi 2, 500 mm de ancho, carcasa de acero, filtro de carbón, 3 velocidades

Built-in under-cupboard kitchen hood MAAN Fiugi 2 with a 500 mm width and steel housing. The hood can operate as ducted or recirculating; a motor and carbon filter are included. The aluminium grease filter is washable. Front-positioned button controls and front lighting with a 5 W bulb provide basic operation and illumination. Maximum extraction capacity is 310 m³/h, annual energy consumption is 35 kWh, and the unit offers three speeds.

Advantages

The steel housing and black finish provide durable construction and a neutral appearance suitable for many kitchens. Dual-mode extraction (ducted or recirculating) and included carbon filter increase installation flexibility. A washable aluminium grease filter reduces maintenance costs, while a compact 500 mm width fits smaller cabinets. The hood delivers up to 310 m³/h extraction with three selectable speeds and front-located controls for convenient access.

Suitable for

• Small to medium kitchens and under-cupboard installations
• Homes requiring either ducted or recirculating ventilation
• Users who prefer simple button controls and front lighting

Key specifications

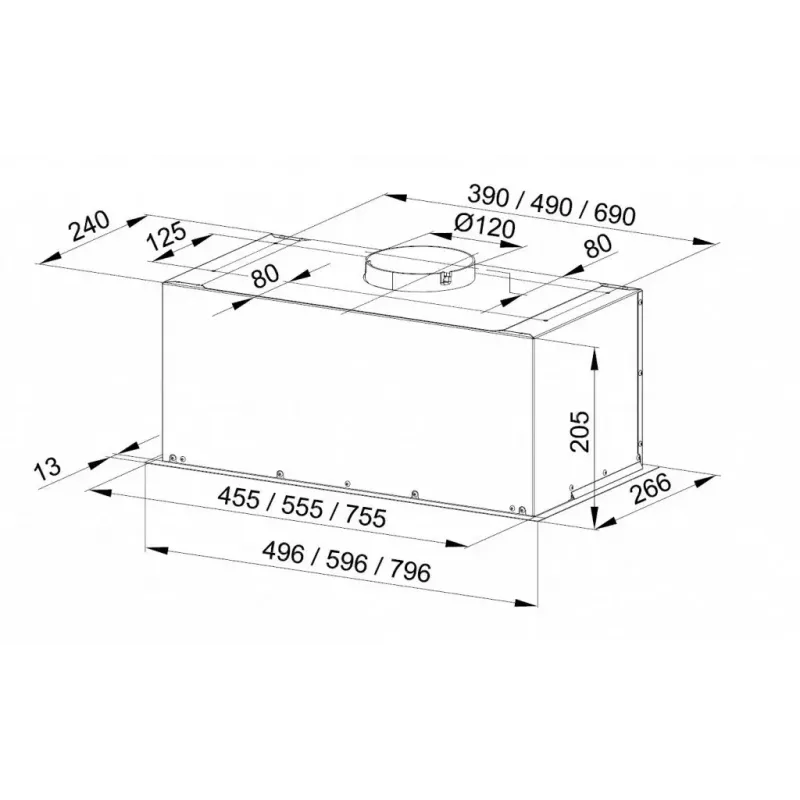

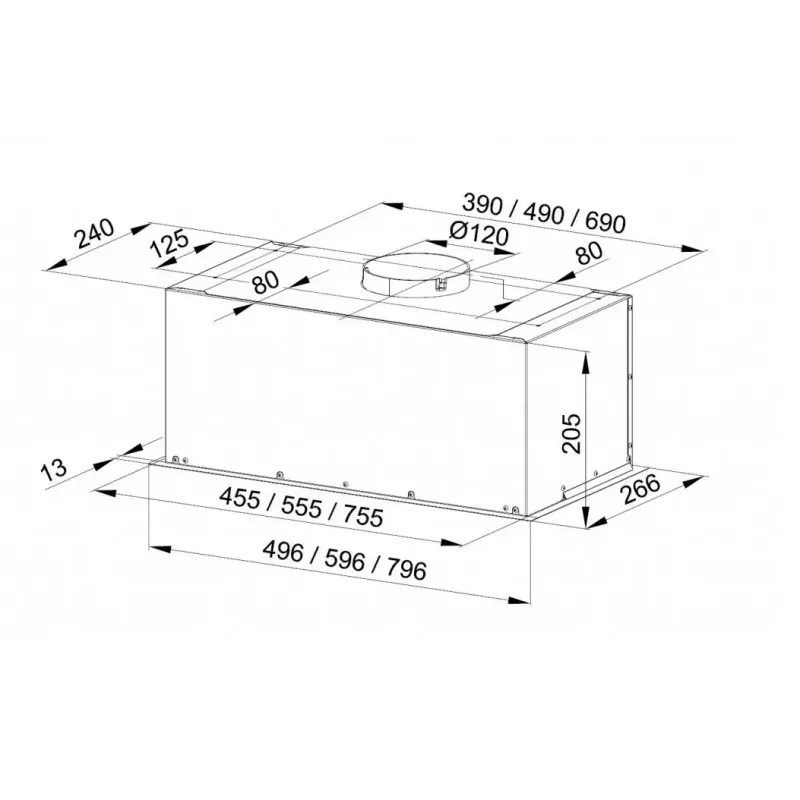

• Width: 500 mm
• Depth: 266 mm
• Housing material: Steel
• Colour: Black
• Extraction type: Ducted or recirculating
• Included motor and carbon filter for recirculation
• Grease filter: Washable aluminium
• Maximum extraction power: 310 m³/h
• Number of speeds: 3
• Noise level: 51 dB (low) – 59 dB (high)
• Lighting: 1 × 5 W bulb, front position
• Control type and position: Buttons, front
• Annual energy consumption: 35 kWh
• Energy efficiency class (old scale): C; Fluid dynamic efficiency class: D; Lighting efficiency class: A

How to use

Install the MAAN Fiugi 2 under a kitchen cabinet following the supplied user manual and safety instructions. Choose ducted or recirculating configuration during installation; for recirculation, fit the included carbon filter. Use the front buttons to select one of three fan speeds. Replace or clean the washable aluminium grease filter regularly and replace the carbon filter as recommended by the manufacturer. Operate the front light independently as needed.

Recommendations

Do not install without reading the instructions. Regularly clean the aluminium grease filter and replace the carbon filter in recirculating mode to maintain performance and reduce noise.
