Campana extractora integrable Elica ELITE 14 LUX 50 BL — 500 mm, filtro de grasa de aluminio, caudal máx. de extracción 650 m³/h, nivel de ruido 62 dB, iluminación LED 2700 K

The Elica Elite 14 LUX 50 BL is a built-in kitchen extractor hood designed for discreet installation and efficient removal of cooking fumes. With a maximum extraction power of 304 m³/h, a compact width of 498 mm and a depth of 455 mm, this model fits within standard cabinet spaces while providing both ducted and recirculating extraction modes. The unit includes an aluminium grease filter and two 3 W LED bulbs to illuminate the cooking area. Energy performance is rated on the A+++ to D scale and the fluid dynamic efficiency class is E, with annual energy consumption of 62 kWh.

Advantages

The built-in format allows the hood to be integrated into kitchen cabinets for a streamlined look without compromising extraction performance. An aluminium grease filter captures airborne grease and is washable for repeated use. Dual extraction modes (ducted and recirculating) provide installation flexibility depending on kitchen layout. Integrated LED lighting offers efficient task illumination with low power consumption. The unit combines compact dimensions and practical functionality suitable for smaller to medium-sized kitchens.

Suitable for

• Small to medium domestic kitchens where a built-in hood is required
• Kitchens with the option for either ducted venting or recirculation
• Users seeking low-consumption LED lighting above the cooking area
• Spaces where a compact 498 mm wide extractor fits standard cabinet openings

Key specifications

• Width: 498 mm
• Depth: 455 mm
• Maximum extraction power: 304 m³/h
• Noise level: 62 dB
• Grease filter type: Aluminium (washable)
• Extraction types: Ducted and recirculating
• Lighting: 2 × 3 W LED bulbs

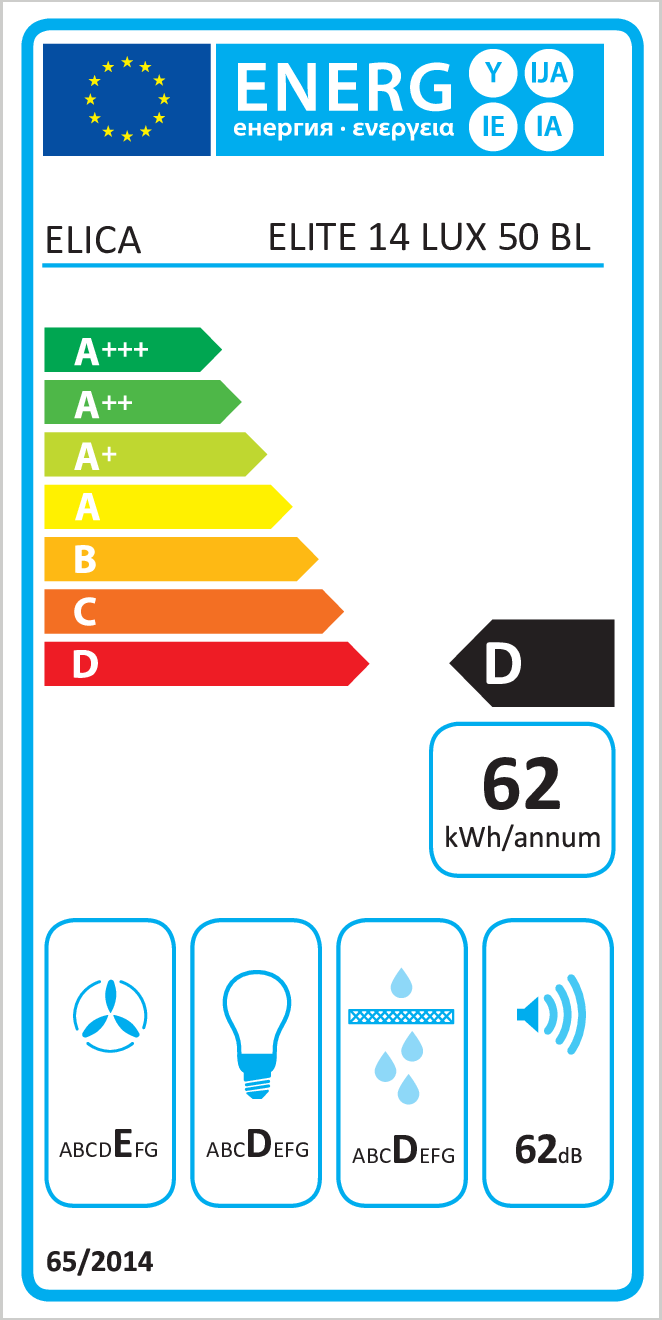

• Annual energy consumption: 62 kWh
• Energy efficiency class: D
• Fluid dynamic efficiency class: E
• Color: Black

How to use

Install the Elica Elite 14 LUX 50 BL into a compatible cabinet opening following the manufacturer’s installation instructions and local ventilation regulations. Choose ducted extraction where a flue to the outside is available for optimal removal of fumes; select recirculating mode if external venting is not possible, ensuring correct placement of charcoal filters if required. Operate the hood during cooking at the appropriate fan speed to match cooking intensity, and use the integrated LED lights to illuminate the hob area as needed.

Recommendations

Clean the aluminium grease filter regularly according to the schedule in the user manual; most aluminium filters are dishwasher-safe or can be cleaned with warm soapy water. For sustained performance, inspect and replace any activated carbon filters used in recirculation mode at the intervals recommended by the manufacturer. To reduce noise and improve efficiency, keep ductwork unobstructed and sized correctly for the chosen extraction path.
