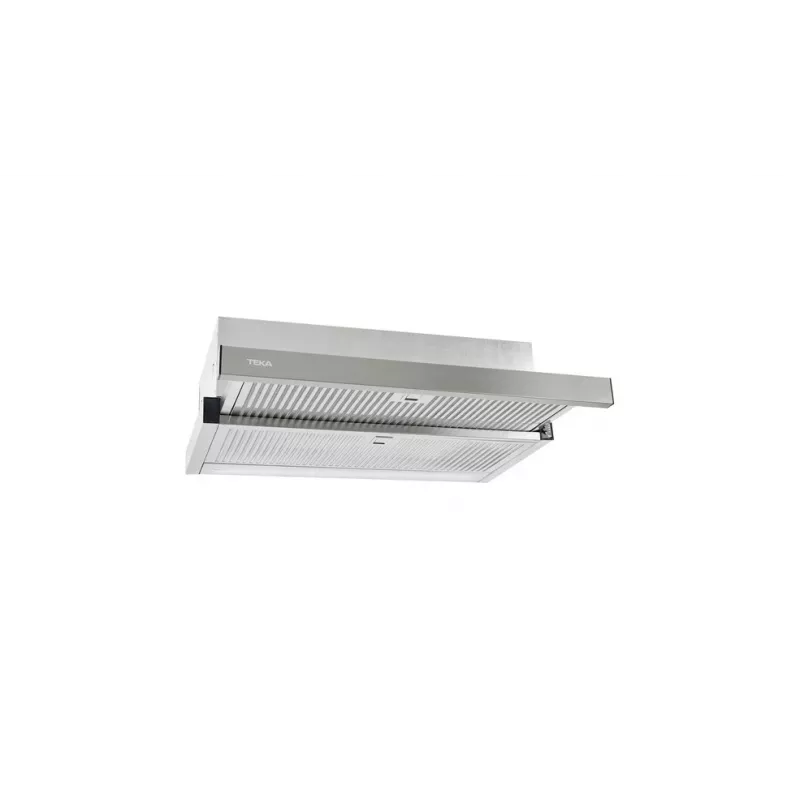

Campana extractora semintegrada TEKA CNL 6415 Plus, 600 mm, 385 m³/h, filtro de aluminio, acero inoxidable

The Teka CNL 6415 Plus is a semi built-in (pull out) extractor hood designed for integration into kitchen cabinets. Constructed with a stainless steel housing and a retractable front panel, it provides a compact solution for local extraction. The hood supports both ducted and recirculating installation modes and delivers a maximum extraction power of 385 m³/h. An aluminium grease filter captures cooking grease, while LED lighting at the back illuminates the cooktop. The unit is designed for standard household electrical supply with an AC input of 230 V at 50 Hz and an annual energy consumption of 26.7 kWh.

Advantages

The semi built-in pull-out design saves visible space when not in use and integrates neatly with overhead cabinetry. Stainless steel construction offers corrosion resistance and straightforward surface cleaning. The aluminium grease filter is washable and provides effective grease capture for frequent cooking. Dual installation capability (ducted or recirculating) allows flexible placement according to kitchen layout and ventilation availability. LED lighting provides energy-efficient illumination while the fluid dynamic efficiency class B indicates balanced airflow performance relative to energy use.

Suitable for

• Small to medium kitchens where a discreet built-in hood is preferred
• Homes requiring flexible ducted or recirculating installation
• Cooking setups with a 60 cm cabinet width
• Users who want washable aluminium grease filtration

Key specifications

• Width: 600 mm
• Depth: 323 mm
• Maximum extraction power: 385 m³/h
• Type: Semi built-in (pull out)
• Grease filter type: Aluminium
• Bulb type: LED (rear position)
• Product colour: Stainless steel
• Annual energy consumption: 26.7 kWh
• Electrical: AC 230 V, 50 Hz
• Fluid dynamic efficiency class: B
• Noise level (typical): 64 dB

How to use

Install the hood into a compatible 60 cm wide overhead cabinet following the manufacturer’s mounting instructions and choose either ducted exhaust to the outside or a recirculating setup with a charcoal filter (if required). Slide out the pull-out panel to operate the hood during cooking; controls and fan settings allow adjustment of extraction power up to the rated 385 m³/h. Use the rear-positioned LED lighting to illuminate the cooking surface. Ensure connection to a 230 V, 50 Hz supply by a qualified electrician if permanent wiring is required.

Recommendations

Clean the aluminium grease filter regularly by removing and washing it in warm soapy water or in a dishwasher if allowed by the manufacturer. For optimal extraction performance maintain clear ducting when installed in ducted mode and replace any optional charcoal filters used for recirculation according to their replacement schedule. Avoid abrasive cleaners on stainless steel surfaces and wipe with a soft cloth to preserve finish and functionality.
