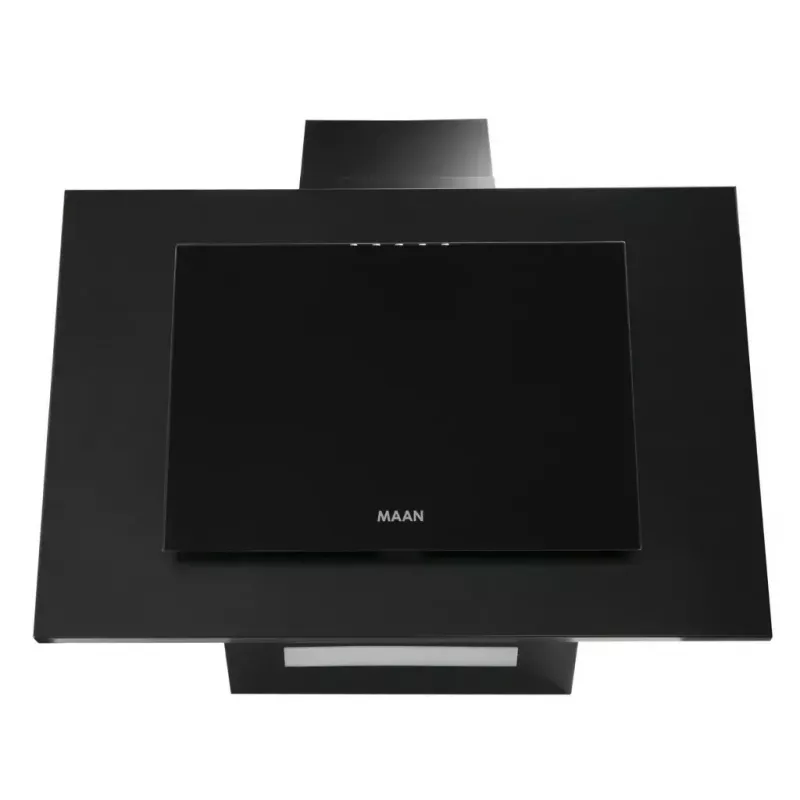

Campana extractora vertical MAAN Vertical P 2 60, 600 mm, filtro de carbón, 310 m³/h, 3 velocidades, 55 dB

MAAN Vertical P 2 60 canopy extractor hood is a 600 mm kitchen hood suitable for ducted or recirculating installation. It includes an integrated motor, an aluminium washable grease filter and a charcoal filter for recirculation. The unit offers rear lighting with one 5 W bulb, three fan speeds and a maximum extraction rate of 310 m³/h. Annual energy consumption is 34 kWh and the declared energy efficiency class is C. Width is 600 mm; noise ranges from 49 dB on low speed to 62 dB on high speed.

Advantages

The hood combines a compact 600 mm width with a washable aluminium grease filter and replaceable charcoal filter for recirculating use. Built-in motor and simple button controls provide straightforward operation, while rear lighting with a 5 W bulb illuminates the cooking area. Three speed settings allow adjustment between quieter and more powerful extraction.

Suitable for

Key specifications

How to use

Install the canopy hood according to the supplied user manual and safety warnings. Choose ducted or recirculating setup depending on your kitchen configuration and, if recirculating, fit the charcoal filter before operation. Use the button controls on the rear to select one of three fan speeds and switch the rear light on or off as needed. Clean the aluminium grease filter regularly and replace the charcoal filter when saturation reduces performance.

Recommendations

Do not install the hood without reading the instructions. Regularly clean the washable grease filter and replace the charcoal filter for effective ventilation and to maintain specified extraction performance.
