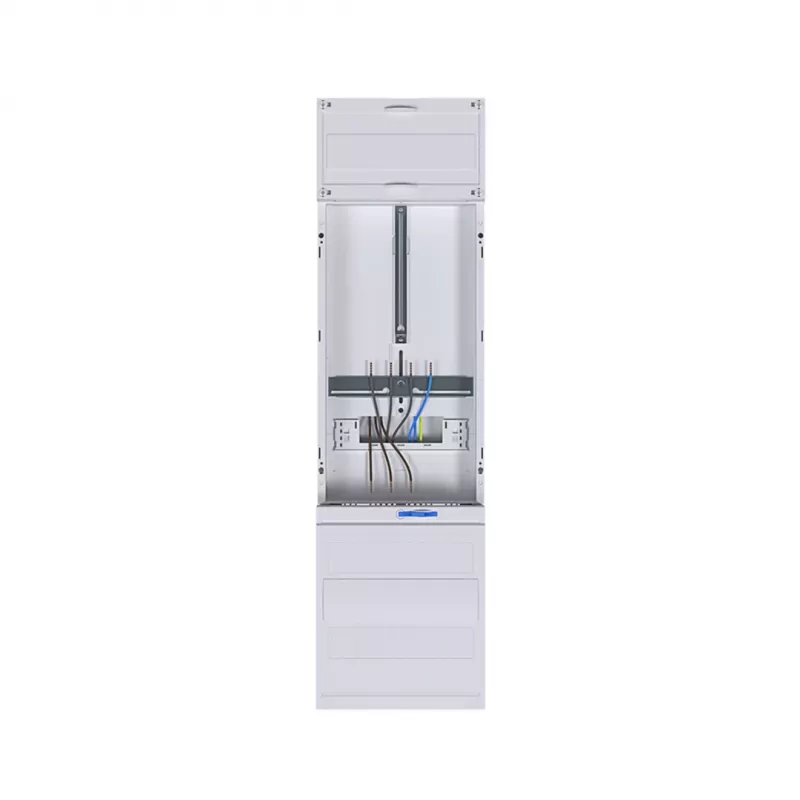

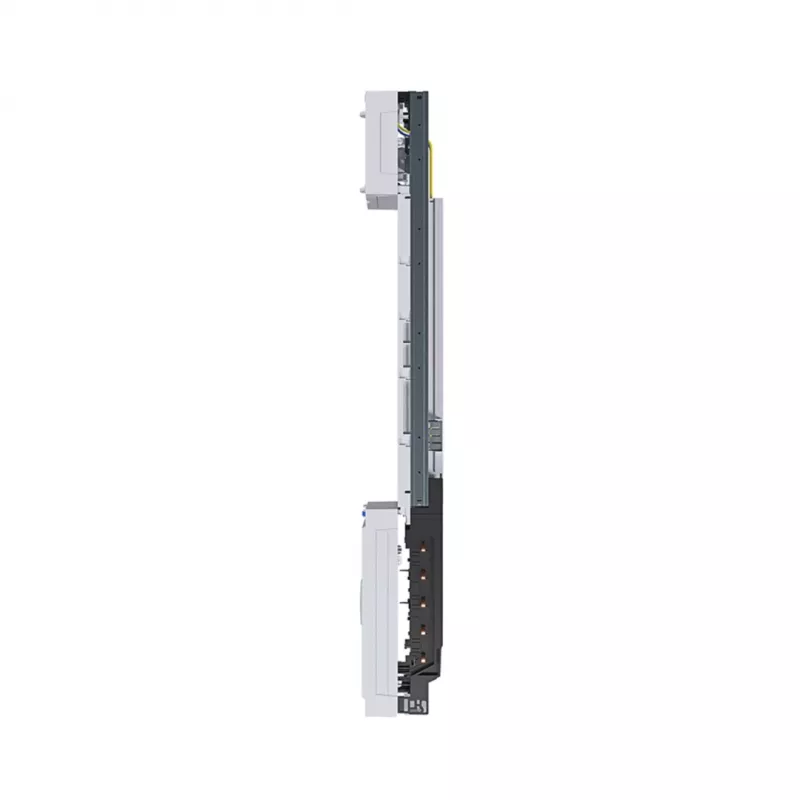

Campo de contador completo Hager ZH23X7, 1 emplazamiento de contador, 1 emplazamiento de contador previo, 1 planta, 900x250 mm, barra colectora de 5 polos, 300 mm, con barra colectora

For residential and light commercial distribution boards, the Hager ZH23X7 complete metering field provides a single meter position and a single pre-meter position in a one-story configuration. It is supplied with a 5-pole busbar with 300 mm spacing, ready for installation in Hager Univers Z enclosures.

Key specifications

• Number of meter positions: 1
• Number of pre-meter positions: 1
• Number of levels: 1-story
• Busbar included: Yes
• Busbar configuration: 5-pole
• Busbar spacing/length: 300 mm
• System compatibility: Hager Univers Z
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• Mounting type: For distribution cabinets/enclosures
• Material: Galvanized steel sheet
• Connection technology: Screw terminals
• Meter type compatibility: eHZ and conventional meters
• Application: Residential and light commercial electrical distribution

Why choose it

The integrated busbar simplifies installation and ensures reliable power distribution. The galvanized steel construction offers durability, and the field is designed to accommodate both eHZ and conventional meters, making it versatile for various utility requirements.

Ideal use cases

• Residential electrical distribution boards
• Light commercial installations
• Retrofitting existing Hager Univers Z systems

Good to know

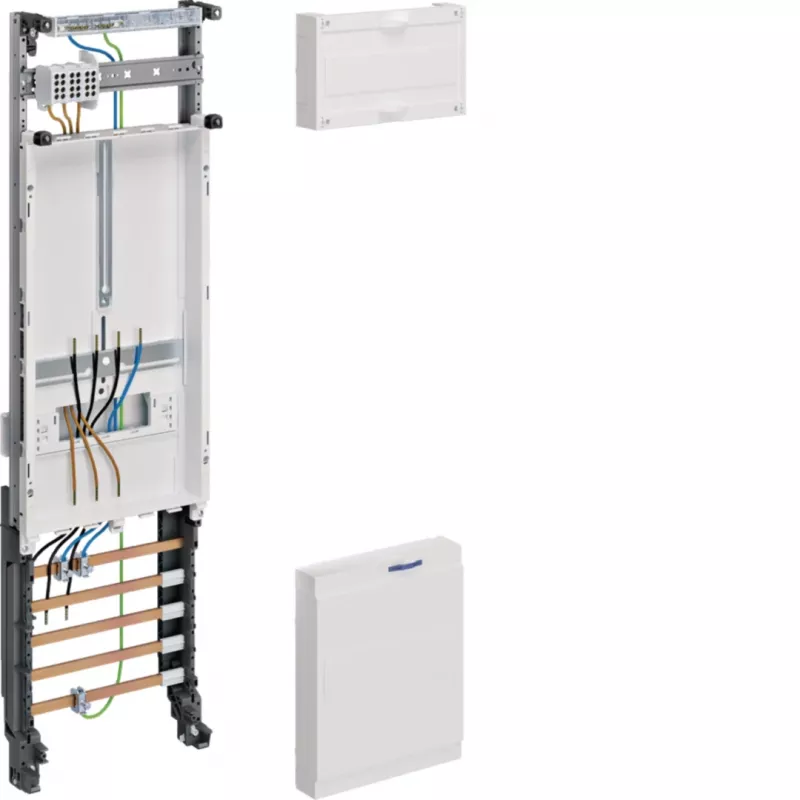

The ZH23X7 is a complete metering field, meaning it includes the necessary busbar and is ready for mounting in compatible enclosures. It is designed for a single meter position with a pre-meter position, suitable for standard household metering setups.
