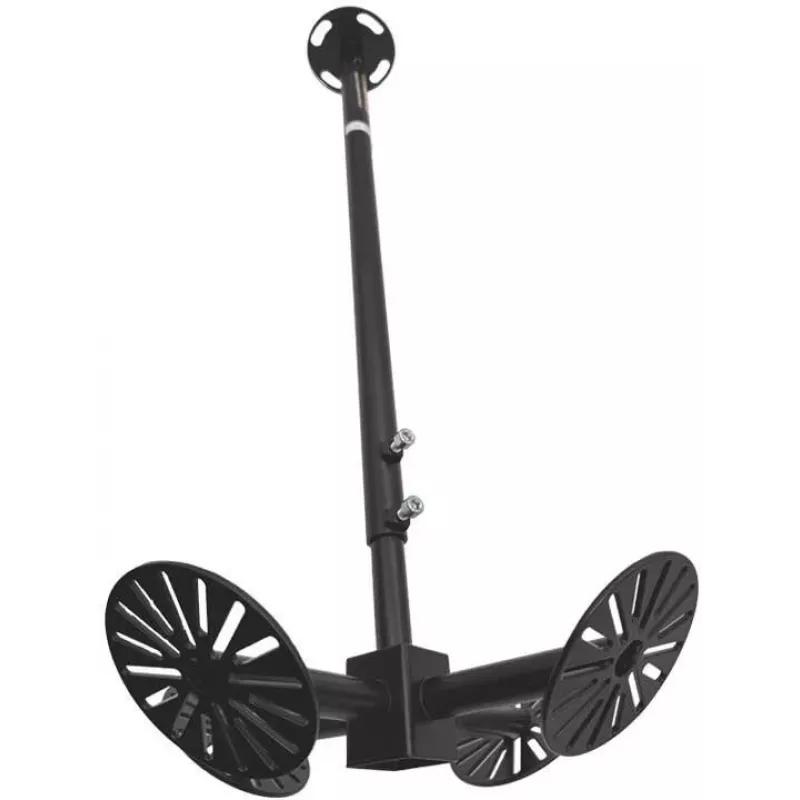

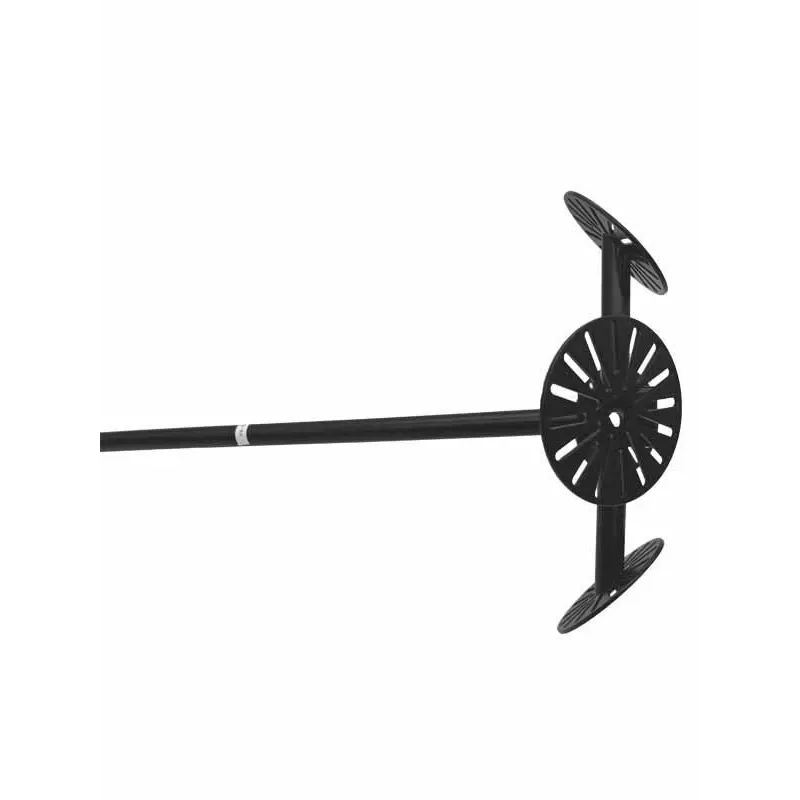

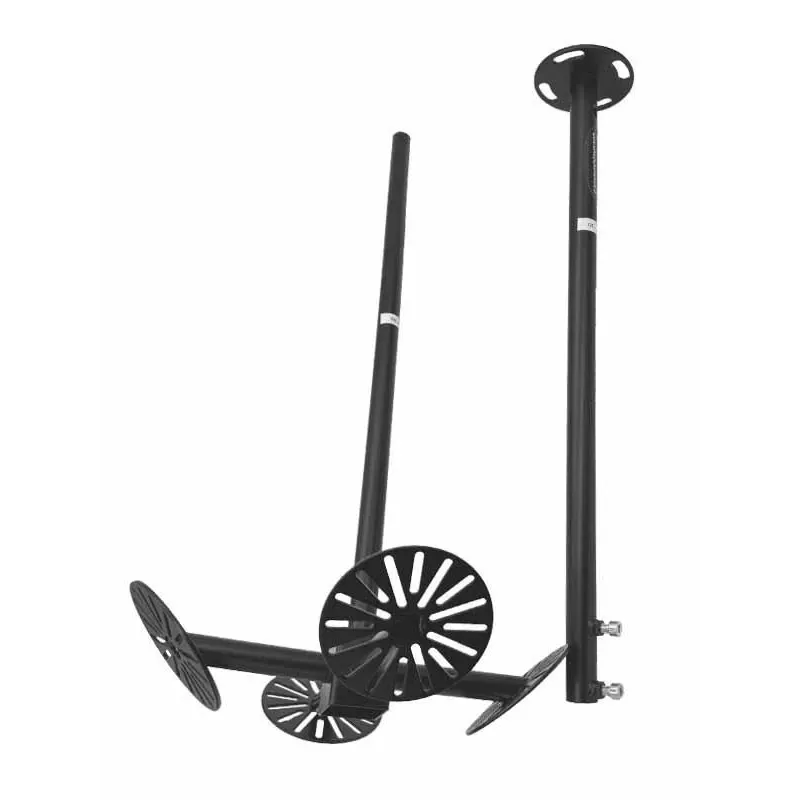

Camsafe CS40-KSO4 A Soporte de montaje en pared/techo antracita

The Camsafe CS40-KSO4 A is a robust and versatile wall/ceiling mount bracket designed for universal CCTV, IP, dome, and bullet cameras. Crafted from high-quality aluminum alloy with a powder-coated anthracite finish, this mount offers exceptional durability and weather resistance (IP66), making it suitable for both indoor and outdoor installations. Its vandal-resistant design ensures long-term reliability in demanding environments.

Advantages

This mount provides full 360° pan and 90° tilt adjustment, allowing precise camera positioning for optimal surveillance coverage. The integrated cable management channel keeps cables organized and protected, while the included mounting hardware (screws and wall plugs) simplifies installation. With a maximum load capacity of 10 kg, it supports a wide range of camera models.

Suitable for

• Indoor and outdoor surveillance systems
• Commercial and residential security installations
• IP, dome, bullet, and CCTV cameras with standard mounting interfaces

Key specifications

• Mounting Type: Wall / Ceiling
• Material: Aluminum Alloy
• Color: Anthracite
• Maximum Load Capacity: 10 kg (22 lbs)
• Rotation Angle (Pan): 360°
• Tilt Angle: 90°
• Cable Management: Integrated cable routing channel
• Weather Resistance: IP66 (Dustproof, Water-resistant)
• Finish: Powder-coated
• Mounting Hardware: Included (screws, wall plugs)
• Compatibility: Standard camera mounting interfaces
• Operating Temperature: -30°C to +60°C
• Humidity Resistance: 0-95% RH (non-condensing)
• Product Dimensions (L x W x H): 150 x 100 x 100 mm
• Product Weight: 0.75 kg
• Corrosion Resistance: Yes
• Design: Robust, Vandal-resistant

Recommendations

For best results, ensure the mounting surface is solid and capable of supporting the combined weight of the mount and camera. Use the provided hardware for secure installation. This mount is ideal for applications requiring reliable, all-weather performance.
