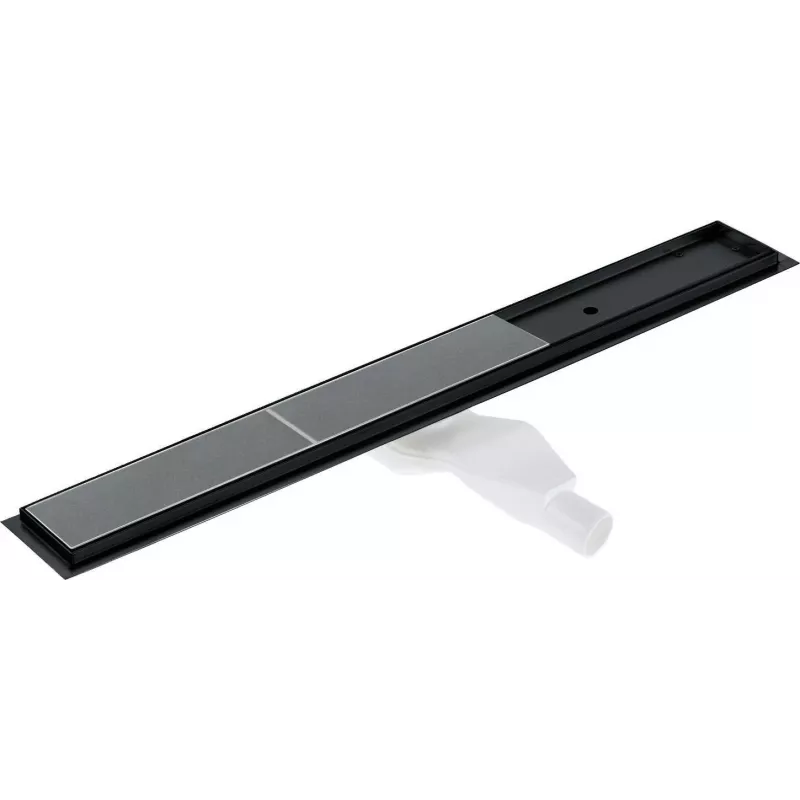

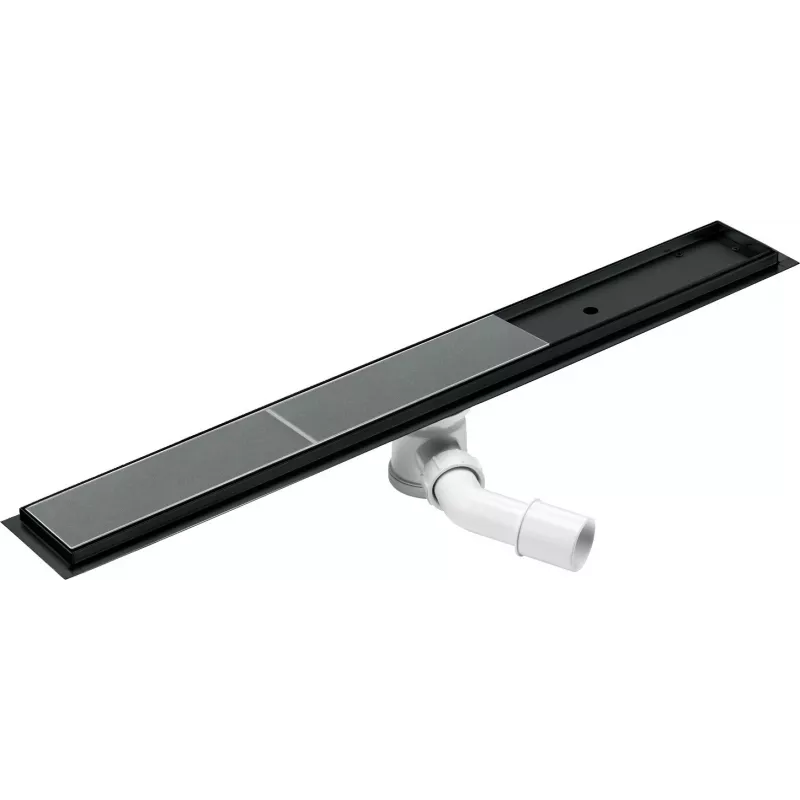

Canaleta de ducha DEANTE 70 cm - reversible

The DEANTE Floor Shower Channel 70 cm - Reversible is a high-quality linear shower drain designed for modern, floor-level wet rooms. Crafted from AISI 304 stainless steel with a brushed finish, it offers exceptional durability and corrosion resistance. The reversible grate design allows for either a tileable or flat stainless steel finish, seamlessly integrating into any tiled floor. With a flow rate of up to 50 L/min and an integrated siphon with 30 mm water seal, it ensures efficient drainage and odor prevention. The adjustable feet simplify leveling during installation, while the removable siphon makes cleaning easy. Suitable for walk-in showers and wet rooms, this drain meets load class K3 (up to 300 kg) and includes a grate removal hook and sealing membrane.

Advantages

High-quality AISI 304 stainless steel construction ensures long-lasting performance and resistance to corrosion. The reversible grate offers design flexibility, allowing you to match your tile pattern or choose a sleek flat stainless steel look. Easy to clean with a removable siphon, and simple to install with adjustable feet for perfect leveling.

Suitable for

• Walk-in showers
• Wet rooms
• Floor-level shower installations

Key specifications

• Drain Type: Linear Shower Drain
• Length: 700 mm
• Grate Design: Reversible (Tileable / Flat Stainless Steel)
• Material: AISI 304 Stainless Steel
• Outlet Diameter: DN50 (50 mm)
• Flow Rate: Up to 50 L/min
• Minimum Installation Height: 65 mm
• Water Seal: Integrated Siphon
• Water Seal Depth: 30 mm
• Adjustable Feet: Yes, for leveling
• Cleaning Access: Removable Siphon for Easy Cleaning
• Corrosion Resistance: High
• Load Class: K3 (up to 300 kg)
• Application: Walk-in Showers, Wet Rooms
• Waterproofing: Integrated Sealing Flange
• Finish: Brushed Stainless Steel
• Installation Type: Floor-level
• Included Accessories: Grate removal hook, sealing membrane

Recommendations

For best results, ensure proper waterproofing and slope during installation. Compatible with standard DN50 waste pipes.
