Carcasa de alarma Pulsar AWO000/CA-4,5,6

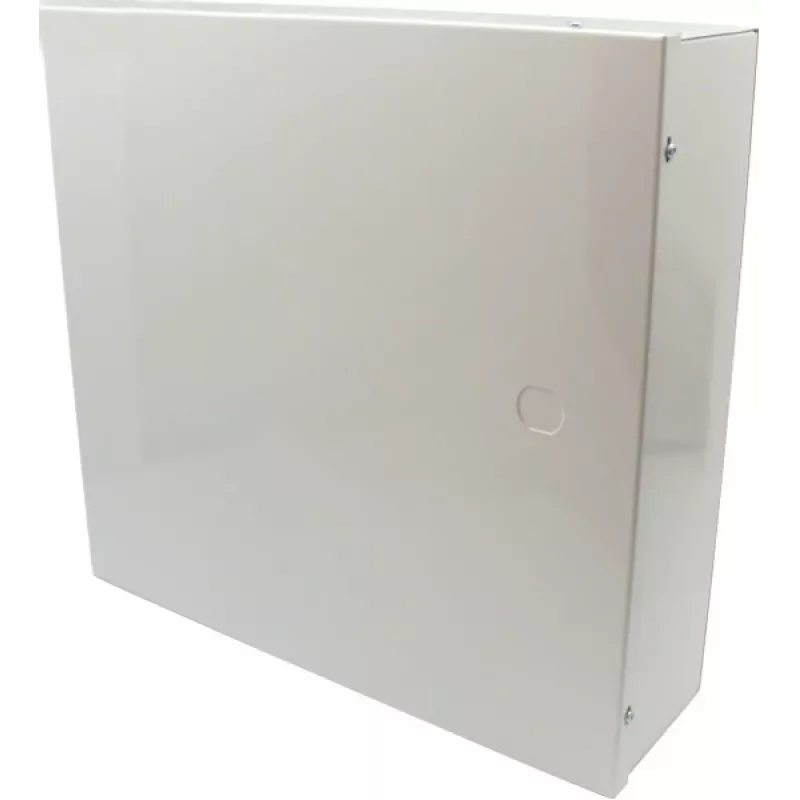

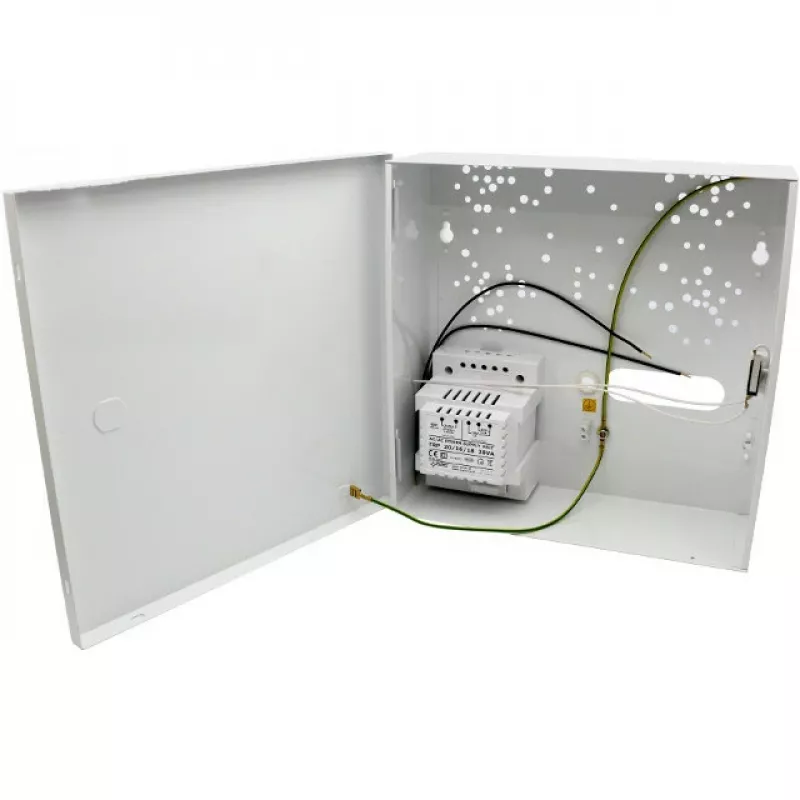

The Pulsar AWO000/CA-4,5,6 is a robust metal alarm housing designed for secure installation of alarm systems, access control, and CCTV equipment. Manufactured from 0.8 mm thick steel sheet with a white (RAL 9003) finish, this surface-mounted enclosure offers IP20 protection and includes tamper protection via a microswitch. It features a pre-drilled internal mounting plate, a battery compartment for up to 1x 7Ah/12V battery, and multiple cable entries for flexible wiring. The screw lock closure ensures secure access, while ventilation maintains optimal operating conditions. Compliant with CE standards, this housing is compatible with various Pulsar modules and power supplies.

Advantages

Durable steel construction with tamper protection ensures high security. Pre-drilled mounting plate simplifies installation. Battery compartment supports backup power. Ventilation extends component life.

Suitable for

• Alarm system installations
• Access control systems
• CCTV equipment housing
• Power supply enclosures

Key specifications

• Enclosure Type: Metal Housing
• Material: Steel Sheet, 0.8 mm thickness
• Colour: White (RAL 9003)
• Mounting: Surface (Wall-mounted)
• Protection Class: IP20
• Tamper Protection: Yes (Microswitch)
• Battery Compartment: Yes, max 1x 7Ah/12V
• Ventilation: Yes
• Closure: Screw Lock
• Operating Temperature: -10°C to +40°C
• Humidity: 20% to 90%
• Compliance: CE

Recommendations

For optimal performance, use with Pulsar power supplies and modules. Ensure proper ventilation and secure wall mounting.
