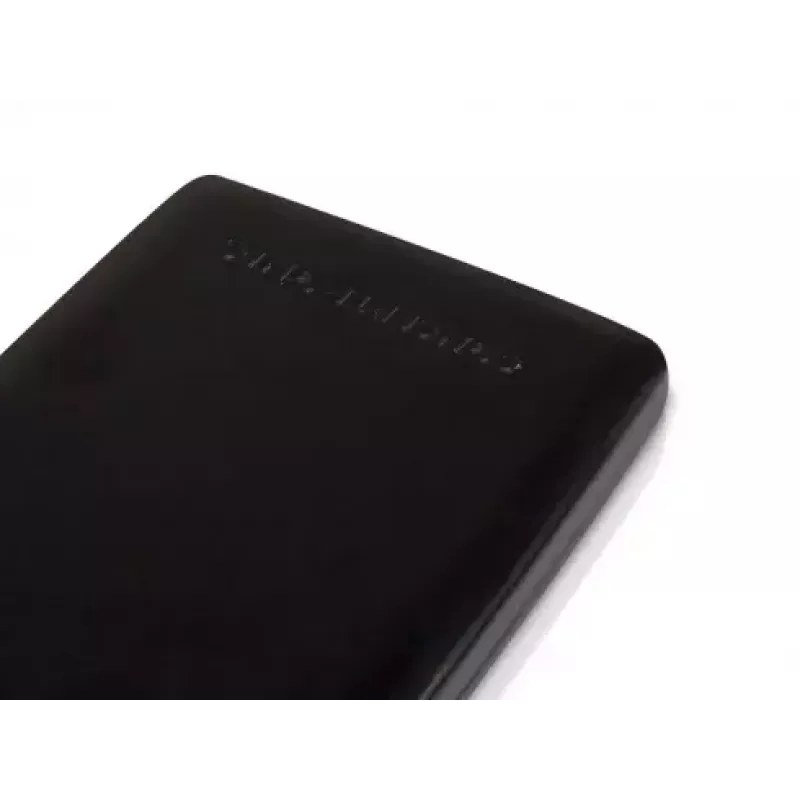

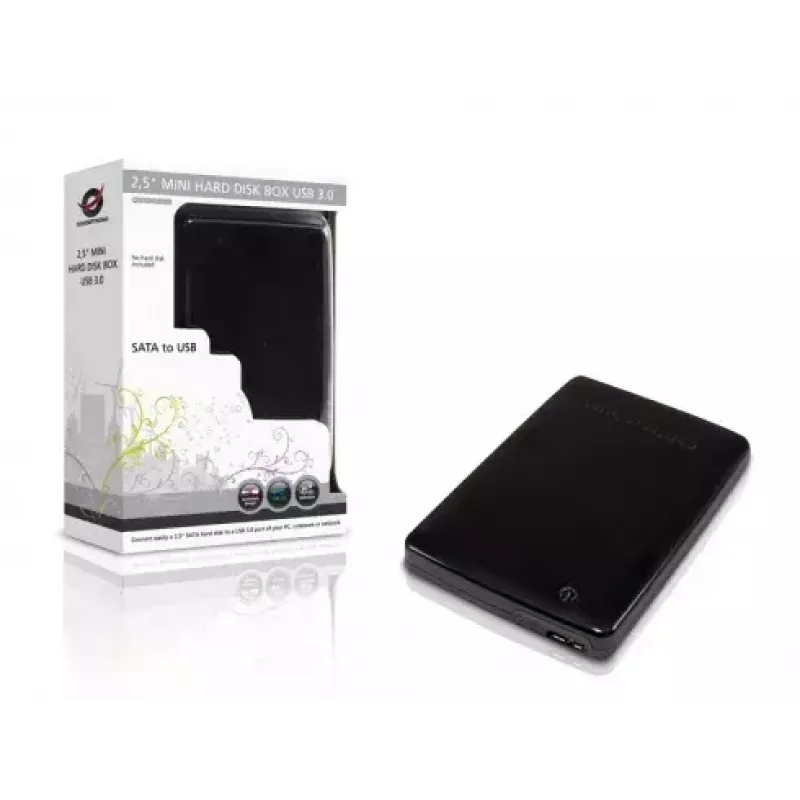

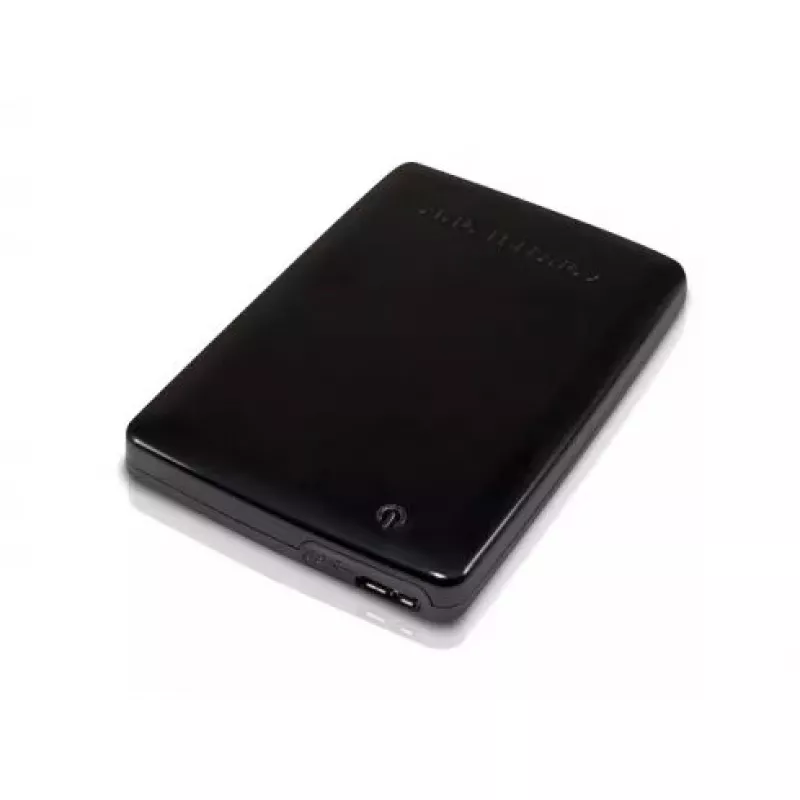

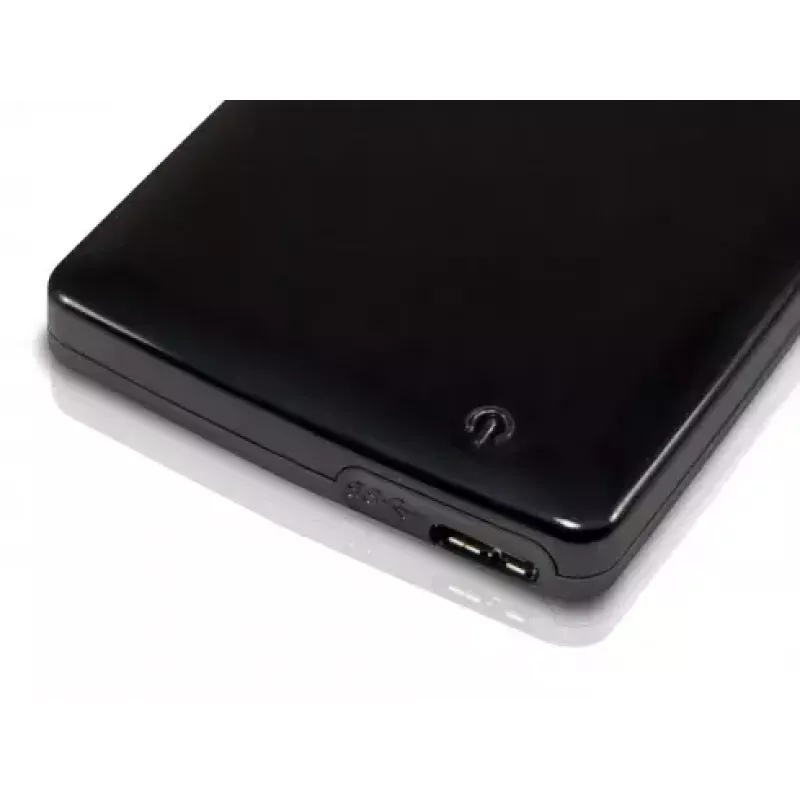

Carcasa de disco duro Conceptronic CHD2MUSB3B Mini USB 3.0

The Conceptronic CHD2MUSB3B Mini USB 3.0 2.5" hard disk box allows easy connection of a 2.5" SATA (9.5 mm) drive to a computer’s USB 3.0 port. The enclosure supports a maximum theoretical transfer rate of 5 Gbit/s (USB 3.0 / USB 3.2 Gen 1) and is designed as an ultra-slim, lightweight external casing for file transfer, backups or use as a secondary drive.

Advantages

The screwless slider mechanism enables tool-free assembly in seconds, and USB 3.0 SuperSpeed provides significantly faster transfers compared with USB 2.0. Its compact black design and 40 g weight make it highly portable and suitable for carrying in a pocket or bag. The enclosure supports 2.5" SATA drives (Serial ATA, SATA II, SATA III) and is compatible with common PCs, notebooks and netbooks.

Suitable for

• Transferring large video and media files
• Creating and storing backups
• Using an internal 2.5" SATA drive as an external secondary drive
• Portable data transport between computers

Key specifications

• Model: Conceptronic CHD2MUSB3B
• Supported drive: 1 × 2.5" SATA (9.5 mm)
• Supported interfaces: SATA, SATA II, SATA III
• USB version: USB 3.0 / USB 3.2 Gen 1 (3.1 Gen 1), backward compatible with USB 2.0
• Maximum data rate: up to 5 Gbit/s (theoretical)
• Color: Black
• Weight: 0.04 kg

How to use

Slide open the enclosure using the screwless slider, insert a 2.5" SATA drive (9.5 mm), close the enclosure and connect it to a computer using a USB 3.0 cable. The drive should be recognized automatically by most operating systems; if necessary, initialize or assign a drive letter using the OS disk management tools. For safe removal, use the operating system’s eject/safe removal function before unplugging the device.

Recommendations

Use a USB 3.0 port to achieve maximum transfer speeds and a USB 3.0 cable in good condition. Avoid exposing the enclosure to strong shocks or moisture and ensure the inserted drive is compatible with standard 2.5" SATA dimensions (9.5 mm thickness).
