Carcasa de pared Digitus Unique Series - doble sección, abatible

With a 100 kg load capacity and a pivoting rear frame, this 20U wall-mount cabinet redefines flexibility in network installations. The double-sectioned steel enclosure swings open for effortless access to cabling and equipment, while its 600x600mm footprint fits tight spaces without compromising on 19" mounting depth.

Overview

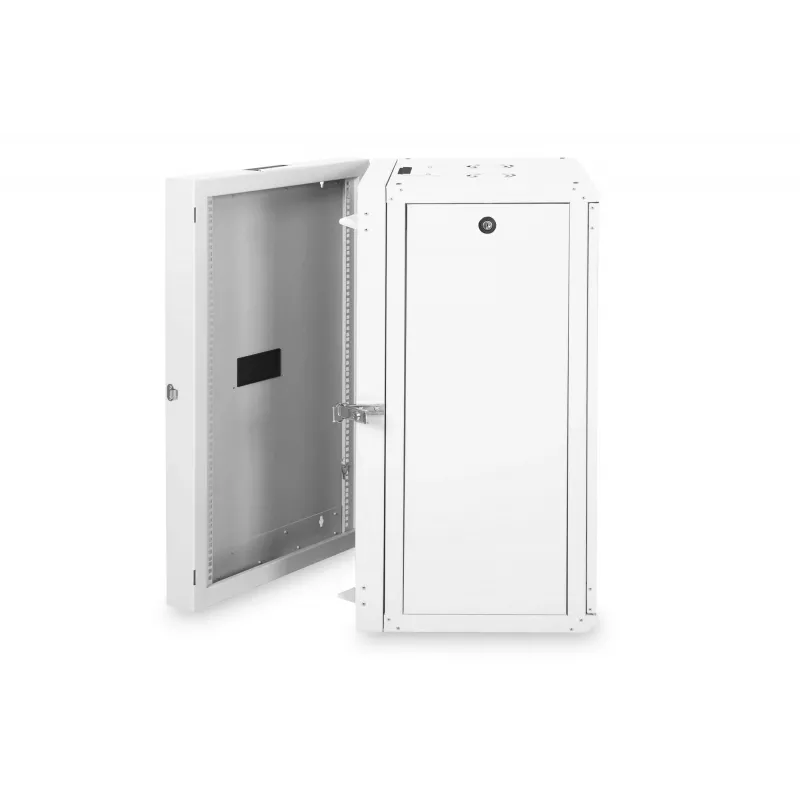

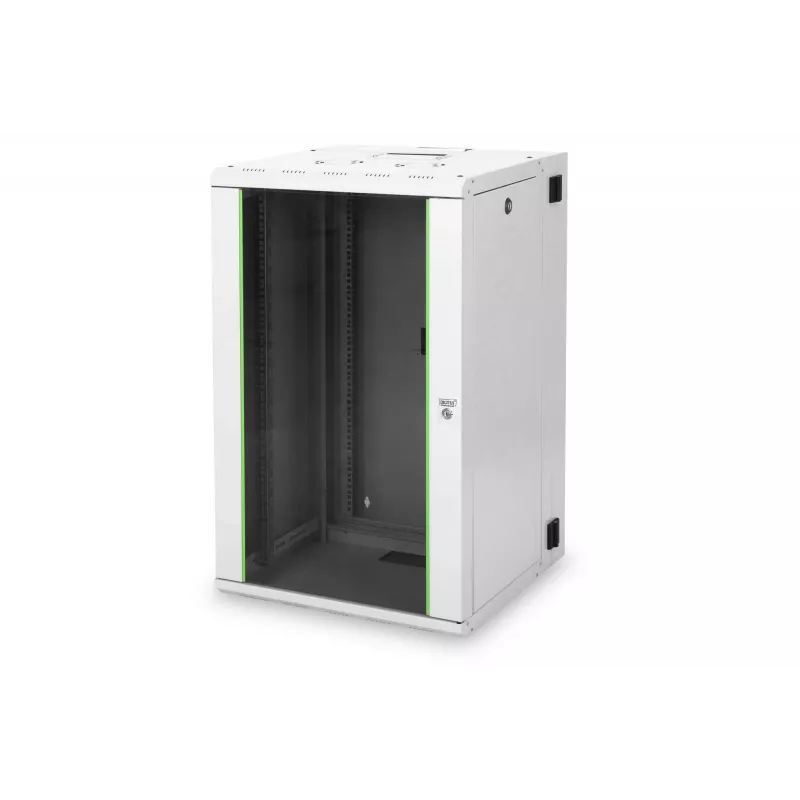

Part of the DIGITUS Unique Series, the DN-19 20-U-3 is engineered for high-density network environments. The cabinet features a robust steel construction with electrostatic powder coating in grey (RAL 7035), ensuring durability and a professional appearance. The front safety glass door with swing handle lock provides secure visibility, while the pivoting rear frame allows the entire rear section to swing open, granting full access for installation and maintenance. Removable and lockable side panels further enhance accessibility.

What stands out

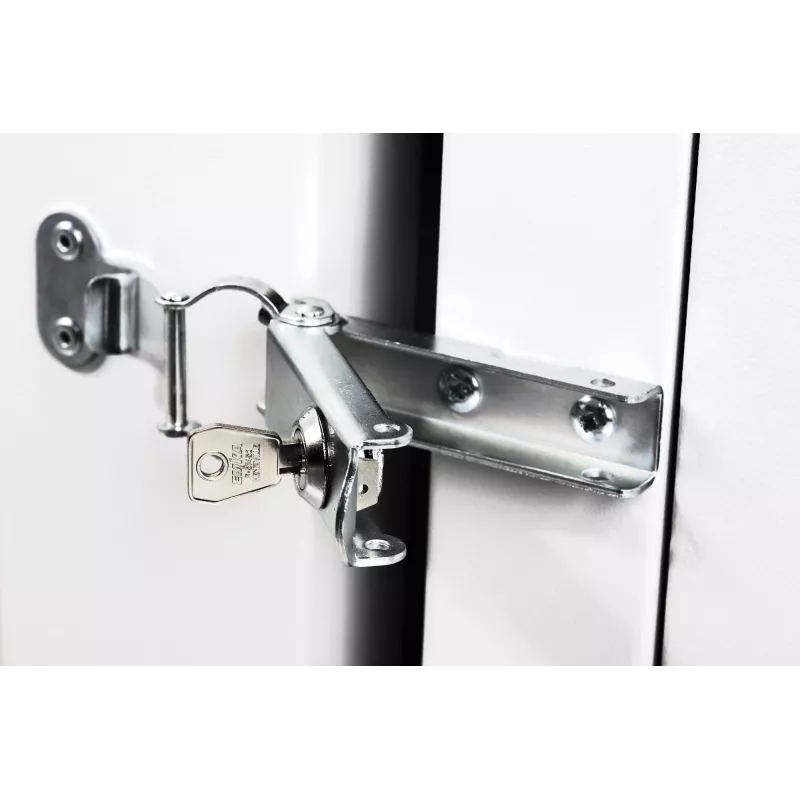

• Pivoting rear frame with cylinder lock for easy rear access
• Adjustable 19" profile rails with depth adjustment for versatile equipment mounting
• Top and bottom brush strips for clean cable entry and airflow
• Removable and lockable side panels and front door
• Pre-cut knockout for optional fan module installation

Technical details

• Rack capacity: 20U
• External dimensions (HxWxD): 998 x 600 x 600 mm
• Material: Steel sheet, up to 1.5 mm thick
• Colour: Grey (RAL 7035)
• Load capacity: 100 kg
• Protection rating: IP20
• Standards compliance: IEC 60297-2, DIN 41494-1, DIN 41494-7
• Mounting rails: 483 mm (19") profile rails, depth adjustable
• Cable entry: Top and bottom with brush strips, rear with knockout panels
• Ventilation: Passive ventilation openings

Our verdict

The DIGITUS Unique Series 20U cabinet is a smart choice for installers who need quick rear access in confined spaces. Its pivoting design and solid build quality make it a reliable backbone for structured cabling projects.
