Carcasa eléctrica Rittal PK 9514.050, IP66, 180×90×110 mm

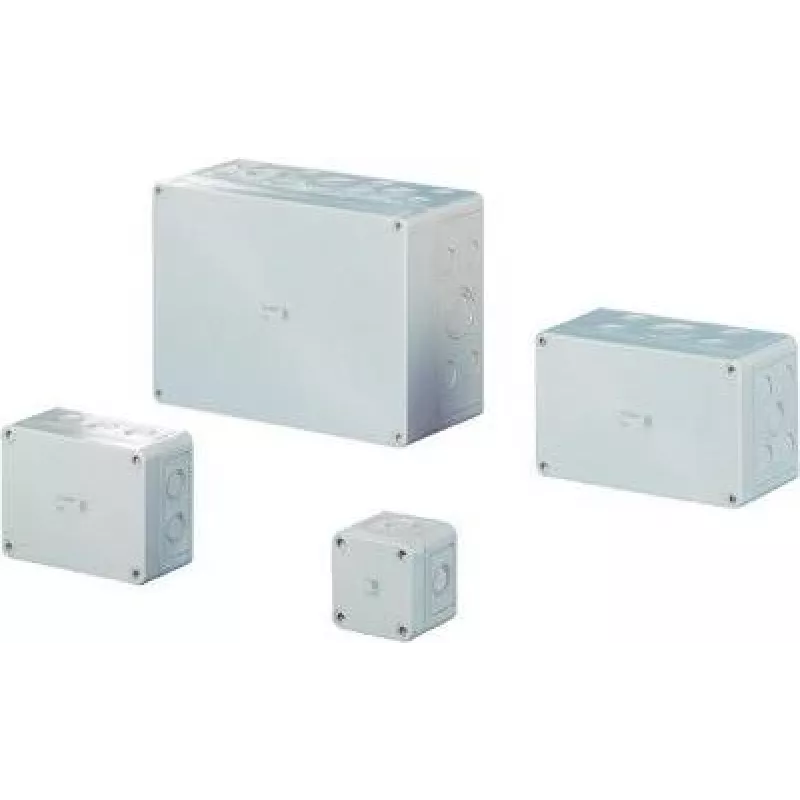

Rittal PK 9514.050 is a compact electrical enclosure designed to protect electrical and electronic components in demanding environments. Constructed from fibre-glass reinforced polycarbonate with a grey cover, the enclosure provides IP66 protection for dust-tight and water-resistant housing. Its external dimensions of approximately 180 mm (width) × 90 mm (depth) × 110 mm (height) make it suitable for small junctions, terminal blocks, control modules and instrumentation in both indoor and outdoor installations.

Advantages

The enclosure combines impact-resistant, fibre-glass reinforced polycarbonate construction with an IP66 rating to ensure reliable protection against dust and powerful water jets. Metric knockouts in the housing allow flexible cable entry and adaptation to different installation requirements without the need for additional machining. Its compact size supports space-efficient mounting while the grey cover provides a neutral appearance suitable for a wide range of technical and industrial environments.

Suitable for

• Protection of small junctions and terminal blocks
• Housing of control modules and small PLCs
• Enclosure for sensors, transmitters and small instrumentation
• Indoor and outdoor installations requiring IP66-rated protection

Key specifications

• Material: fibre-glass reinforced polycarbonate housing with grey cover
• Protection class: IP66 (dust-tight and protected against powerful water jets)
• External dimensions: 180 × 90 × 110 mm (width × depth × height)
• Cable entry: metric knockouts for flexible wiring
• Typical applications: junctions, terminal blocks, small control electronics

How to use

Mount the enclosure on a suitable flat surface or DIN-rail adapter according to the installation requirements and local regulations. Open the cover to install terminal blocks, connectors or small control modules inside the housing. Use the provided metric knockouts to create cable entries; remove only the required knockout sections to maintain protection level. After wiring, check internal component spacing for heat dissipation and secure the cover to restore the IP66 seal.

Recommendations

For best performance, avoid prolonged exposure to direct UV when possible and ensure knockouts are sealed around cable glands or conduit to maintain IP66 protection. Use appropriate cable glands and strain reliefs matched to the cable diameter and environmental conditions.
