KOPOS KEFZ 80/VDZ_KB set de cajas de derivación eléctricas con sierra de corona, IP68, negro

The KOPOS KEFZ 80/VDZ_KB stands apart from standard junction boxes by integrating a sealing compound and hole saw directly in the kit, enabling a permanent, waterproof cable termination without sourcing extra materials. Its compact 80 mm diameter and 55 mm depth make it suitable for tight spaces, while the screw-on lid and self-extinguishing polypropylene body deliver reliable protection in demanding environments.

Highlights

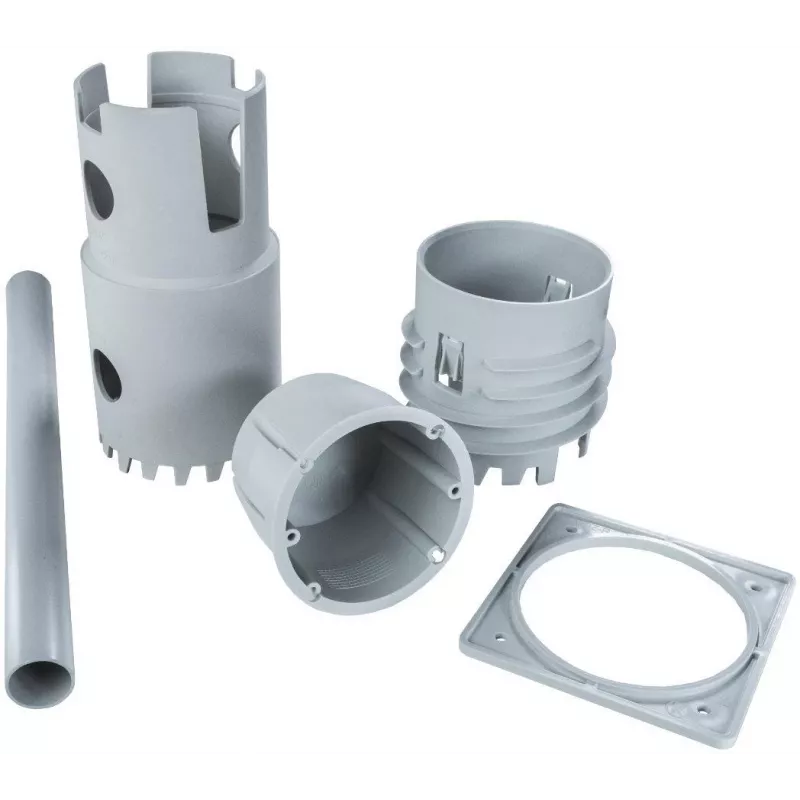

• Complete kit: box, two-component sealing compound, and hole saw for immediate installation
• IP68 protection when filled with resin or gel, suitable for underground and outdoor use
• Robust polypropylene construction: halogen-free, UV-resistant, and self-extinguishing
• Wide operating range from -30°C to +100°C, rated up to 1000V AC / 1500V DC
• User-defined cable entries (up to 4 recommended) for flexible wiring configurations

In daily use

Electricians and installers will appreciate the KEFZ 80/VDZ_KB for its straightforward workflow: drill entry holes with the included saw, position cables, secure the lid, and pour the sealing compound to create a durable, watertight seal. The black PP housing withstands water, oils, and common chemicals, making it ideal for direct burial, outdoor lighting, or indoor applications where moisture resistance is critical.

Full specifications

• Product type: Electrical termination box kit
• Outer diameter: 80 mm
• Depth: 55 mm
• Material: Polypropylene (PP)
• Colour: Black
• Ingress protection: IP68 (with sealing compound)
• Sealing method: Two-component resin/gel compound
• Included accessories: Sealing compound, hole saw (20 mm typical)
• Number of cable entries: User-defined, up to 4 recommended
• Operating temperature: -30°C to +100°C
• Rated voltage: Up to 1000V AC / 1500V DC
• Halogen-free: Yes
• UV resistance: Yes
• Flame retardancy: Self-extinguishing
• Chemical resistance: Resistant to water, oils, and common chemicals
• Mounting type: Surface mount, direct burial
• Lid fastening: Screw-on lid
• Certifications: CE, RoHS

Final note

For a reliable, all-in-one solution to electrical terminations in harsh conditions, the KOPOS KEFZ 80/VDZ_KB delivers proven performance and convenience in a single package.
