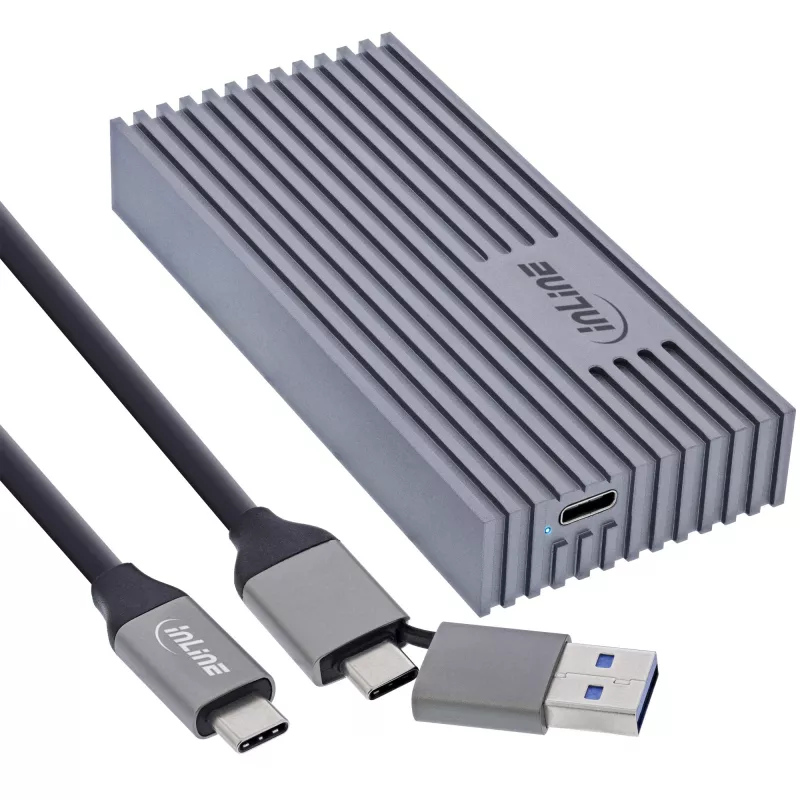

Carcasa externa USB4 InLine 00031J — USB-C a SSD M.2 NVMe, 40 Gb/s, aluminio

Maximum data rate of up to 40 Gb/s:Supports USB4 for ultra-fast transfer of large amounts of data in professional environments.
Full compatibility with Thunderbolt 3/4:Ideal for professional IT environments - can be flexibly combined with various systems and devices.
Tool-free assembly with comprehensive accessories:Includes everything for quick and stable installation - including screw set, cooling materials and USB-C combo cable.
Rugged aluminium housing with cooling fins:Effective passive cooling thanks to ribbed surface - suitable for continuous operation.
Universal use for M.2 NVMe SSDs:Supports various form factors (2230/2242/2260/2280) as well as single and double-sided SSDs up to 8 TB.

The InLine® USB4 enclosure for M.2 SSDs (NVMe) impresses with its high performance and universal applicability. With transfer rates of up to 40 Gb/s, it is ideal for demanding tasks such as fast data transfer, system migration or SSD diagnostics. Thanks to full compatibility with Thunderbolt 3/4 and all common USB-C standards, the enclosure can be easily integrated into existing system landscapes.

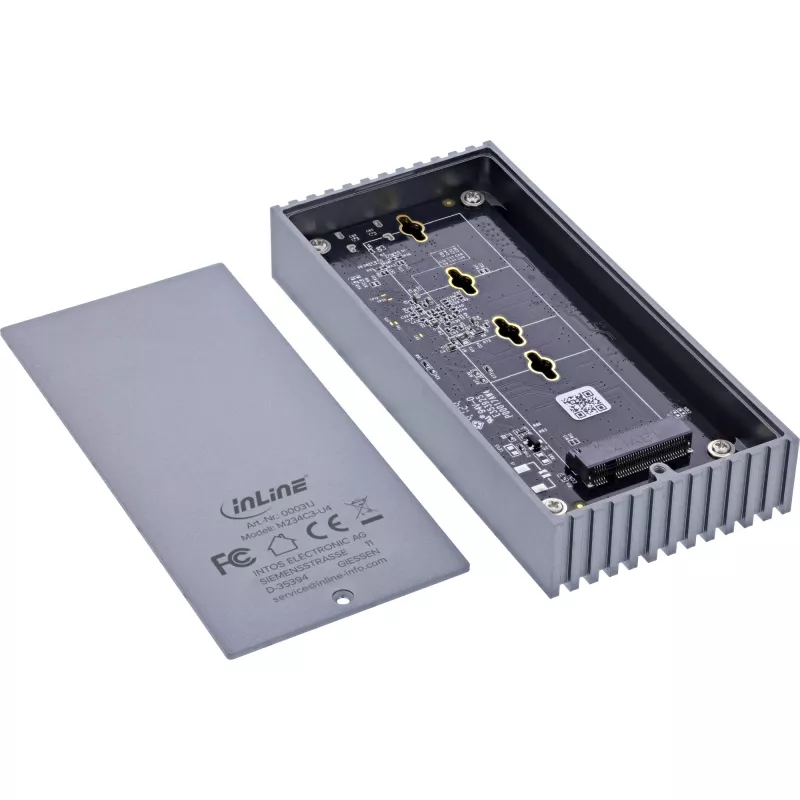

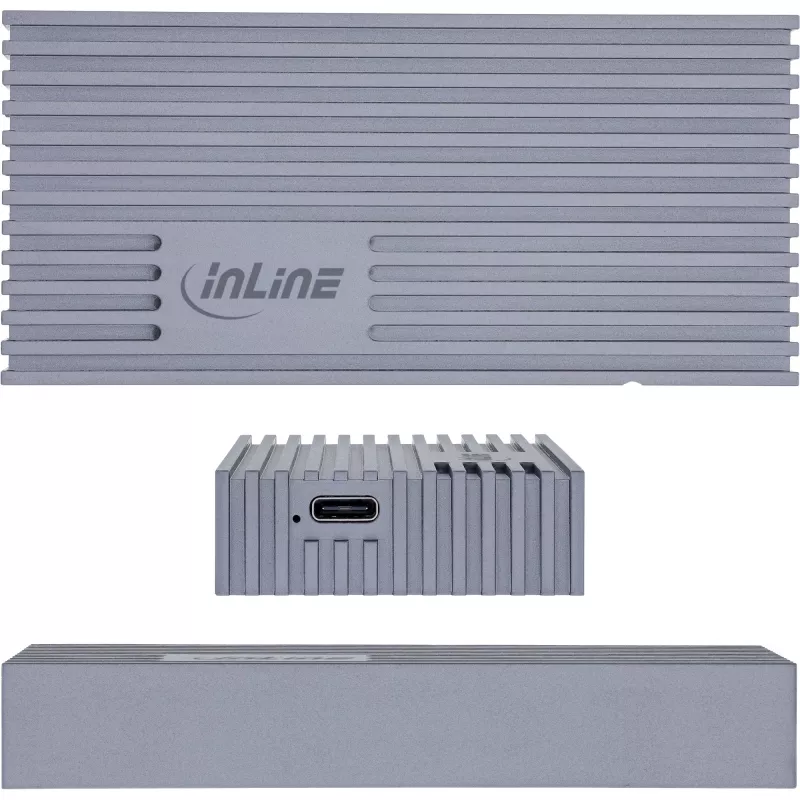

Made from robust, anodised aluminium with a ribbed surface, the enclosure ensures efficient heat dissipation - even during long-term use. Installation is straightforward and requires no tools. The scope of delivery includes a USB-C cable (USB-C to USB-C/USB-A), heat conducting plate, heat conducting pad and a screw set including the appropriate tools. SSDs in the formats 2230 to 2280 (M-Key), single and double-sided, with up to 8 TB capacity are supported.
A powerful tool for anyone who values performance, compatibility and a reliable data connection - whether in professional use or when working with large amounts of data on a daily basis.

Input interface: USB-C 4.0
Data transfer rate: 40 Gb/s
Compatibility: Thunderbolt 3/4, USB 3.2/3.1/3.0
Supported SSD sizes: 2230 / 2242 / 2260 / 2280
SSD type: NVMe, M-Key, single-sided and double-sided
Max. SSD height: 1.5 mm per side
Material: Aluminium alloy, anodised
Chip: ASM2464PD
Supported systems: Android / Linux / macOS / Windows
Operating temperature: 0 °C to +40 °C
Dimensions: 107 × 50 × 17 mm

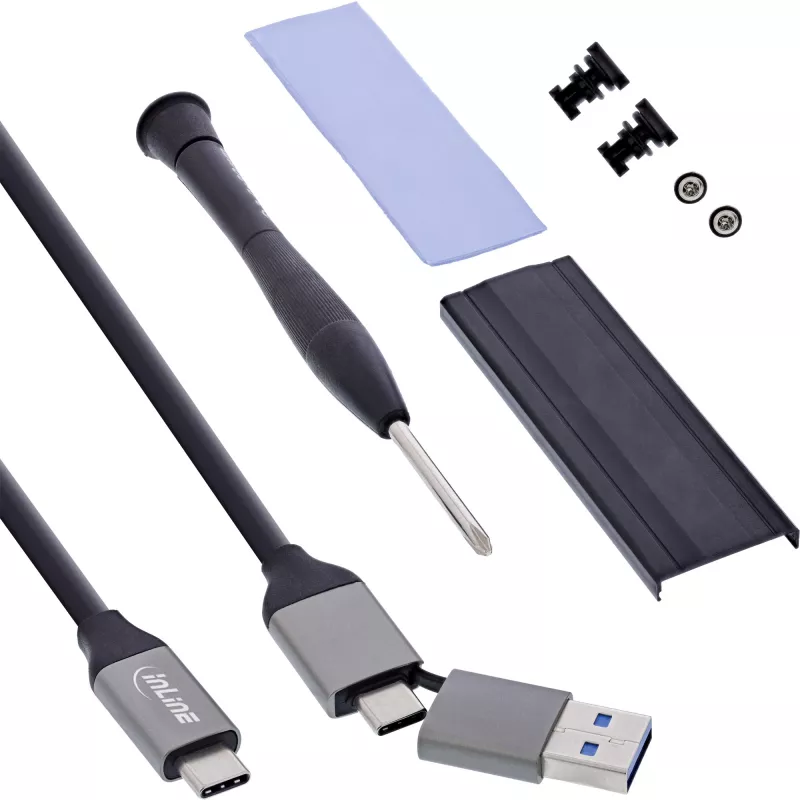

Scope of delivery:
1x InLine® USB4 enclosure, USB-C to M.2 SSD NVME, aluminium
1x USB-C to USB-C/USB-A cable 0.30 m
1x heat conduction plate
1x heat conduction pad
1x cross screwdriver
1x screw set (2 metal screws + 2 twist locks)
1x operating instructions (German/English)

InLine 00031J. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: M.2, Serial ATA, Maximum storage capacity: 8 TB. Data transfer rate: 40 Gbit/s. Product colour: Grey. USB connector type: USB Type-C

How to use

Open the aluminium enclosure according to the included instructions, insert a compatible M.2 NVMe SSD into the M.2 connector and secure it with the mounting screw. Close the enclosure and connect it to a host computer using a USB‑C cable that supports the required bandwidth. The host operating system should recognize the SSD as an external NVMe drive; format or partition the drive as needed before first use. For best performance, connect to a USB4-capable port with a cable rated for 40 Gb/s.

Recommendations

For sustained high transfer rates, use a high-quality USB‑C cable and a host port that supports USB4. Ensure the installed NVMe SSD has appropriate thermal characteristics and allow airflow around the aluminium enclosure to help dissipate heat during extended workloads. Regularly back up important data and verify compatibility with your operating system before transferring critical files.
