Carcasa para SSD DeLOCK USB 3.2 Gen 2 para PlayStation5 M.2 NVMe sin herramientas

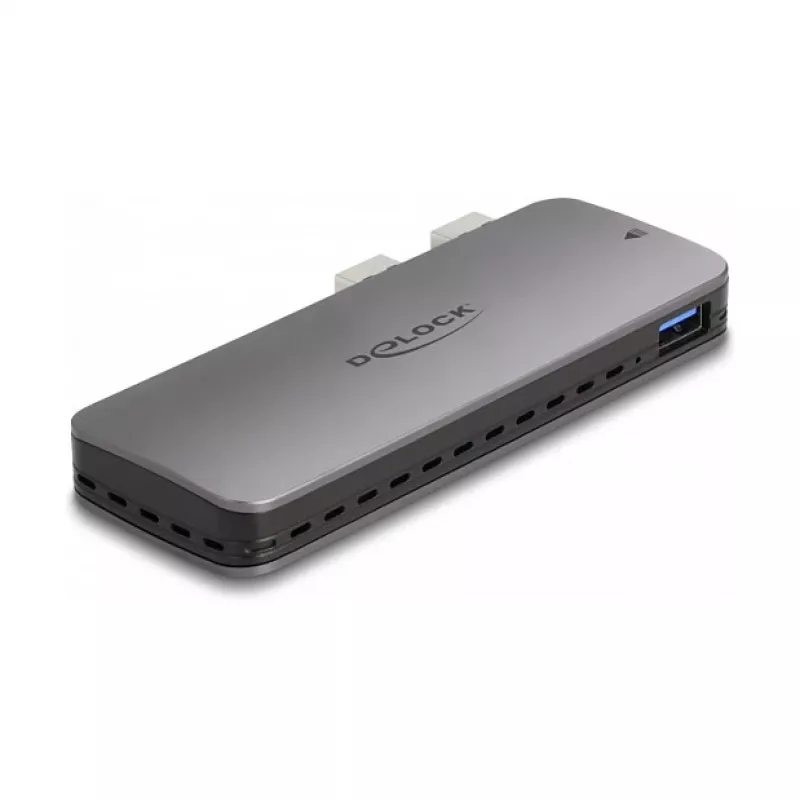

This DeLOCK enclosure allows installation of a single M.2 PCIe NVMe SSD in 2280, 2260 and 2242 sizes and connects directly to a PlayStation 5 using the two USB Type-A connectors. The robust metal housing with side air vents supports optimal temperature management for the SSD. The enclosure supports USB 3.2 Gen 2 (10 Gbit/s) data transfer and has a black finish.

Advantages

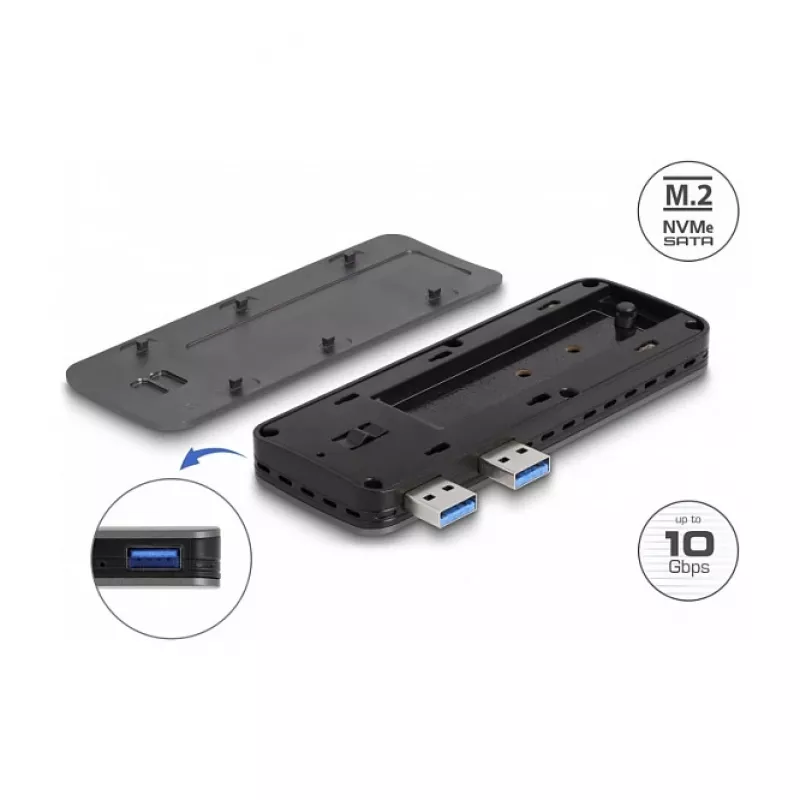

The enclosure offers a tool-free installation: the lid slides back with light pressure and the SSD is secured on the PCB with a rubber nipple, then the lid locks into place. An additional USB Type-A port is passed through from the PS5 so the enclosure’s port can be used for extra USB devices or to charge a controller. The included USB extension cable enables connection to a PlayStation 4 for copying games to the M.2 SSD and can also be used with a PC or laptop.

Suitable for

• Expanding PS5 storage with an M.2 NVMe SSD (2280 / 2260 / 2242)
• Copying games from a PS4 to an M.2 SSD for use on PS5
• Connecting an external NVMe SSD to a PC or laptop via USB 3.2 Gen 2

Key specifications

• Supported SSD form factors: M.2 2280, 2260, 2242

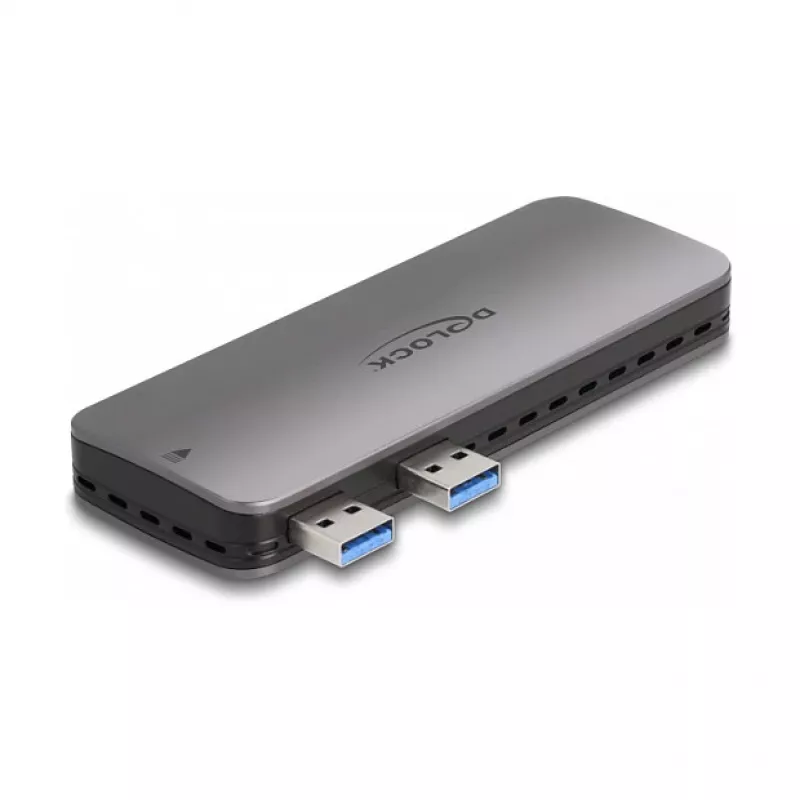

• Interface to host: USB 3.2 Gen 2 (USB 3.1 Gen 2) via two USB Type-A connectors to PS5
• Enclosure material: metal with side air vents
• Tool-free SSD installation
• Additional forwarded USB Type-A port

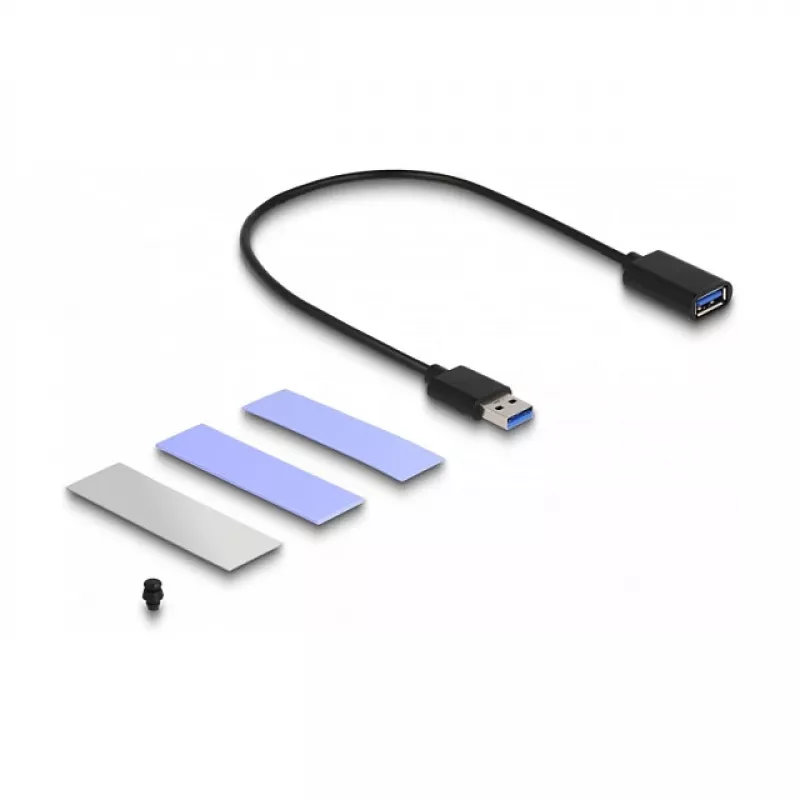

• Includes USB extension cable for PS4, PC and laptop connection
• Colour: Black

How to use

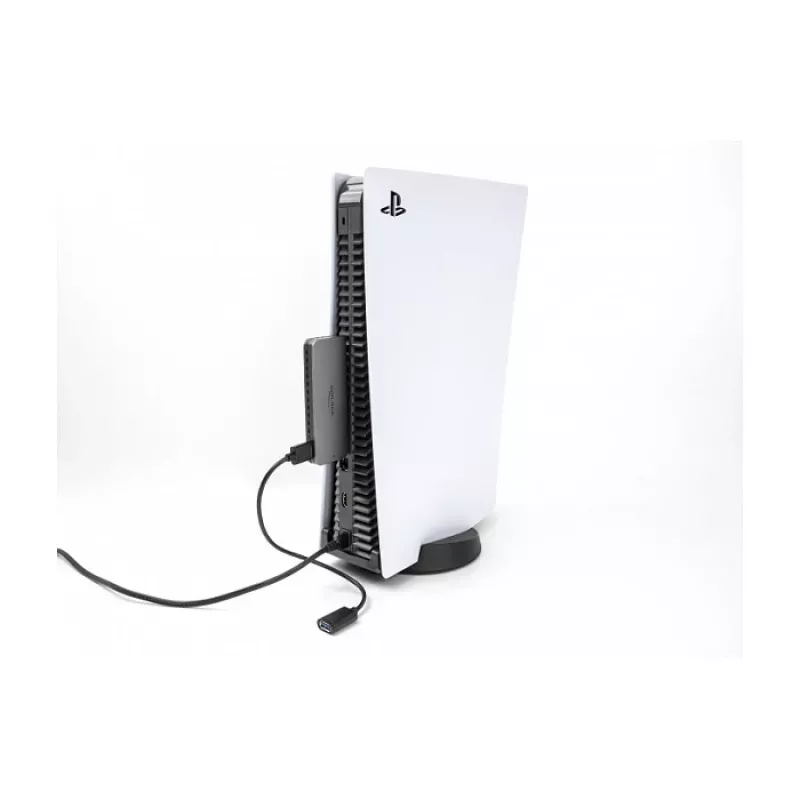

Slide the enclosure lid backwards with light pressure, place the M.2 PCIe NVMe SSD onto the PCB and secure it with the integrated rubber nipple, then reattach the lid until it locks. Connect the enclosure to the PS5 using the two USB Type-A connectors; use the enclosure’s forwarded USB Type-A port to attach additional USB devices or to charge a controller. To copy games from a PS4, connect the enclosure with the supplied extension cable to the PS4 and follow the console’s transfer procedures. The enclosure can also be connected to a PC or laptop via the extension cable for file transfers.

Recommendations

Use an M.2 PCIe NVMe SSD in the supported sizes (2242/2260/2280) and ensure the SSD firmware is up to date. Make sure the console or computer is powered off or follows the manufacturer’s recommended procedures when connecting or disconnecting the enclosure. Allow airflow around the metal housing to support cooling during extended use.
