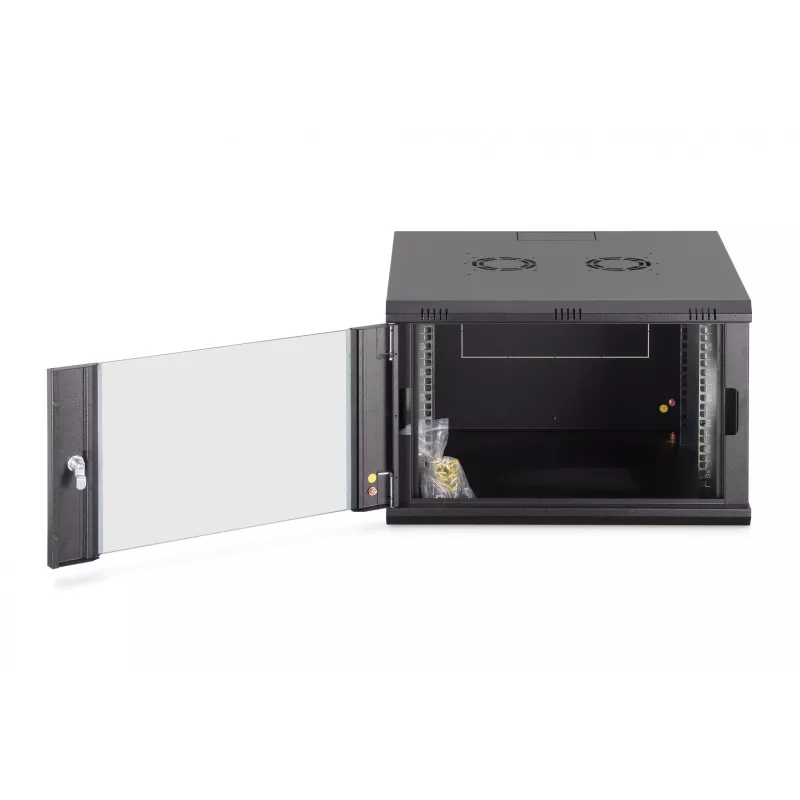

Carcasa rack de pared de 19" DIGITUS Dynamic-N DN-37103 — 7U, 600x600 mm, IP20, sin montar, negro

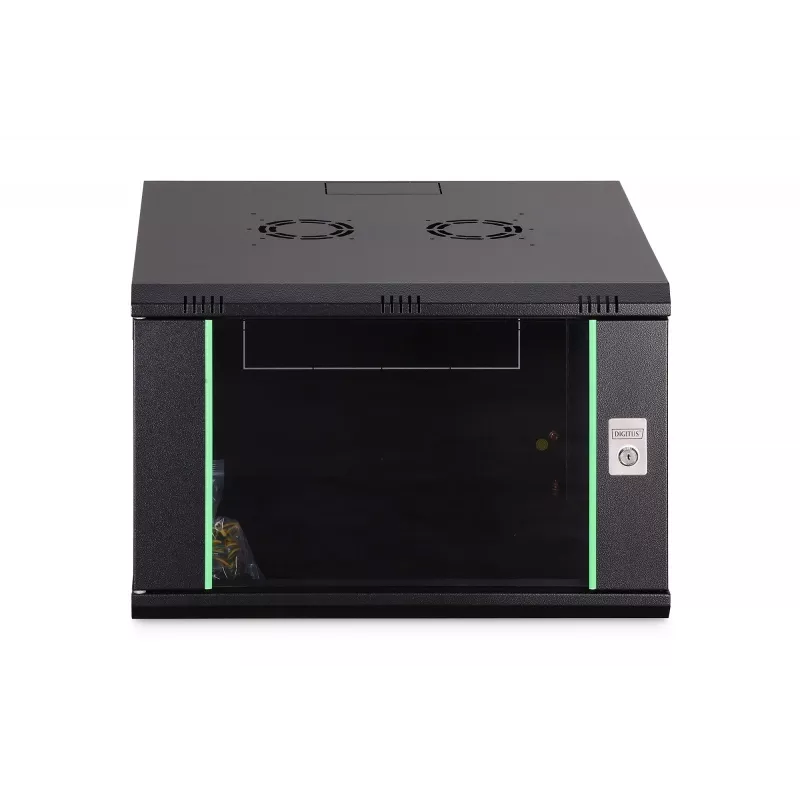

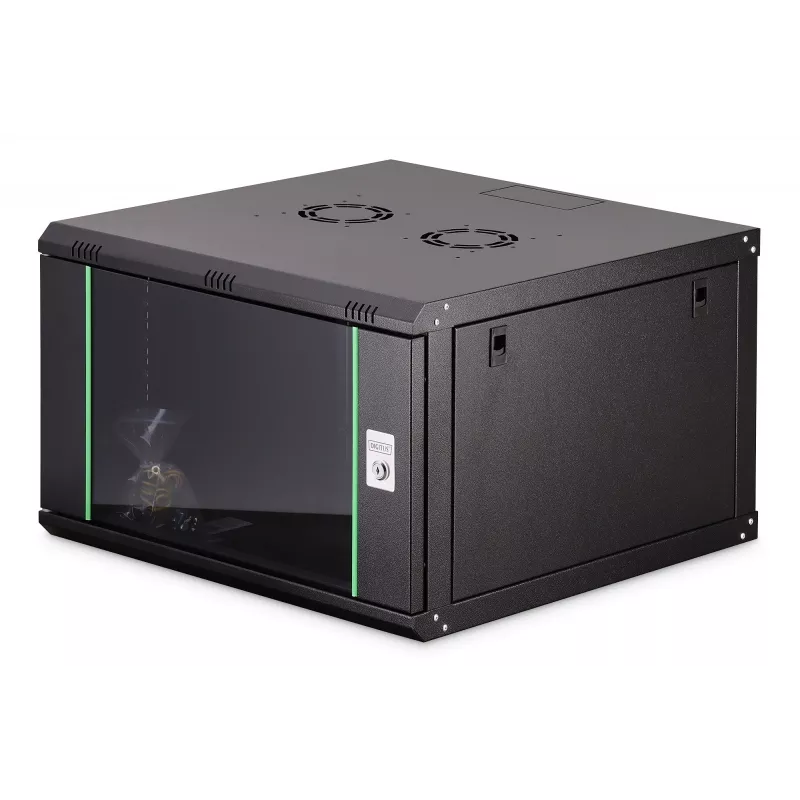

DIGITUS Dynamic-N DN-37103 is a wall-mounted 19" rack cabinet with 7U of usable rack space, designed for mounting network and telecom equipment in offices, server rooms and technical closets. The enclosure measures 600 x 600 mm (WxD), has a black powder-coated steel body and a lockable safety glass front door. It is rated IP20, supports up to 60 kg of installed equipment and is supplied unassembled to reduce transport volume. Adjustable 19" profile rails are fitted at both the front and rear and the roof, rear and base include pre-punched cable entry points. The cabinet also provides ventilation slots and mounting provisions for an optional fan element.

Advantages

The Dynamic-N wall-mounted cabinet combines a compact footprint with a robust steel construction and a lockable glass door for controlled access. Galvanized, depth-adjustable 19" profile rails marked with height units allow flexible installation of patch panels, switches and routers. Pre-punched cable entries and provisions for fan installation simplify cabling and ventilation, while removable side panels and doors improve accessibility during installation and maintenance. Supplied unassembled, the cabinet can be transported and stored efficiently.

Suitable for

• Patch panels and horizontal cabling in small office or branch installations
• Compact network switches, routers and firewall appliances up to 7U total height
• Telecom termination points and structured cabling closets
• Wall-mounted installations where floor space is limited

When it may not be suitable

The cabinet is designed for light to medium network equipment with a maximum load of 60 kg and an internal installation depth of approximately 369–470 mm; it is not suitable for heavy server hardware or large, deep appliances that exceed these limits. With an IP20 rating, the enclosure is intended for indoor, dust-protected environments and does not provide protection against water or outdoor conditions.

Key specifications

• Rack capacity: 7U
• External width x depth: 600 x 600 mm
• External height: 385 mm
• Maximum static load: 60 kg
• Rated protection class: IP20
• Material: powder-coated sheet steel with safety glass front
• Weight (unassembled): 17.6 kg

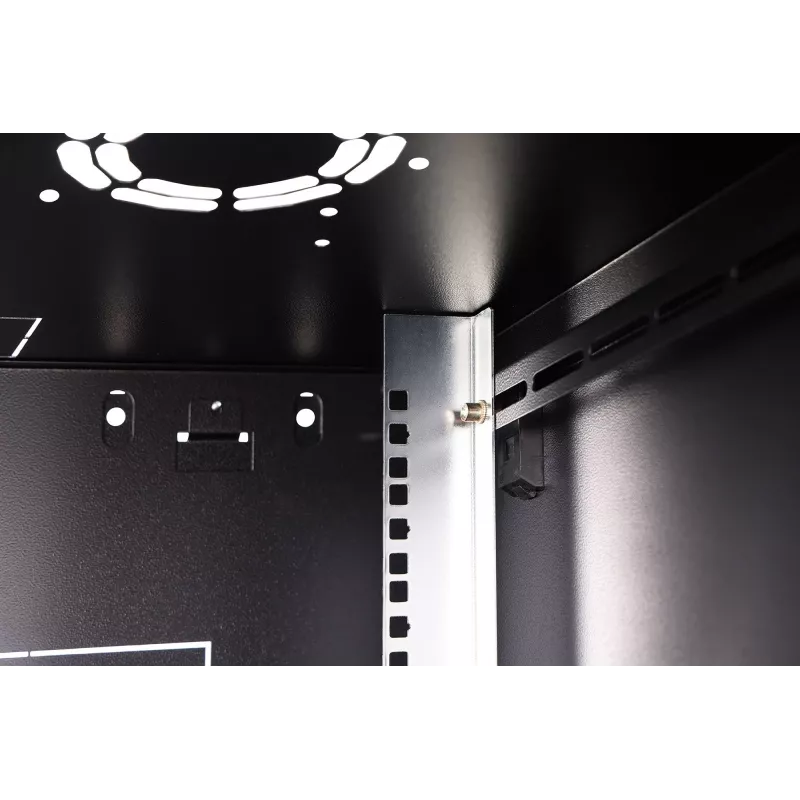

• Front and rear 19" profile rails, galvanized and depth-adjustable

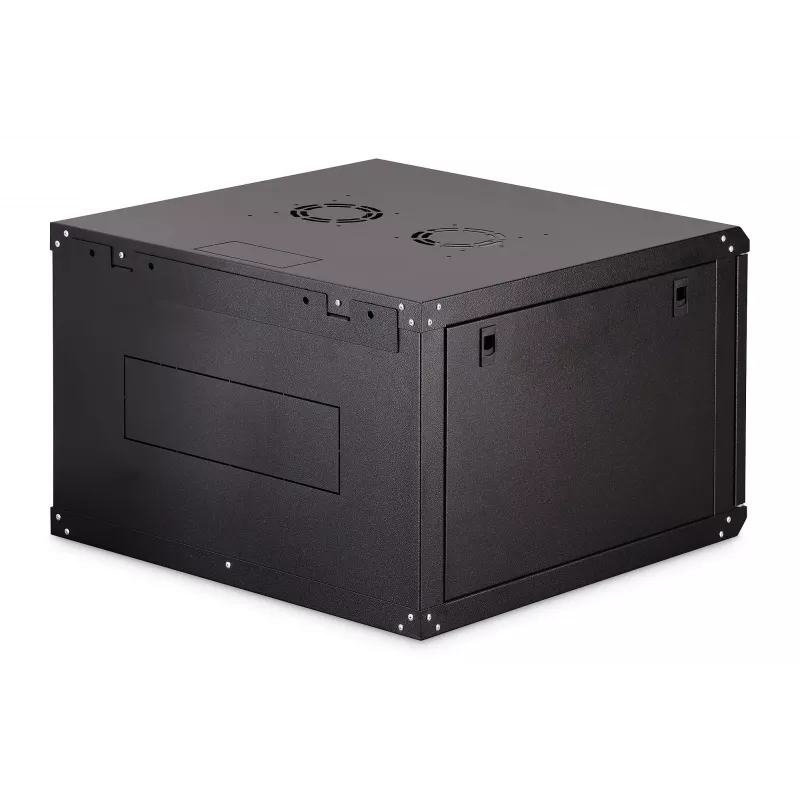

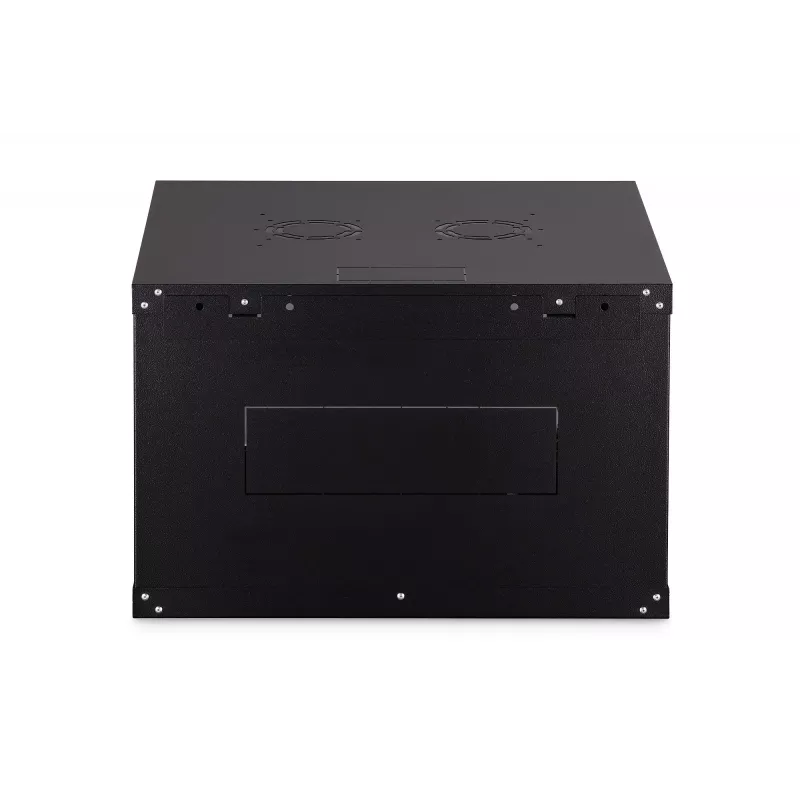

• Pre-punched cable entry at roof, rear and base
• Ventilation slots and fan mounting provision

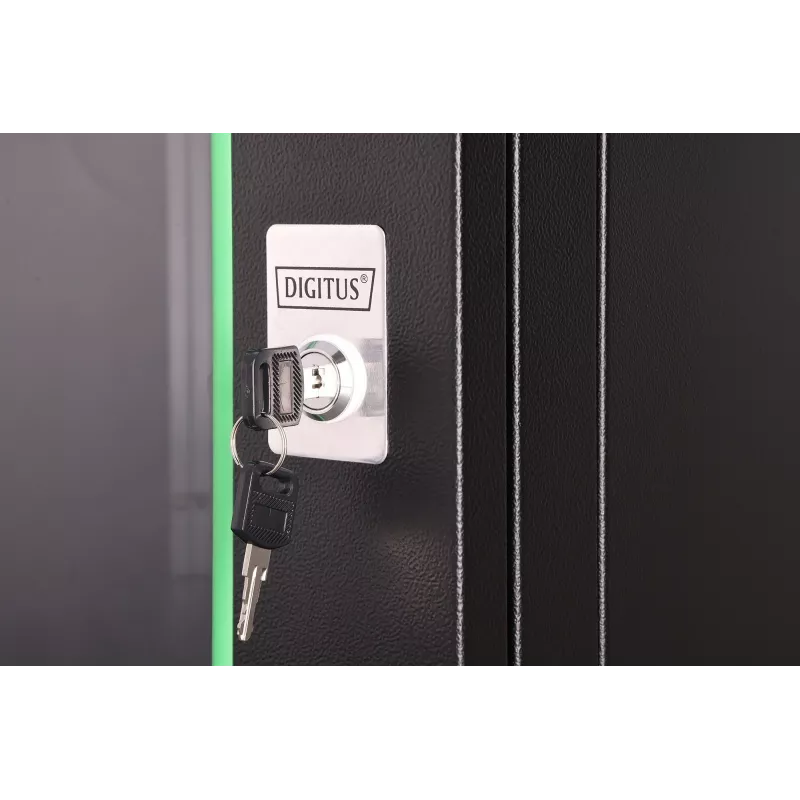

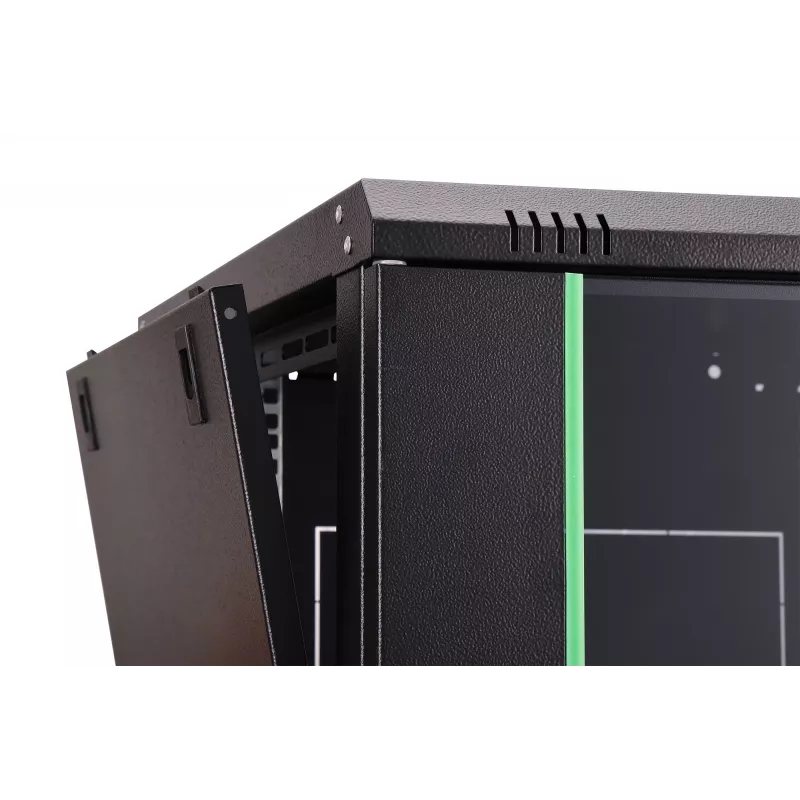

• Lockable front door and removable side panels/doors

How to use

Mount the supplied wall plate to a suitably rated load-bearing wall following the included installation instructions, then hang and secure the cabinet body to the plate. Fit and adjust the front and rear 19" profile rails to the required depth and mount equipment using standard 19" rack screws. Route cables through the pre-punched entries at the roof, rear or base and use the built-in cable management features to organise runs. Install optional fan modules in the roof if active ventilation is required. After installation, lock the front door to restrict physical access.

What to consider before purchase

• Required internal installation depth of your equipment (standard maximum installation depth 369–470 mm)
• Total weight of installed devices should not exceed 60 kg
• Indoor use only — IP20 rating does not protect against water or outdoor exposure

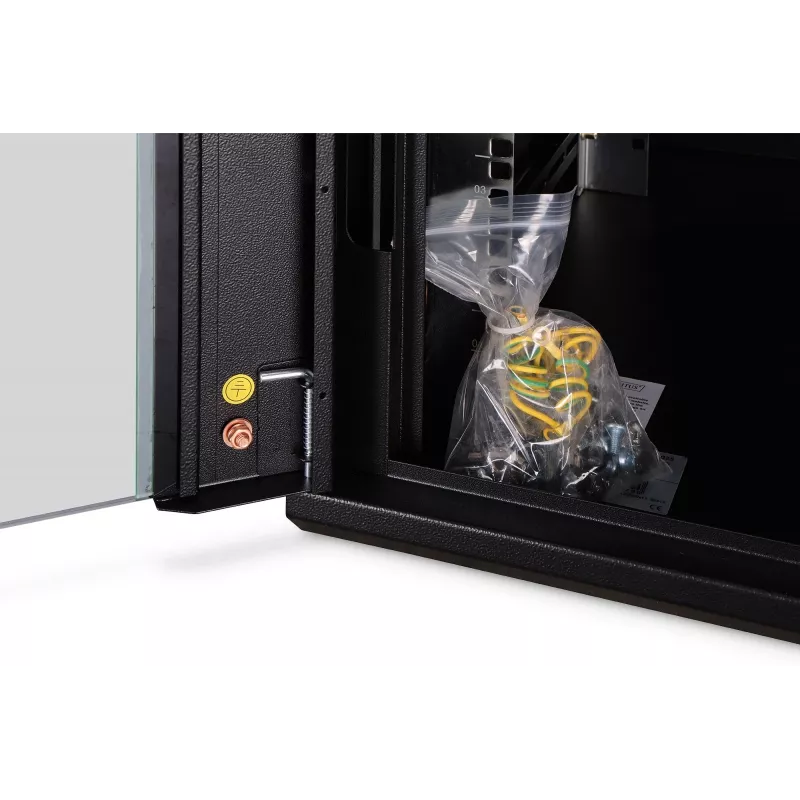

• Assembly required on delivery; ensure time and basic tools are available for installation

Recommendations

For stable operation and safe mounting, fasten the supplied wall mounting plate to a load-bearing surface and distribute equipment weight evenly across the 19" rails. Use cable ties and cable management to avoid obstructing ventilation slots, and consider adding a fan module if several active devices will be installed in a confined space.
