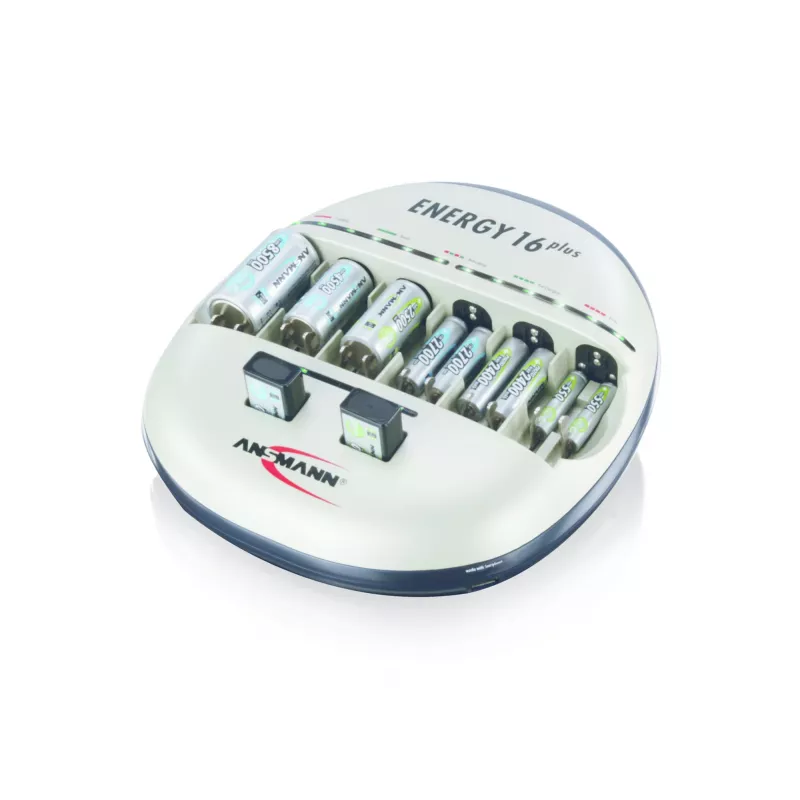

Cargador de baterías para interior Ansmann Energy 16+

The Ansmann Energy 16+ is an indoor battery charger compatible with 9V, AA, AAA, C and D NiMH/NiCd rechargeable cells. It supports charging up to 16 batteries simultaneously, accepts an input voltage of 100–240 V at 50/60 Hz and features microprocessor-controlled fast charging with individual supervision of each battery position.

Advantages

The charger performs a quick capacity test of inserted cells in approximately 10 seconds and shows results via three LEDs (green: >80% nominal capacity, orange: 25–80%, red: <25%). It offers auto-diagnosis with automatic pre-charging or refreshing of tired cells, battery-full detection (-dV) and automatic switch to trickle charge. Additional protections include multiple overcharge safeguards, faulty cell and alkaline battery detection, reverse polarity protection and worldwide input compatibility. Handling is fully automatic with clear indicators and controls for each position and a 3-year warranty.

Suitable for

• Charging NiMH and NiCd 9V, AA, AAA, C and D rechargeable batteries
• Household and office use where multiple battery sizes are needed
• Users who require capacity quick tests and individual cell supervision

Key specifications

• Brand: ANSMANN
• Model: Energy 16+
• MPN: 1001-0004
• EAN: 5711783800804
• Type: Indoor battery charger
• Number of batteries supported: 16
• Compatible battery sizes: 9V, AA, AAA, C, D
• Input voltage/frequency: 100–240 V, 50/60 Hz
• Colour: Black, Silver
• Controls: Microprocessor-controlled charging, individual supervision per slot
• Warranty: 3 years

How to use

Insert only NiMH or NiCd rechargeable batteries into the appropriate slots according to their size and polarity. The charger will automatically run a quick capacity test and, if required, start pre-charging or a refresh cycle before fast charging begins. Charging status and capacity indications are shown by LEDs for each position; the unit will switch to trickle charge when cells are full. Do not attempt to charge alkaline or non-rechargeable cells.

Recommendations

Use the Ansmann Energy 16+ indoors on a stable, dry surface and connect it to a compatible mains supply (100–240 V, 50/60 Hz). Remove batteries that are detected as faulty or non-rechargeable. For best long-term battery performance, follow manufacturer recommendations for the specific rechargeable cells you use and store charged batteries in a cool, dry place.
