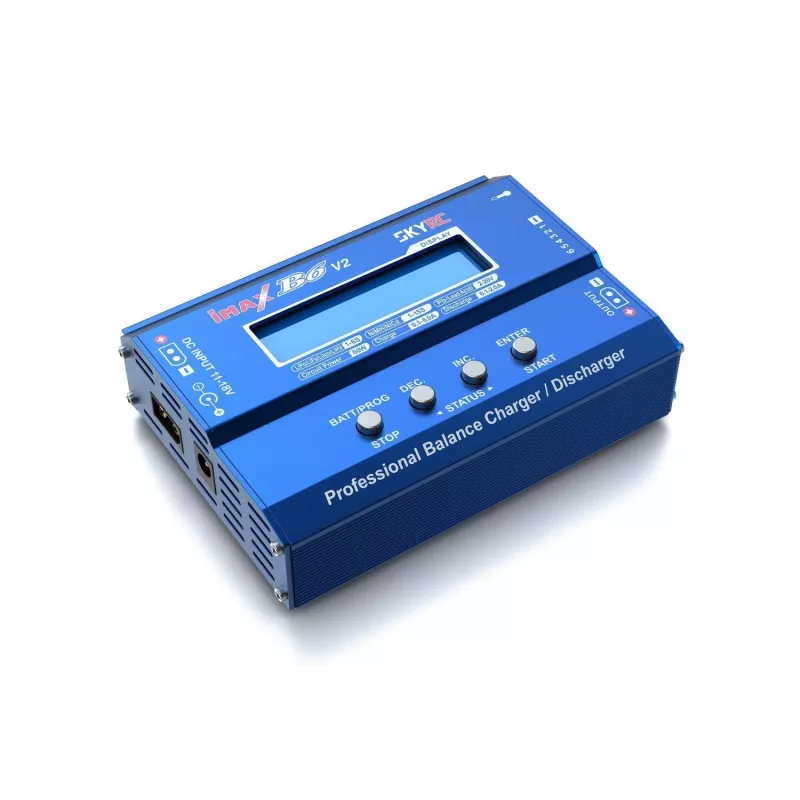

Cargador de baterías SkyRC SK-100161

SkyRC SK-100161 (iMax B6 V2) is a compact, microprocessor-controlled battery charger and DC/DC converter designed for RC hobbyists and general battery maintenance. It supports most mainstream battery chemistries including LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCd and Pb, offers a DC input range of 5–26 V and delivers up to 60 W power with maximum charge current up to 6 A. The unit also provides dedicated support for DJI Mavic/Inspire batteries with up to 4 A charge current and includes safety features such as thermal cutoff when used with an optional temperature sensor.

Advantages

The SkyRC SK-100161 combines charging, discharging and DC/DC conversion in a single compact device, providing up to 60 W output from a wide 5–26 V DC input. Its ARM Cortex-M3 microcontroller improves processing speed and anti-interference capability. The charger displays battery icon and real-time charge/discharge percentage for intuitive monitoring, includes AGM and cold-charge modes for lead-acid batteries, and delivers higher charge power (about 20% more) compared with the previous B6 model.

Suitable for

• Charging LiPo / Li-Ion / LiHV / LiFe cells
• Charging NiMH and NiCd batteries for RC transmitters and receivers
• Maintaining lead‑acid (Pb) and AGM batteries, including cold-charge situations
• Charging DJI Mavic and Inspire flight batteries (up to 4 A)
• Powering small DC field accessories (tire warmers, PIT lights) via DC/DC output

Key specifications

• Input voltage: 5–26 V DC
• Maximum integrated power: 60 W
• Maximum charge current: 6 A (general); up to 4 A for DJI Mavic/Inspire
• Supported chemistries: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCd, Pb (AGM supported)
• Processor: ARM Cortex-M3 32-bit microcontroller
• Safety features: thermal cutoff (requires optional temperature sensor cable SK-600040-01)
• Certifications: CE, FCC (as per manufacturer statements)

How to use

Connect the charger to a suitable 5–26 V DC power source and attach the battery following the correct polarity and connector type. Select the appropriate battery chemistry and charging profile on the charger, set the desired charge current (max 6 A, or 4 A for supported DJI batteries), and start the charge cycle. For lead-acid batteries or low-temperature charging, choose the AGM or Cold Charge mode. To enable thermal cutoff protection, attach the optional temperature sensor to the battery and plug it into the charger.

Recommendations

Always verify battery type, cell count and connector polarity before charging. Use a power supply that matches the charger's input range and ensure the optional temperature sensor (SK-600040-01) is used when you require thermal cutoff protection. Follow local regulations and manufacturer safety guidance when charging and storing batteries.
